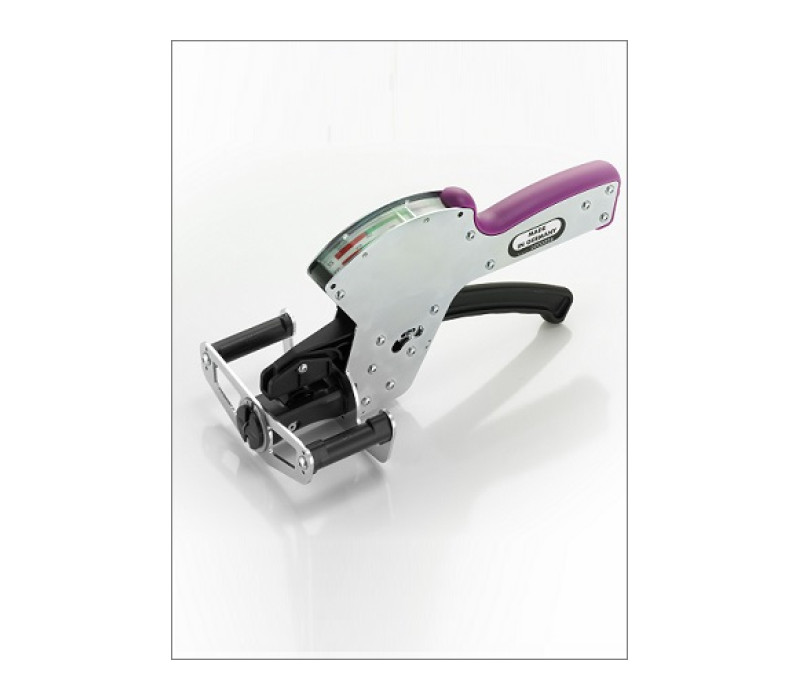

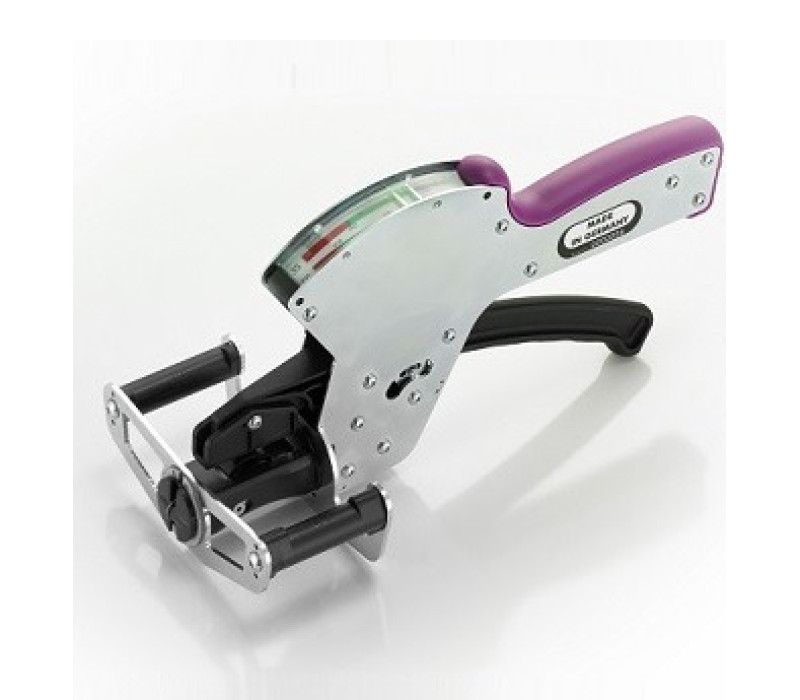

STF-3550 Strap Tension Meter

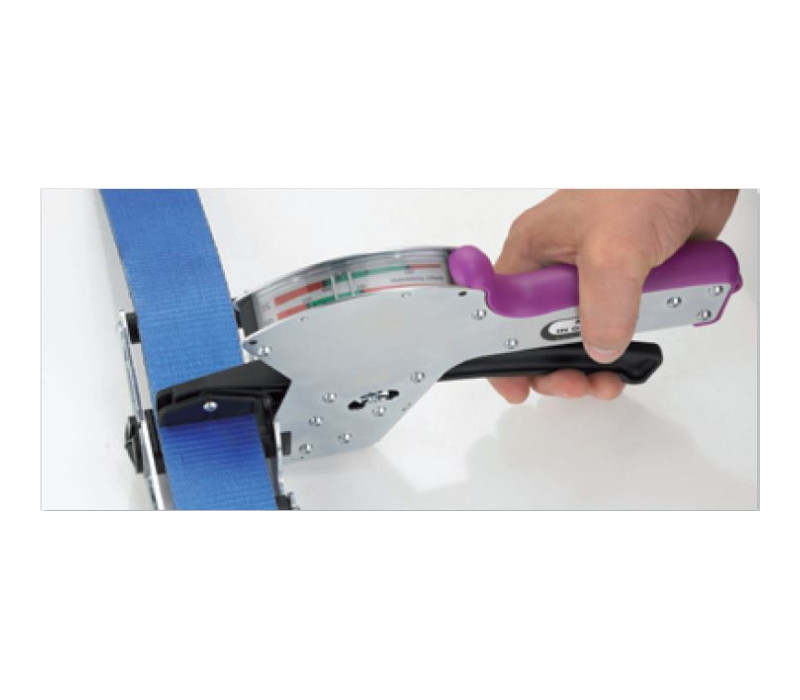

Strap Tension Meter to measure the tension of 35 mm or 50 mm wide lashing straps.
It meets the requirements of:
VDI Guideline 2700
Securing cargo on road vehicles
DIN EN 12195-1
Calculating the lashing forces
DIN EN 12195-2
Lashing straps made from synthetic fibers
Certified by
TUL-LOG 01-2012

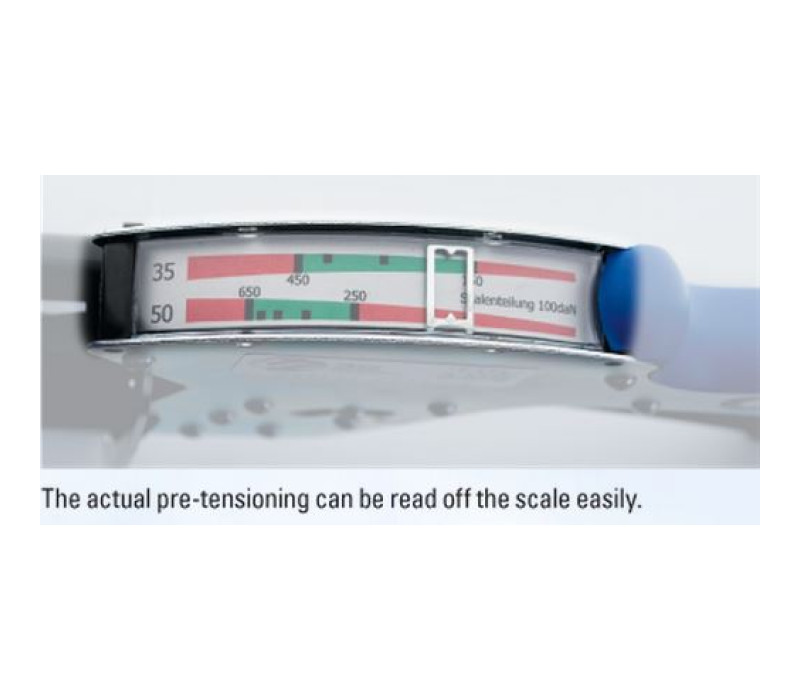

- Scale values at straps width 35 mm:
150 daN, 250 daN, 350 daN, 450 daN - Scale values at straps width 50 mm:
250 daN, 350 daN, 450 daN,550 daN, 650 daN - Suitable for lashing with a strap width of 35 mm or 50 mm.
- Easy handling, quick to use
- STF-3550 Strap Tension Meter

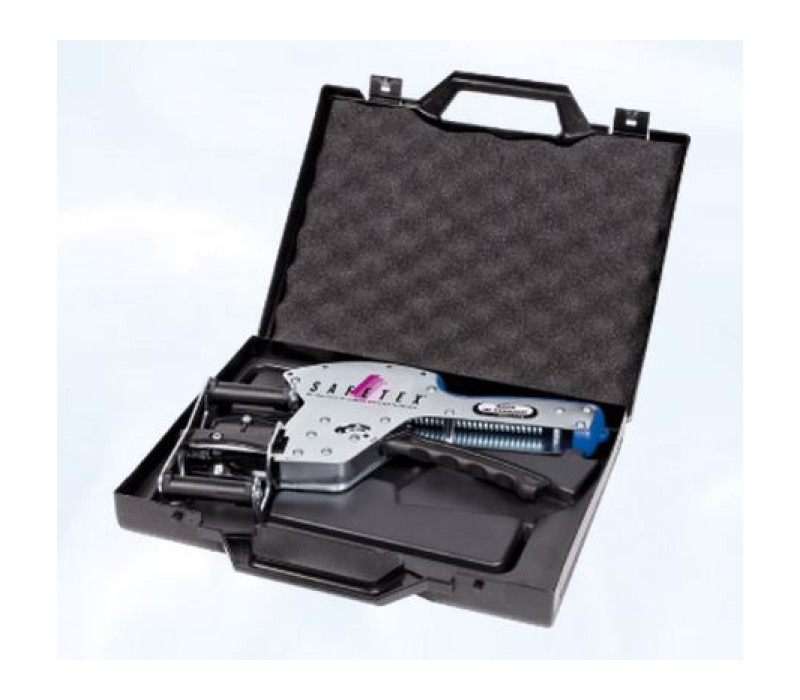

- Protection and storage case
- Manual
- Protection and storage case
- Manual
| For lashes with width: | 35mm & 50mm |
| Meets requirements | VDI Guideline 2700, DIN EN 12195-1, DIN EN 12195-2 |
| Certified by | TUL-LOG 01-2012 |
| Scale values at straps width 35 mm | 150 daN, 250 daN, 350 daN, 450 daN |
| Scale values at straps width 50 mm | 250 daN, 350 daN, 450 daN,550 daN, 650 daN |
| Weight | 1,43 kg |
