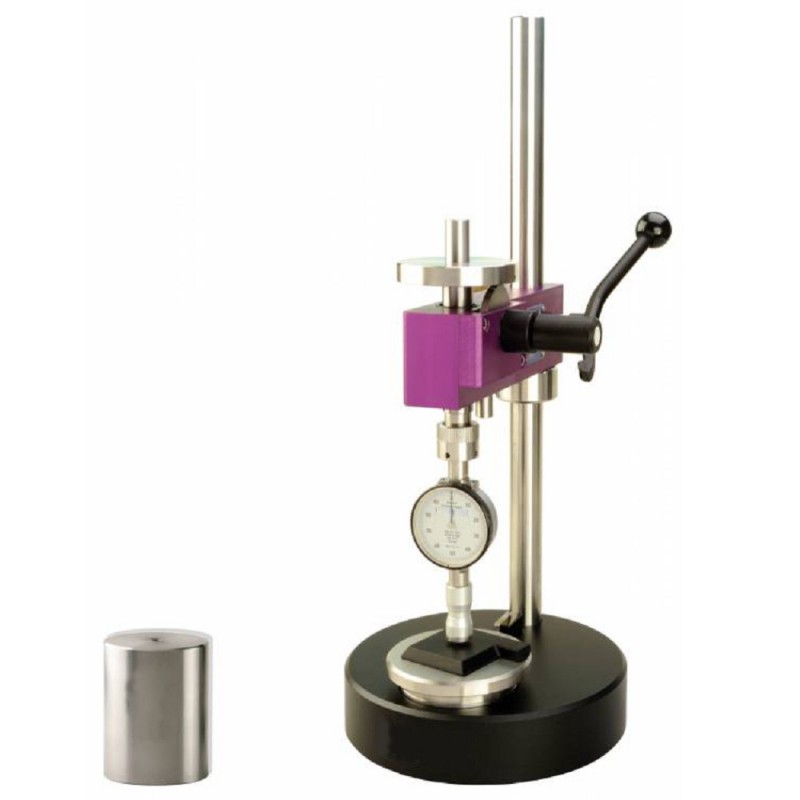

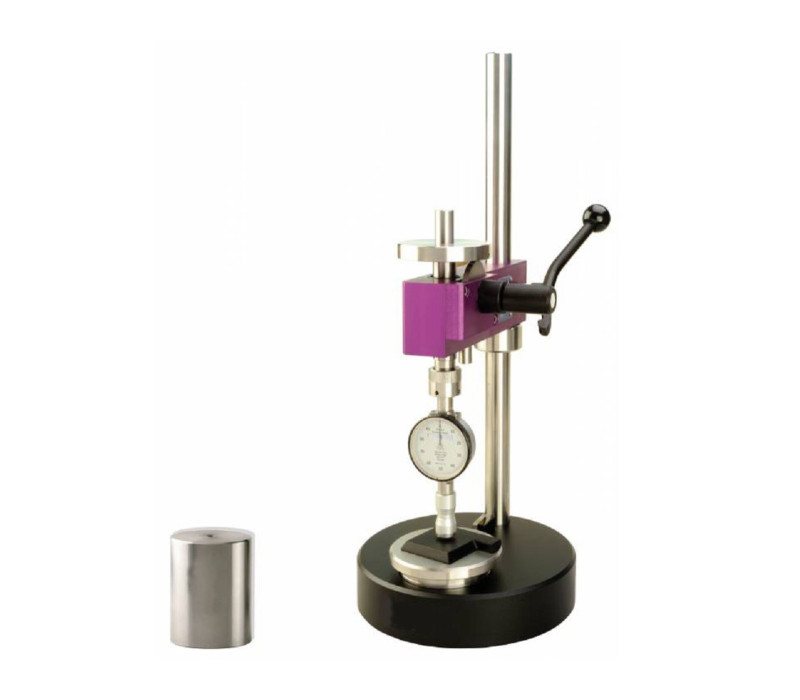

OS-300-2 Durometer Test Stand
The OS-300-2 Durometer test stand enables accurate and repeatable Durometer measurements. The essential advantage of this test stand is that subjective test errors, caused by differing load application forces or non-vertical application of the durometer to the test piece, are ruled out.
The OS-300-2 durometer test stand works on the constant load principle. To conduct hardness measurements, the product sample is positioned on the support table. The support table is suitable for small and big samples. Lower the durometer shock-free by use of the manually operated lever. All measurement values are shown directly on the analogue durometer.
The durometer is made of rugged and lightweight aluminum and its height can easily be adjusted. The integrated crash ring on the column prevents crashes between the durometer and the support table.
- Accurate measuring results with constant load principle
- Shock free lowering & integrated crash ring
- Rugged and light weighed aluminum housing
- Suited for small and big sample sizes
- Durometer weight shore D optional available
- Meets the requirements of international norms: DIN 53505, ISO 868, ISO 7619, ASTM D 2240

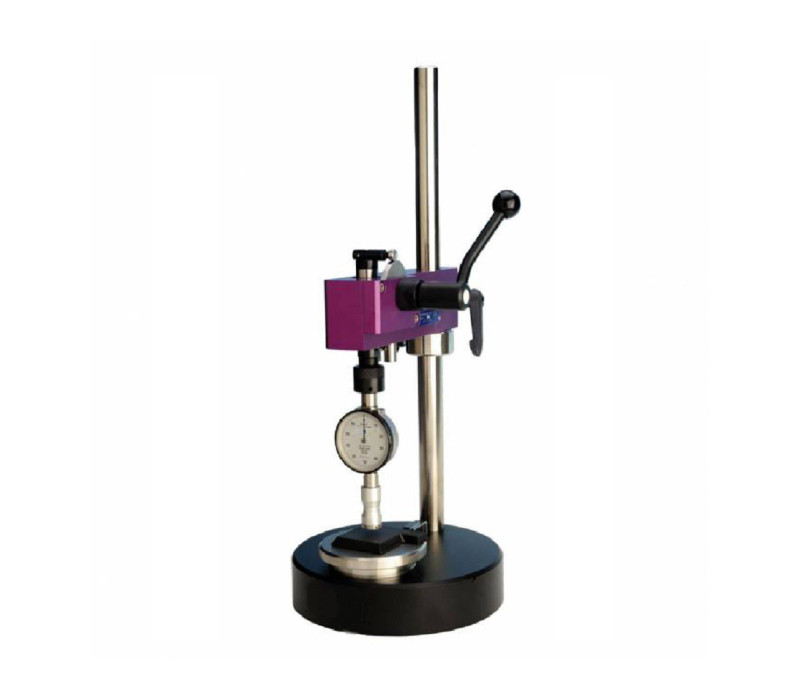

OS-300-2-OO Durometer test stand for Shore OO Durometers
- For hardness measurements according to durometer type OO
More details
DD-300 Digital Precision Durometer
- Highly accurate and repetitive
- Timer function to take measurement after (0-15) seconds.
- Conform to DIN ISO 7619-1, ISO 868, ISO 7619-1 and ASTM D 2240
- No internal friction due to precision engineered bearing system for internally moving parts.
More details
| Extension: | 115 mm |
| Diameter support table: | 98 mm |
| Maximum sample thickness: | 180 mm |
| Material: | Rugged aluminum design |
| Weight (net): | 16.4 kg |
| International standards: | DIN 53505, ISO 868, ISO 7619, ASTM D 2240 |
| Durometer types: | A, AO, D, B, C, DO, O |
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
