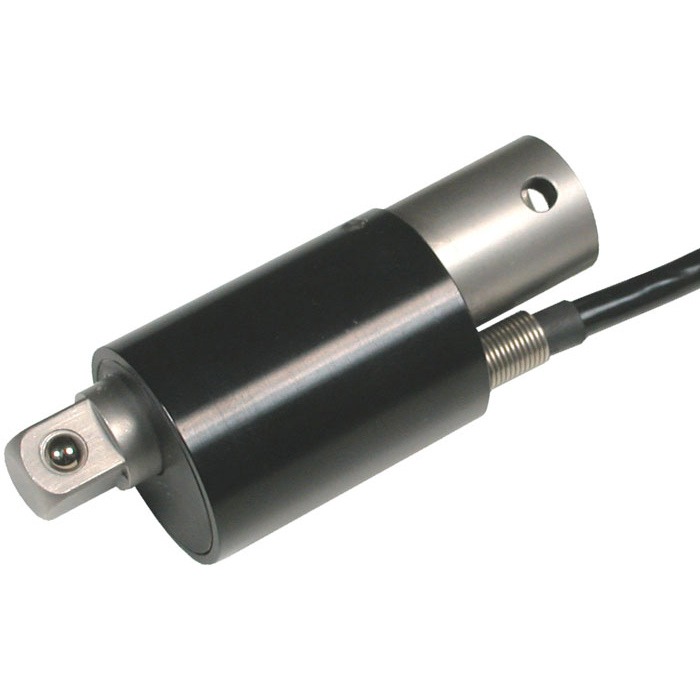

R54 Series Wrench Extension Torque Sensor
R54 Series, Force Sensors / Indicators
R54 Series, Force Sensors / Indicators
R54 Series, Force Sensors / Indicators
R54 Series, Force Sensors / Indicators
R54 Series, Force Sensors / Indicators
R54 Series, Force Sensors / Indicators
Click on an image for a larger image

R54 Series Wrench Extension Torque Sensor


Made in the USA The R54 is no longer available.
We recommend the R55 as replacement.


Convert any wrench to a torque tool with this sensor, or use it as a component of a torque testing system.


Features
  • Compatible with the Series 7i, 5i and 3i digital torque indicators
  • Stainless steel and aluminum construction
  • Unique Plug & TestTM connector holds all calibration and configuration data
  • NIST-traceable certificate of calibration included

Tension Ranges
Model Capacity with Model 5iResolution with Model 5iCapacity with Model 3iResolution with Model 3i
MR54-20 20IbFin
1.5IbFft
230kgFmm
220NcM		0.02IbFin
0.002IbFft
0.2kgFmm
0.2Ncm		20IbFin
230kgFmm
220Ncm		0.002IbFin
0.2kgFmm
0.2Ncm
MR54-50 50IbFin
4IbFft
580kgFmm
570Ncm		0.05IbFin
0.005IbFft
0.5kgFmm
0.5Ncm		50IbFin
580kgFmm
570Ncm		0.05IbFin
0.5kgFmm
0.5Ncm
MR54-100 100IbFin
8IbFft
1150kgFmm
1150Ncm		0.1IbFin
0,01IbFft
1kgFmm
1Ncm		100IbFin
1150kgFmm
1150Ncm		0.1IbFin
1kgFmm
1Ncm
MR54-200 200IbFin
16IbFft
1300kgFmm
2200Ncm
0.2IbFin
0.02IbFft
2kgFmm
2Ncm		200IbFin
2300kgFmm
2200Ncm		0.2IbFin
2kgFmm
2Ncm
MR54-400 400IbFin
32IbFft
4600kgFmm
4500Ncm		0.5IbFin
0.05IbFft
5kgFmm
5Ncm		400IbFin
4600kgFmm
4500Ncm		0.5IbFin
5kgFmm
5Ncm
MR54-1000 1000IbFin
80IbFft
11400kgFmm
11000Ncm		1IbFin
0.1IbFft
10kgFmm
10Ncm		1000IbFin
11500kgFmm
11000Ncm		1IbFin
10kgFmm
10Ncm
MR54-5000 5000IbFin
400IbFft
55kgFmm
55000Ncm		5IbFin
0.5IbFft
0.05kgFmm
50Ncm		5000IbFin
55kgFmm
550Nm		5IbFin
0.05kgFmm
0.5Nm

Dimensions
Dimensions-R54 Series


Specifications
Accuracy± 0.6% of full scale ±1 digit + indicator
WeightFrom 0.6 lbs (0.27 kg) to 2 lbs (0.9 kg)
Warranty3 years
