FGS-100H Manual Hand Wheel Operated Test Stand
Price € 941,00
View all prices >>

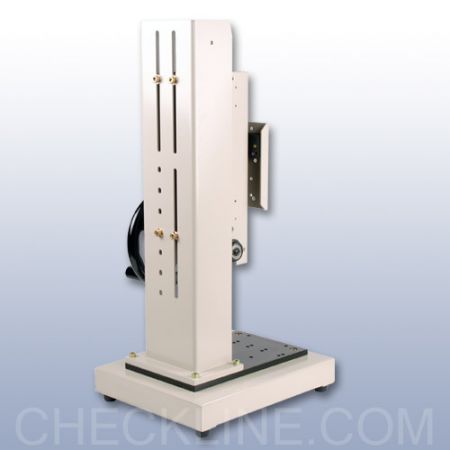

FGS-100H, Backside of the horizontal force test stand FS-100H

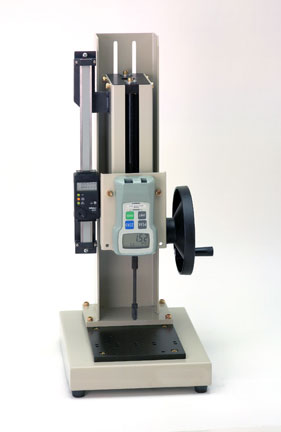

FGS-100H, The force test stand FGS-100H is used in combination with a digital force gauge.
FGS-100H, The FS-100H force test stand is operated by a manual wheel.
FGS-100H, Mechanical Force Test Stands
FGS-100H, Mechanical Force Test Stands

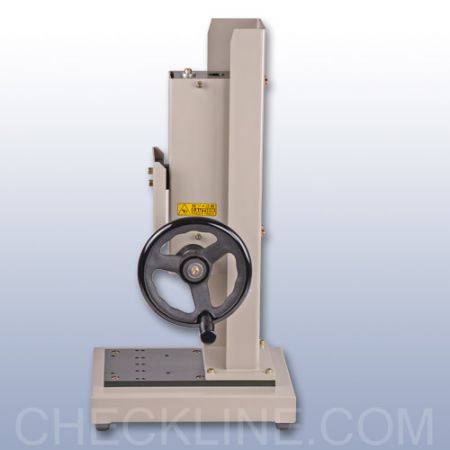

FGS-100H, Side view of the FGS-100H test stand.
FGS-100H, Mechanical Force Test Stands
Click on an image for a larger image

FGS-100H Manual Hand Wheel Operated Test Stand


The FGS-100HManual Hand-wheel Force Test Stand offer the ability to obtain accurate, consistent results without the high cost of a motorized system. The hand-wheel test stand is excellent for applications where more precise control is necessary.

The FGS-100H manual hand-wheel test stand has a 100 kg / 1000N capacity and can ensure accurate, consistent test results with the addition of a digital or mechanical force gauge.

Nearly all manufacturers’ gauges are compatible with this test stand for incredible versatility. These stands are designed for precision, balance, and durability. Therefore they are perfectly suited for measuring a limitless range of materials such as, wire, spring, plastic, paper cord, tubing, glass and composites

*Force Gauge Not Included


Features

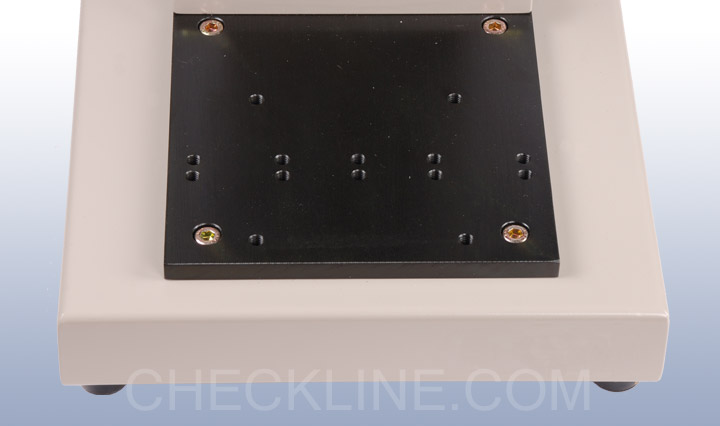

  • Versatile bottom mounting plate accepts standard and custom-made attachments
  • Precision gear movements
  • Sturdy, all steel construction
  • Constant Linear Motion
  • All steel construction
  • Adjustable clearances

Related Products

FGV-XY Digital Force Gauge with USB Output


  • Accuracy of ±0.2%
    providing superb repeatability
  • USB, RS-232 & Analog Outputs-- all included!
    3 different outputs for data transfer provides maximum flexibility

More details

FGV-XY Digital Force Gauge with USB Output

FGE Hand-held Digital Force Gauge


  • Includes Traceable Calibration Certificate
  • Accuracy ± 0.2%
  • User-selected units of Pounds, Kilograms or Newtons

More details

FGE Hand-held Digital Force Gauge

FGS-50S Manual Lever Test Stand


  • Manual lever operation for compression (push) measurements
  • Fixed position (clearance)in 3 steps: 40, 70, 100 mm
  • Max. capacity 22kg
  • Dimensions 150 x 240 x 320 mm (L x W x H)

More details

FGS-50S Manual Lever Test Stand

FGS-100L Manual Lever Test Stand


  • Manual lever operation for compression (push) measurements
  • Precision gear movement provides a consistent linear motion that produces repetitively accurate results

More details

FGS-100L Manual Lever Test Stand

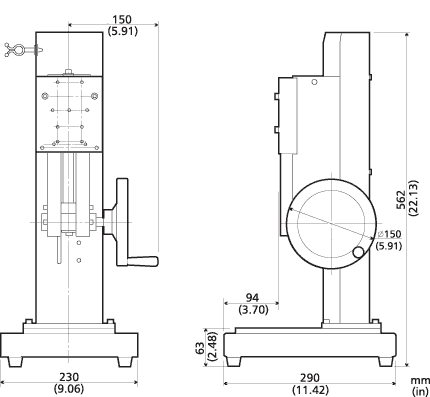

Dimensions
Dimensions-FGS-100H


Specifications
Capacity100 kg
Travel150 mm
Clearance52 - 202 mm
6 positions, 30mm/step (5 steps)
Travel Rate3 mm/wheel turn (approximately)
DimensionsRefer to dimensions above
Weight15 kg
Compatible GaugesFGE & FGV Series
Warranty2 year
*NoteOptional Distance Meter Max Sampling Rate Output - 2 Samples Per Second

Downloads
Datasheet FGS-100H

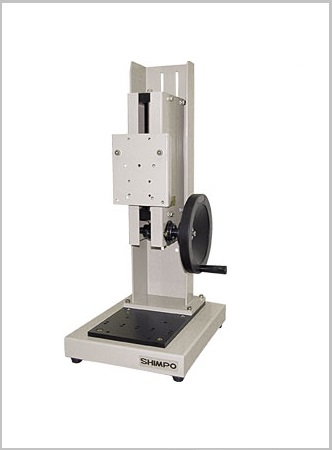

Complete Kit
Kit-126702 FGS-100H

Included Items:

  • Mounting Bracket
  • Cable Holder
  • 5mm Allen wrench
  • 4x Philips head screw M4x8
  • 3x Philips head screw M5x6
  • 1 Year Warranty
  • User Manual


Buy Now
Request Information / Quotation

Product

Product
Price
Quantity
132295
FGS-100H Manual Hand Wheel Test Stand
€ 941,00

Accessories

Product
Price
Quantity
131389
FGS-LENGTH-H (Digital Length/Height meter for hand-wheel stands)
€ 605,00
131385
UNI-PLATE (Competitors gauges & MF-JAVELIN)
€ 142,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
