RTM-E Digital Cable Tension Meter

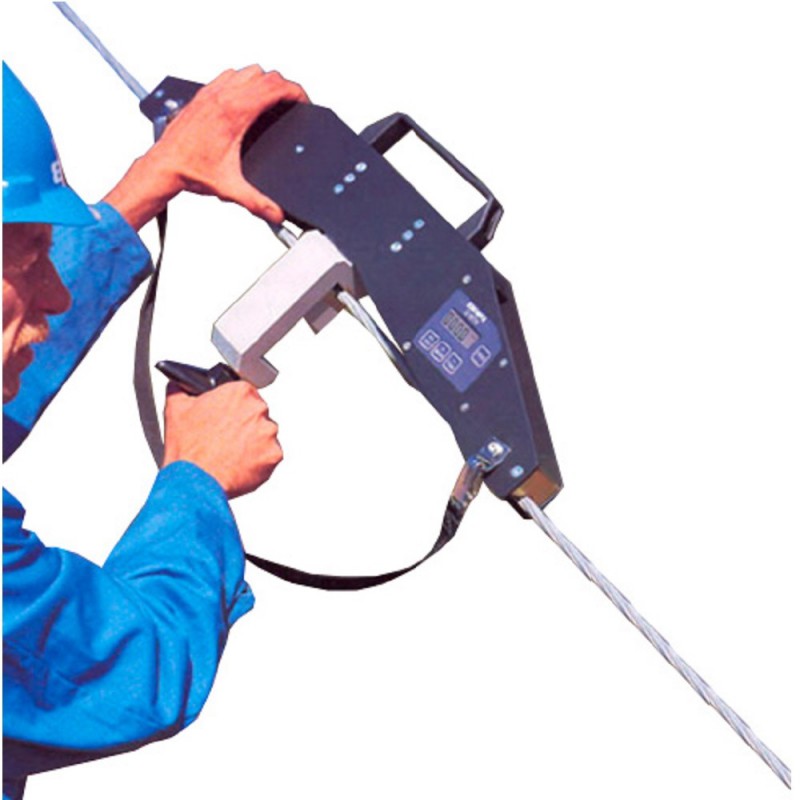

The RTM-E is a cable tension meter especially developed for the determination of (high) tension in cables like guy wires, support cables, architectural cables etc. The RTM-E can be placed directly on the cable. The device will show the tension on the display.
The RTM-E is suitable for measurements up to 30.000 KG and cable diameters up to 38 mm. The measured values are directly shown on the display without use of a reference table.
Measuring principle:
The RTM-E is placed on the cable under a pre-defined angle. This angle is then used to determine the tension in the cable. Since the gauge is calibrated to the cable that is measured it will directly show the tension value. These calibrations can be saved inside the gauge and it is possible to save up to 10 different cable calibrations. Values can be displayed in N, Lbs or Metric Tons
Safety:
The RTM-E determines quickly, safely, accurately and conveniently cable tension. It can withstand force two times its rated capacity without damage. The RTM features hardened steel cable guides which ensures trouble free operation in the toughest outdoor environments.
- Telecommunication and microwave towers
- Skilifts
- Bridges
| Model | Ranges | ||||
| RTM-E-5 | 0 - 5 tons | 0- 5.000 Kg | 0-50 Kn | ||
| RTM-E-20 | 0 - 20 tons | 0- 20.000 Kg | 0-200 Kn | ||
| RTM-E-30 | 0 - 30 tons | 0- 30.000 Kg | 0-300 Kn |
The RTM 20E is delivered in a robust and lightweight transport case (760 x 400 x 170 mm) for easy handling and protection of the instrument.
| Measuring Units: | kLbs / kN / Metric tons |
| Cable Diameter: | 6 - 38 mm |
| Accuracy: | 2 - 6 % of max. capacity |
| Calibration: | 20 Different cables (1 included) |
| Display: | LCD, 0-19999, 0.5" high (12mm) |
| Battery: | Standard 9 volt Block |
| Battery Life: | 25 hours |
| Housing material: | Corrosion proof anodised Aluminum |
| Dimensions: | 5.3"x15.0"x27.0" (135x380x685 mm) Gauge 6.7"x15.7"x29.9" (170x400x760 mm) in casing |
| Weight: | 6,2 kg net. |
| Shipping weight | 13,5 kg |
| Working temperature: | -20 - + 60 degrees Celsius |
| Protection Class: | IP67 / NEMA 13 / IEC 529 |
Before the RTM-20E can be ordered, we first need to check if the cables you are going to test are available for calibration at the factory. Please download the link.
CABLE TENSION METER QUOTE REQUEST FORM.doc
and send the completed form to us by email. We can then check if your cables are available or if we require 12 meter samples for calibration.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
