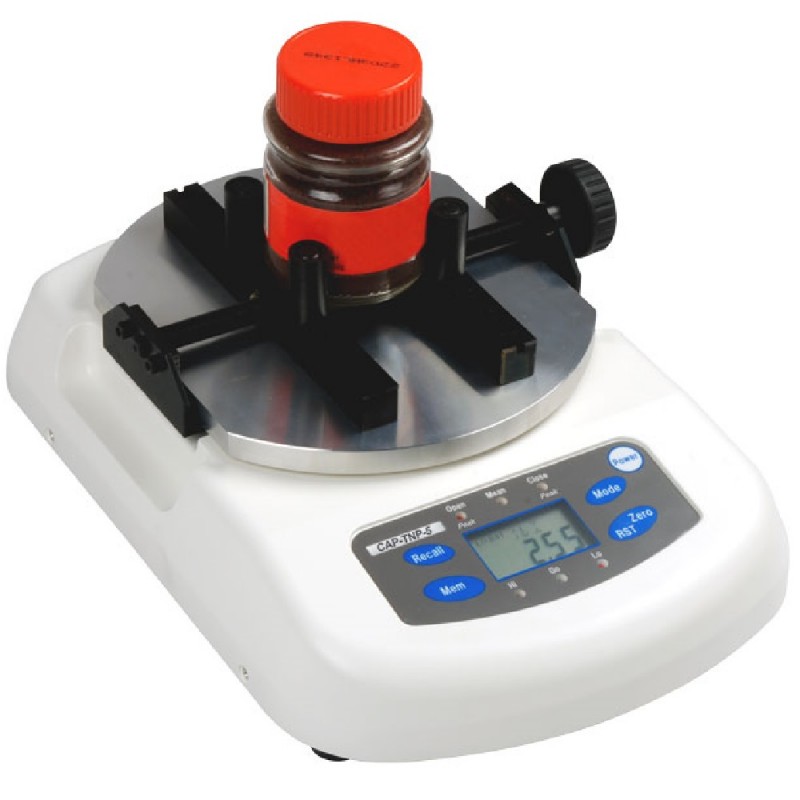

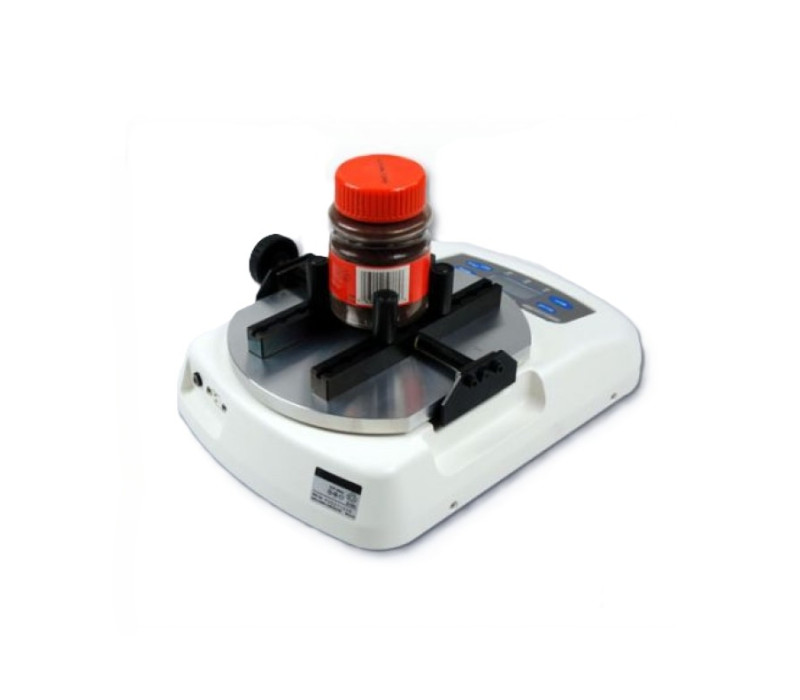

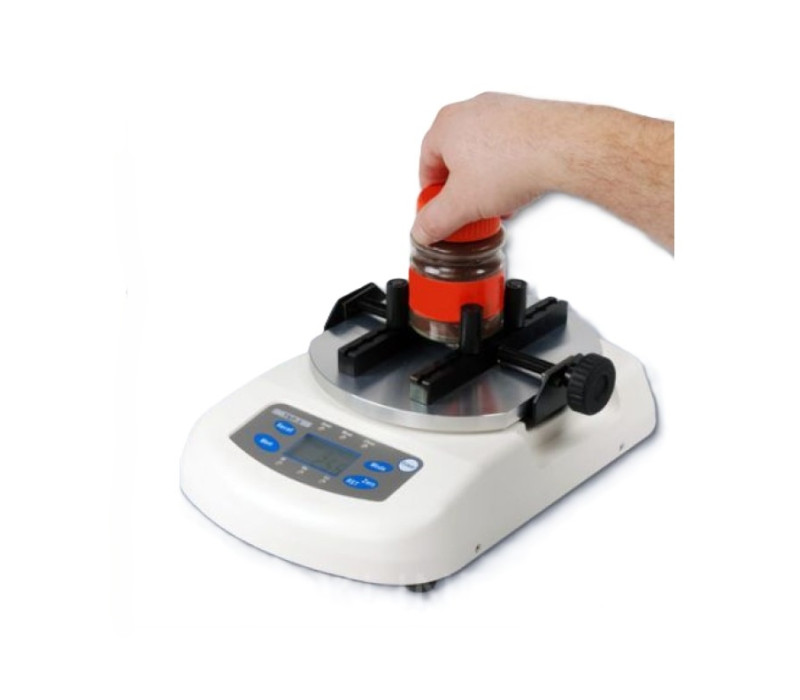

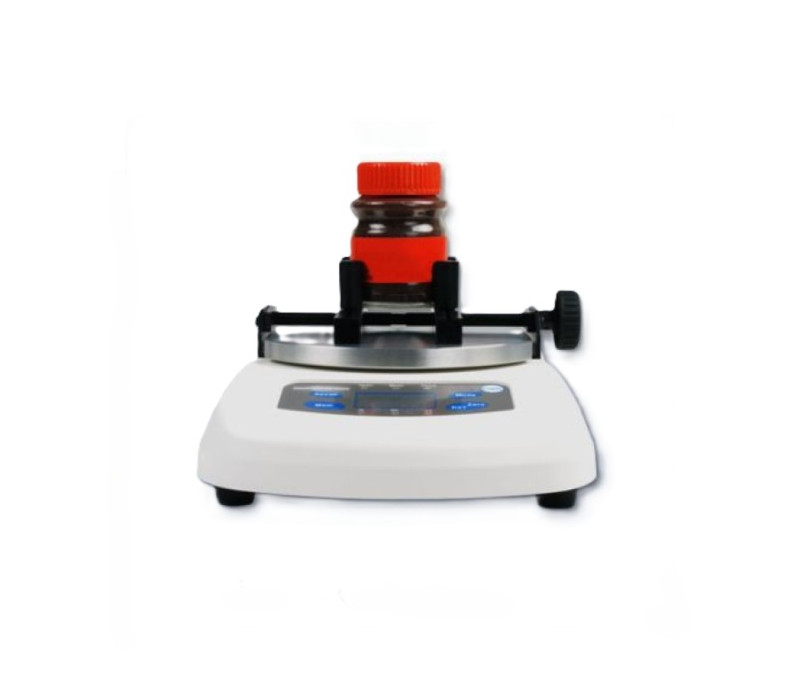

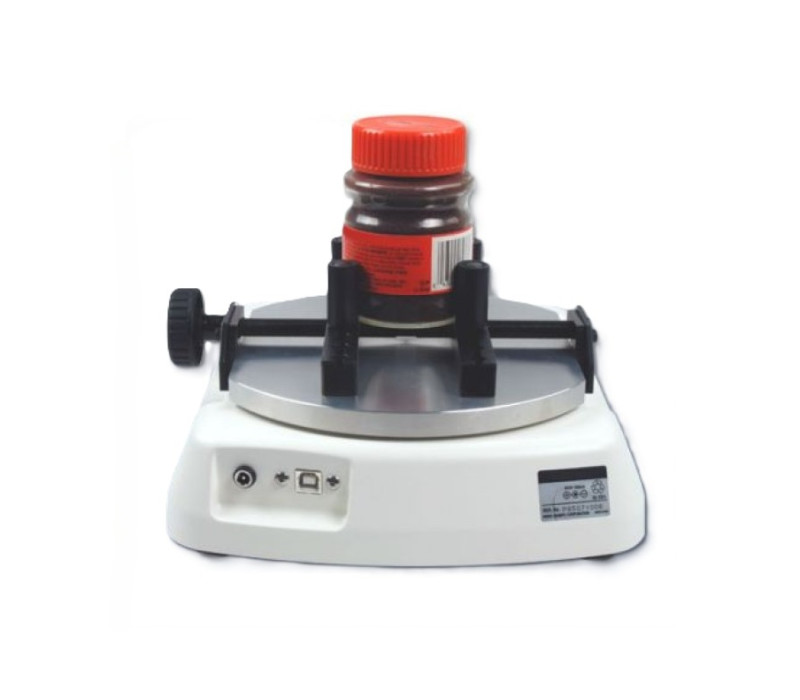

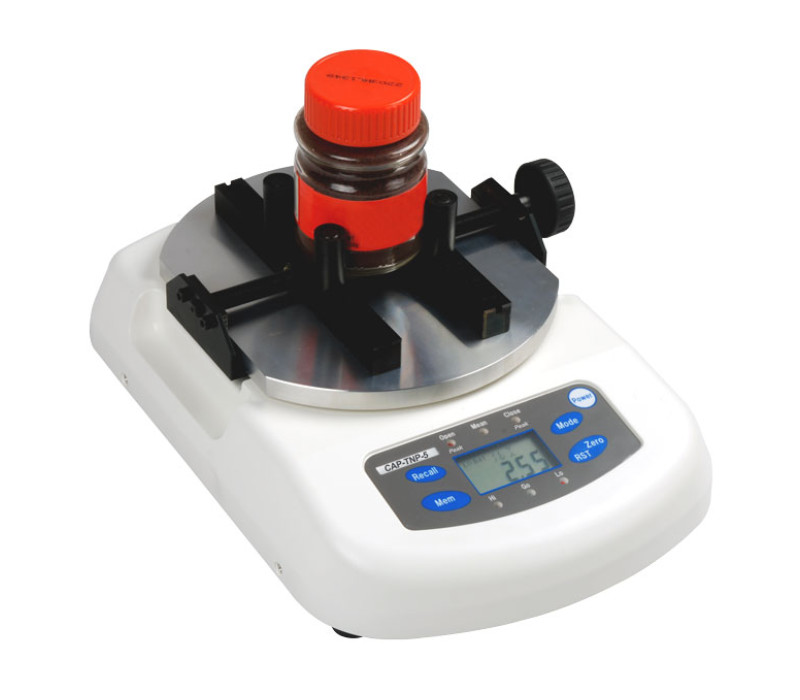

CAP-TNP Digital Cap Torque Tester


The new CAP-TNP torque tester is a precision instrument that measures OPEN and CLOSE torque values for various applications. As a cap torque analyzer, the CAP-TNP repeatedly determines bottle closure and breakaway torque. It has a wide memory capacity capable of storing 1000 data points in addition to Average, Maximum and Minimum values. A HI-LO comparator feature can be utilized for a large batch testing to ensure overall product quality.

The CAP-TNP torque meter is USB capable for computer testing. Combined with the free Digitorq Software, additional analysis and testing can be performed.

The CAP-TNP is a portable device powered with internal rechargeable batteries or through an AC Adapter/charger. Designed with a small footprint it can easily be transferred to maximize use around the shop floor or the laboratory.

4 Ranges up to 10 Nm
Sample Diameters  10 - 190 mm




Features
  • ±0.5% F.S. Accuracy
  • Quick and easy set-up takes seconds
  • Rechargeable NIMH batteries and / or Universal AC adapter
  • USB interface including FREE Digitorq Software
  • Captures Peak Opening, Peak Closing and Average torque values (CCW, CW)
  • Four (4) models offered covering small, medium and large sized containers
  • Easy to read LCD
  • Displays Torque values in, lb./in, LBin, Kgcm and Nm, Ncm
  • Small foot print, compact, space saver design
  • Open Mode:
    Max value when opening
    [CCW torque direction]
  • Close Mode:
    Max value when closing
    [CW torque direction]
  • Average Mode:
    Continuous torque values in real time
  • One touch operation, retains up to 1000 measurements
  • 2 Year Warranty
  • Includes Manufacturers Certificate

Torque Ranges
Model Capacity Resolution
TNP-0.5 0-4.425 Lbf-in
0-0.500 Nm
0-50.00 Ncm
0-5099 gcm
0.001 Lbf-in
0.001 Nm
0.01 Ncm
1 gcm
TNP-2 0-2.000 Nm
0-200.0 Ncm
0-20.39 Kgcm
0-17.70 Lbin
0.001 Nm
0.1 Ncm
0.01 Kgcm
0.01 Lbin
TNP-5 0-5.000 Nm
0-500.0 Ncm
0-50.99 Kgcm
0-44.25 Lbin
0.001 Nm
0.1 Ncm
0.01 Kgcm
0.01 Lbin
TNP-10 0-10.00 Nm
0-1000 Ncm
0-102.0 Kgcm
0-88.50 Lbin
0.01 Nm
1 Ncm
0.1 Kgcm
0.1 Lbin

Typical Torque Values (N-cm)
Cap dia.
in mm
Phenolic/ Urea
Cap On Glass
Phenolic/Urea
Cap on Plastic
PP/PE Cap
on Glass
PP/PE Cap
on Plastic
Close Torque Open Torque Close Torque Open Torque Close Torque Open Torque Close Torque Open Torque
15 90.39 45.19 67.79 33.90 135.58 79.09 90.39 45.19
18 101.69 56.49 79.09 45.19 146.88 90.39 101.69 56.49
20 112.99 56.49 90.39 45.19 169.48 101.69 112.99 56.49
22 124.28 67.79 101.69 56.49 192.07 112.99 124.28 67.79
24 135.58 67.79 112.99 56.49 203.37 124.28 135.58 67.79
28 158.18 79.09 135.58 67.79 237.27 135.58 158.18 79.09
33 203.37 101.69 169.48 79.08 271.16 158.18 192.07 90.39
38 225.97 112.99 192.07 79.09 327.66 192.07 214.67 101.69
43 248.57 124.28 203.37 101.69 372.85 225.97 248.57 124.28
48 271.16 158.18 225.97 112.99 293.76 248.57 271.16 135.58
58 316.36 158.18 271.16 135.58 497.13 293.76 327.66 158.18
70 395.45 203.37 316.36 158.18 587.52 361.55 395.45 192.07
89 508.43 248.57 406.75 208.37 734.40 451.94 508.43 248.57
100 564.92 282.46 451.93 225.97 847.39 429.34 564.92 282.46

Dimensions
Dimensions-CAP-TNP


Downloads

Complete Kit

CAP-TNP includes,

  • Tester,
  • Set of four - 1" gripping pegs,
  • AC adapter,
  • Manufacturers Certificate (without data)
  • USB Cable
  • CD-Software (Digitorq Software)
  • Instruction manual.


Related Products

Cic-Torque Torque Instrument Calibration


  • Short turnaround
  • Easy planning of calibration

More details

Cic-Torque Torque Instrument Calibration

Specifications
Overload protection150%
Sample Diameter Range (min to max)10 - 190 mm
Overload displayDisplay "OVR" at sub display of LCD, blinking LED
Main display4-digit LCD display Character height 12mm
Sub display3-digit LCD display Character height 7mm
Comparator displayHi, GO, Lo LED Indicators
Accuracy± 0.5% full scale
Open modeMax value when opening. Displays max counter clockwise torque.
Close modeMax value when closing. Displays max clockwise torque
Average modeReal time display. Displays max torque in real time
Display Update Time1, 2, 4 or 8 updates/second, user-set
Sampling Rate1000 times/second
Memory data number1000 data points (max)
Statistic processAverage value, max value and min value
Data output USB 1.1
PC softwareDigitorq software
Accessories USB cable, AC adapter, 30 mm chuck pin (4 pcs), Manual
PowerBuilt in nickle hydride battery or Auto-ranging AC adapter (AC100 - 240V)
Dimensions
L x W x H
320 x 227 x 126 mm
Weight8 kg
CAP-TNP-10: 12.5 kg
Operating temperature0 - 40°C / 32 - 104°F
Battery Life8 hours after full charge
Battery Recharge TimeMax. 16 hours
Battery TypeNiMH
Warranty2 Years

Buy Now
Products

Product
Price
Quantity
133013
CAP-TNP-0.5 Torque Tester - 0.5Nm Capacity
€ 1.334,00
130360
CAP-TNP-2 Torque Tester - 2Nm Capacity
€ 1.334,00
130361
CAP-TNP-5 Torque Tester - 5Nm Capacity
€ 1.334,00
130362
CAP-TNP-10 Torque Tester - 10Nm Capacity
€ 1.334,00

Accessories

Product
Price
Quantity
135405
TNP-TP30 - Set of 4 standard replacement pegs, 30mm height
€ 131,00
131746
TNP-TP50 - Set of 4 extended pegs, 50mm height
€ 194,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
