CAP-TT05 Universal Torque Tester

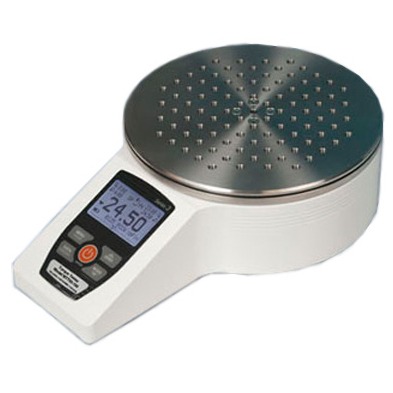

Made in the USAThe Series TT05 Torque Tester is developed as a more flexible version of the CAP-TT01. The top plate has a matrix of threaded holes that can accommodate specialized fixtures and attachments.  It is also possible to design and manufacture (3D print or mill) your own specific fixtures.

This solid build device is suited for use in a laboratory as well as in a production environment. With an accuracy of ±0.3% and a sample frequency of 7000Hz the Series TT05 produces high quality and consistent test results.

Data up to 1000 readings is stored in the on board memory and transfer of data can be done by USB, RS-232, Mitutoyo, and analog outputs. The TT05 comes in 4 capacities ranging from 1,35 to 11,5 Nm, it supports 5 selectable units of measuring, zeroing upon sample break and has a backlit display that shows current and peak torque readings for each direction, set points, pass/fail indicators, rotation direction, units of measurements and an analog load bar with setpoint markers.

The easy-to-use interface makes operation efficient and quick to learn while Password protection is provided to prevent unauthorized changes to settings and calibration.

The Series TT05 testers include MESUR® Lite data acquisition software. MESUR® Lite tabulates continuous or single point data.
Data stored in the TT05’s memory can also be downloaded in bulk. One-click export to Excel allows for further data manipulation for use in reports or presentations.


Features
  • Threaded holes are not drilled through the plate, for protection from debris and liquid
  • RS-232, USB, Mitutoyo, and analog outputs
  • First / second peak detection for torque tool testing, bottle cap testing, and other applications
  • High-speed 7000 Hz sampling rate accurately captures peak torque values
  • Stainless steel loading plate with #10-32 threaded holes accommodates fixtures and attachments
  • Automatic output, data storage, and zeroing upon sample break helps automate testing processes
  • 1.000-point data memory with statistics and outputs
  • Configurable audio alarms and key tones
  • MESURTM Lite data collection software included
  • 5 selectable units of measurement
  • Sample break detection
  • ±0.3% accuracy

Capacity x Resolution
 NmNcmkgFmmozFinlbFin
MTT05-121,35 x 0,001135 x 0,114 x 0,01192 x 0.112 x 0.005
MTT05-252,9 x 0,002290 x 0,228 x 0,02400 x 0.225 x 0.01
MTT05-505,7 x 0,005570 x 0,558 x 0,05800 x 0.550 x 0.02
MTT05-10011,5 x 0,0051150 x 0,5116 x 0,11600 x 1100 x 0.05

Display

WT3-201 Display


Complete Kit

Series TT05 torque testers include the following accessories:

  • USB cable
  • AC adapter
  • Rechargeable battery
  • Certificate of calibration without data


Dimensions
Dimensions-CAP-TT05


Dimensions of the TT05 Torque Tester,

All dimensions are noted in Inches with metric sizes in [mm] behind.


Accessories

Category Torque Accessories


Grips & Attachments for torque gauges and torque test stands. Universal torque grips and special attachments for specific applications.

More details

Category  Torque Accessories 0

Mesurgauge / Mesurgauge plus Load & Travel Analysis Software


  • Sends data from a force or torque gauge and travel display to a PC for further analysis

More details

Mesurgauge / Mesurgauge plus Load & Travel Analysis Software 126514

Cic-Torque Torque Instrument Calibration


  • Short turnaround
  • Easy planning of calibration

More details

Cic-Torque Torque Instrument Calibration 127043

Specifications
Accuracy±0.3% of full scale
Sampling Rate7000 Hz
PowerAC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low.
Battery LifeBacklight on: up to 7 hours of continuous use.
Backlight off: up to 24 hours of continuous use
Measurement UnitsozFin, lbFin, lbFft, Nm, Ncm
Outputs USB / RS-232: Configurable up to 115,200 baud.
Mitutoyo: Serial BCD suitable for all Mitutoyo SPC-compatible devices.
Analog: ±1 VCD, ±0.25% of full scale at capacity.
General purpose: Three open drain outputs, one input.
Set points: Three open drain lines.
Safe Overload150% of full scale (display shows "OVER" at 110% and above)
Weight4.9 kg
Included ItemsUniversal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESURTM Lite software, MESURTMgauge DEMO software, and user's guide), and NIST-traceable certificate of calibration (data is available for an additional charge).
Warranty3 years
