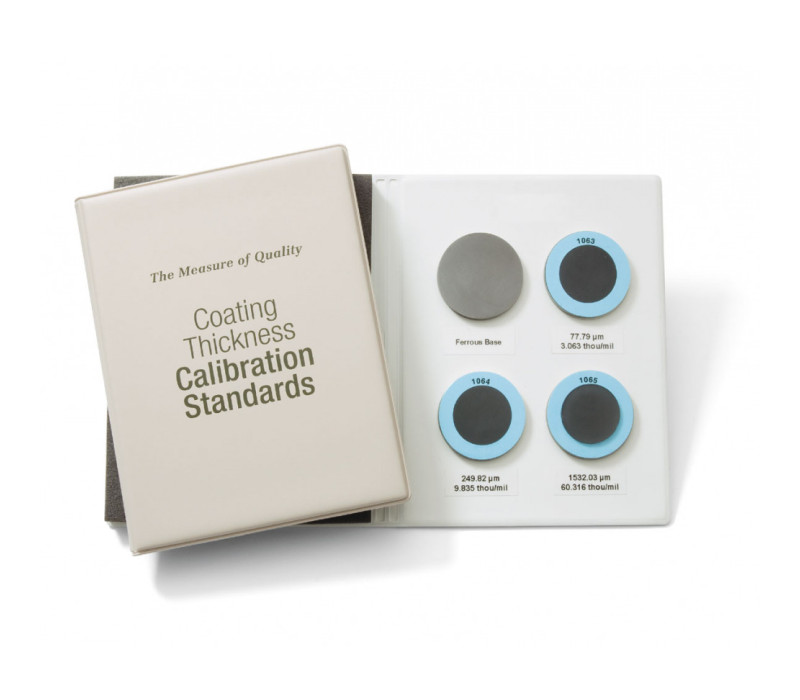

CMP Certified Coated Metal Plates
Certified coated metal plates are ideal for verifying the accuracy and operation of coating thickness gauges and are an important component in fulfilling both ISO and in-house quality control requirements.
Many organizations require verification of gauge accuracy at the test site each time a coating thickness gauge is put into service and at frequent intervals during use. Ideal for this purpose, certified coating thickness standards have measured values traceable to a National Metrology Institution.

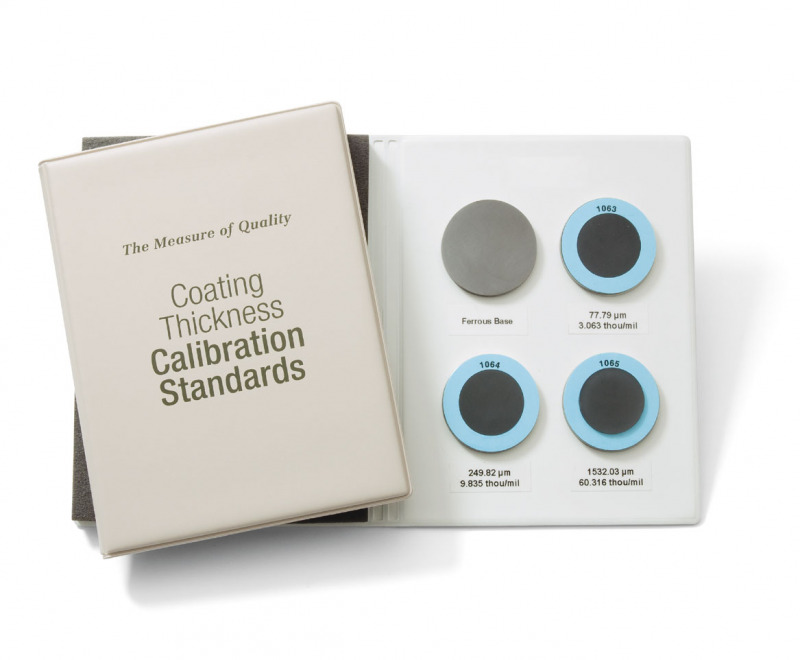

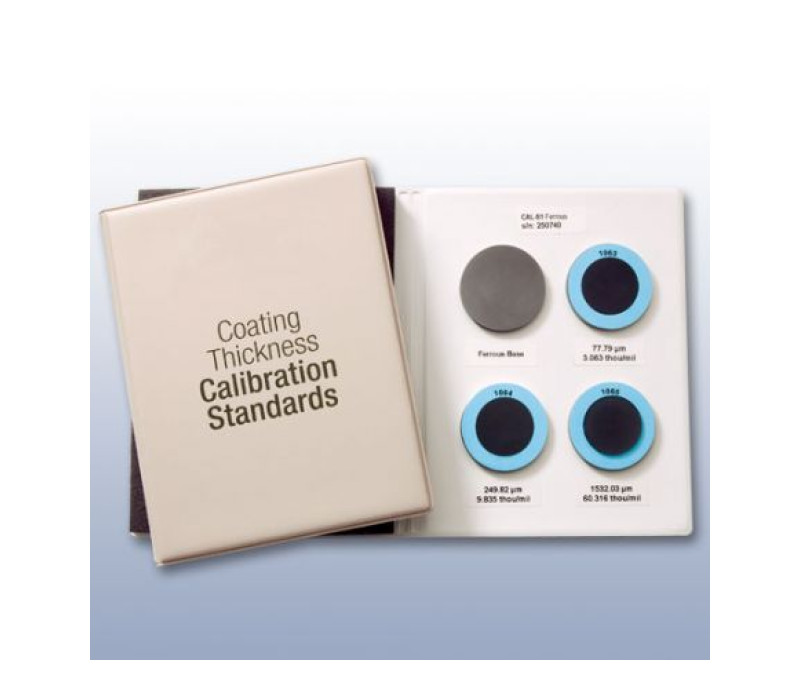

- Standards with steel or aluminum substrates consist of 4 plates mounted in a protective binder
- Ideal for use in the calibration lab, in the field or on the factory floor
- Certified and labeled in both Metric and Imperial units

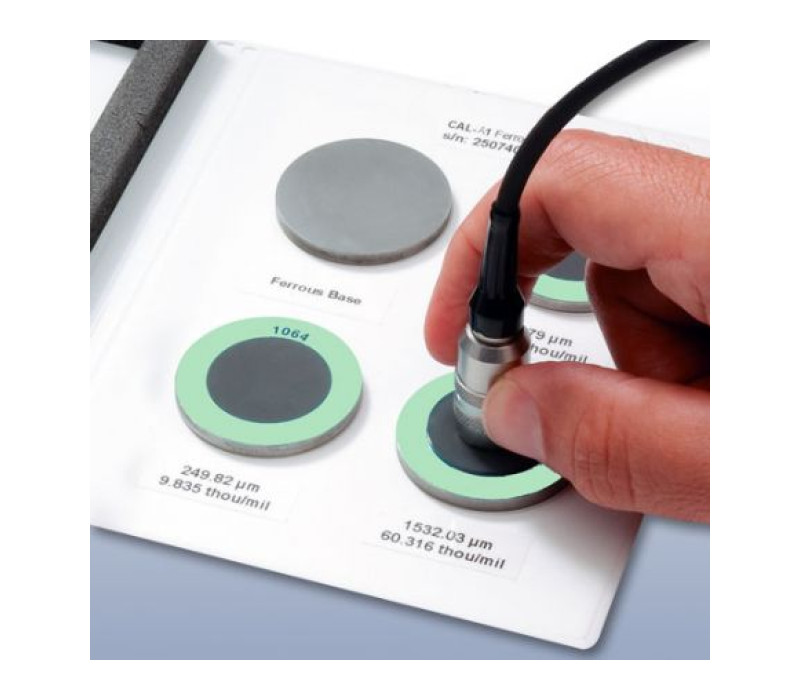

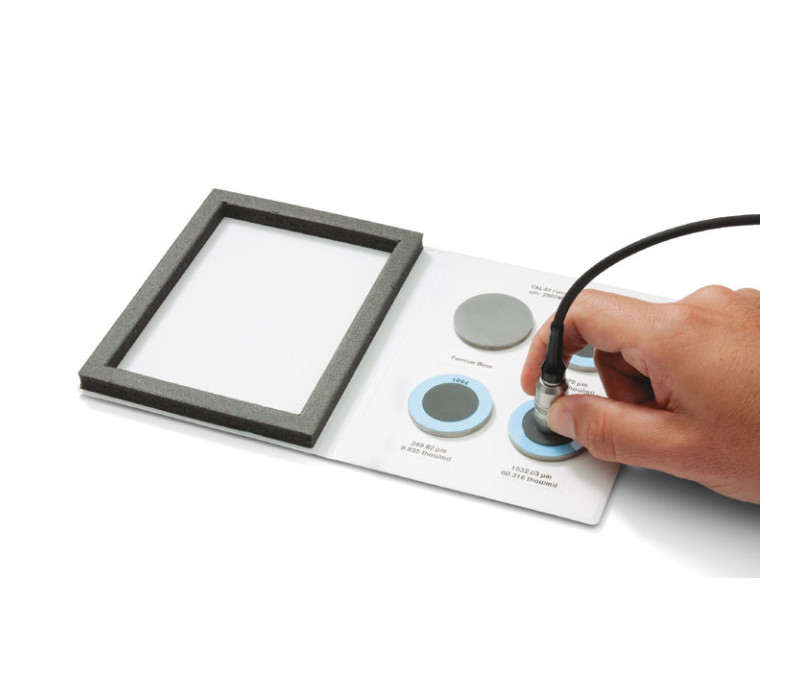

- Used to verify the accuracy and operation of any Type 1 (mechanical) and Type 2 (electronic) magnetic, eddy-current or ultrasonic coating thickness gage
- Individually serialized for traceability to NIST or PTB - includes a Certificate of Calibration
| Order Code | Ideal for | Coating / Substrate |
|---|---|---|
| S1 |
PosiTector 6000 F, FS, FRS, FN, FNS, FNRS PosiTest F & FM |
Epoxy on Steel (Ferrous) |
| S2 |
PosiTector 6000 F0S, F45S, F90S PosiTest DFT Ferrous & Combo |
|
| S3 |
PosiTest G & GM PosiPen A, B & C |
|
| A1 |
PosiTector 6000 N ,NS, NRS, FN, FNS, FNRS |
Epoxy on Aluminum (Non-Ferrous) |
| A2 |
PosiTector 6000 NAS , N0S, N45S, N90S PosiTest DFT Combo |
|
| A3 | PosiTector 100B, 200, 200B |
| Order Code | Approximate Thickness | Accuracy | |||
|---|---|---|---|---|---|
| Plate 1 | Plate 2 | Plate 3 | Plate 4 | ||
| S1 | 0 |
75 um 3 mils |
250 um 10 mils |
1500 um 60 mils |
± 0.43 um ± 0.017 mil |
| S2 | 0 |
75 um 3 mils |
250 um 10 mils |
1000 um 40 mils |
|
| S3 | 0 |
15 um 0.6 mils |
40 um 1.6 mils |
100 um 4 mils |
|
| A1 | 0 |
75 um 3 mils |
250 um 10 mils |
1500 um 60 mils |
± 0.43 um ± 0.017 mil |
| A2 | 0 |
75 um 3 mils |
250 um 10 mils |
500 um 20 mils |
|
| A3 |
75 um 3 mils |
125 um 5 mils |
250 um 10 mils |
500 um 20 mils |
|
