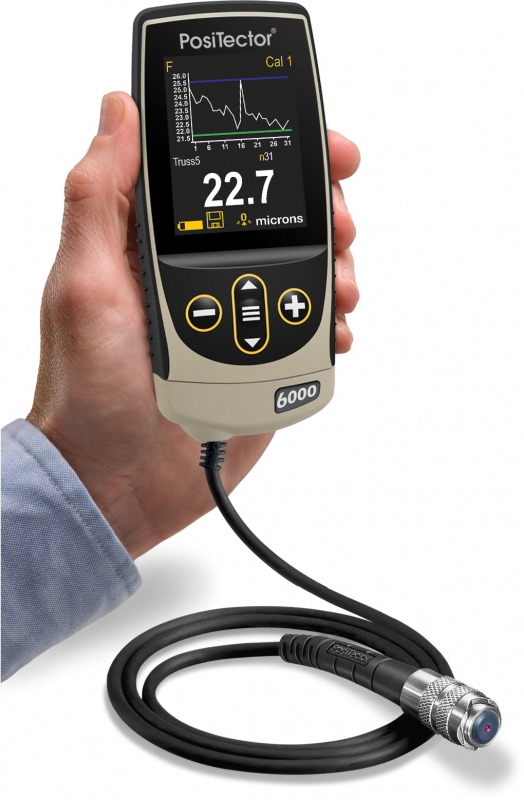

PosiTector 6000GP Coating Thickness Gauge
For General Use
The PosiTector 6000GP is a portable, electronic, and rugged coating thickness gauge designed to deliver high-precision, non-destructive measurements on both ferrous and non-ferrous metals. It utilises magnetic induction and eddy current principles to evaluate coating thickness, making it ideal for industrial applications where quality control is essential.
Key Features:
- Measurement Range: 0 – 1500 µm, allowing evaluation of coatings from very thin to moderately thick.
- Resolution: 0.1 µm, ensuring precise and consistent results.
- Compatible Substrates: Measures coatings on ferrous metals (F), non-ferrous metals (N), and combinations (FN).
- Available Configurations:
- Standard Model (1): Includes a high-contrast, reversible colour LCD display, 1000 reading memory, and USB data output.
- Advanced Model (3): Adds Scan Mode, real-time graphing via Bluetooth, and additional advanced functionalities.
Key Benefits:
- Non-Destructive Measurement: Evaluates coating thickness without damaging the surface, preserving the integrity of the material.
- High Precision and Speed: Advanced technology delivers accurate, real-time results, optimising quality control.
- Easy Integration and Operation: Its intuitive design and connectivity options (USB and Bluetooth in the advanced model) simplify data transfer and analysis, adapting to a variety of laboratory and field environments.
- Versatility in Application: Perfect for a wide range of industries, from automotive and construction to electroplating, where coating quality is critical.
Contact us for more information or to place an order. Our team of experts is ready to assist you in selecting the coating thickness gauge that best meets your operational and technical requirements, ensuring precise and reliable measurements for your projects.
Features
- HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
- Reversible Display enables right side up viewing whether the gage is in your hand or on a work table
- Thick impact resistant Lexan® display is backlit for easy viewing in dim or dark environments
- No Calibration required for most applications
- Multi-lingual Menu; English, Spanish, French, German, Portuguese, Chinese, Japanese, Norwegian, Russian, Czech and Italian
- Built-in temperature compensation ensures measurement accuracy
- Average Zero Feature; allows for multiple "zero measurements" ideal for measurements on rough substrates
- All models supplied with protective rubber holster with belt clip and NIST-Traceable Calibration Certificate supplied in Nylon carry case with shoulder strap
- User-selected units of mils, microns or mm
- High Resolution mode increases the displayed resolution for use on applications that require greater precision
- External probe for general purpose paint and coating applications
- Two (2) year warranty
- Made in the USA
Easy-To-Use
- Ready to measure—no calibration adjustment required for most applications
- Enhanced one-handed menu navigation
- Flashing display—ideal in a noisy environment
- RESET feature instantly restores factory settings
Durable
- Solvent, acid, oil, water and dust resistant - weatherproof
- Wear-resistant probe tip
- Shock-absorbing, protective rubber holster with belt clip
- Two year warranty on gage body AND probe
Accurate
- Certificate of Calibration showing traceability to NIST included (Long Form)
- Built-in temperature compensation ensures measurement accuracy
- Hi-RES mode increases displayed resolution for use on applications that require greater precision
- Conforms to national and international standards including ISO and ASTM
Versatile
- Fully interchangeable probes are compatible with ALL gage bodies
- Multiple Calibration adjustment options including 1 point, 2 point, known thickness, average zero
- Selectable display languages
- Hi Contrast backlit display for bright or dark environments
- Flip display enables right-side-up viewing
- Extended cables available (up to 75 m/250 ft) for underwater or remote measuring
- Uses alkaline or rechargeable batteries (built-in charger)
Powerful
- Statistics mode continually displays/updates average, standard deviation, min/max thickness and number of readings while measuring
- HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
- FAST mode - faster measurement speed for quick inspection
- USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
- USB mass storage - stored readings and graphs can be accessed using universal PC/ Mac web browsers or file explorers. No software required
- Every stored measurement is date and time stamped
- Software updates via web keep your gage current
- Connects to PosiTector.net
Complete Kit
All Gauges are supplied as a complete kit including
- Precision plastic shims
- Protective rubber holster with belt clip, wrist strap
- 3 AAA alkaline batteries
- Nylon carrying case with shoulder strap
- Protective lens shield
- Long Form Certificate of Calibration traceable to NIST
- USB cable
- Manual
Related Products
PosiTector 6000IP Integrated Coating Thickness Gauge
- Integral probe for one hand use on paint and coating applications in the range of 0-60 mils (0-1500 microns)
More details
Positector 6000MP Coating Thickness Gauge
- High Resolution mode increases the displayed resolution for use on applications that require greater precision
More details
PosiTector 6000TC Thick Coating Model
- HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
- Reversible Display enables right side up viewing whether the gage is in your hand or on a work table
- Thick impact resistant Lexan® display is backlit for easy viewing in dim or dark environments
More details
PosiTector 6000TCX Extra Thick Coating Models
- For extra thick paint and coatings up to 13 mm (150-500 mils)
More details
Cic-Coating Calibration Coating Thickness Gauge
- Easy planning of calibration
- Short turnaround
- Possibility to adjust and repair
- In accordance with DIN EN ISO 2178, 2360, 2808 and meets or exceeds the indicated accuracy.
More details
Specifications
| Measuring principle | Magnetic induction principle (Ferrous) Eddy-current principle (Non-Ferrous) |
| Display | Backlit & Reversible LCD |
| Resolution | 0,1 µm |
| Data Output | USB - "1" & "3" Models Bluetooth - "3" Models |
| Surface Temp. | Maximum 120 °F / 49 °C |
| Power | 3 AAA batteries, Included |
| Dimensions | 5.75" x 2.5" x 1.2" (146 x 64 x 31 mm) |
| Weight | 5.8 oz. (165 g) without batteries |
| Protection Class | Meets or exceeds IP5X, Solvent, acid, oil, water & dust resistant |
| Warranty | 2 Years |
| Calibration Certificate | Certificate of Calibration showing traceability to NIST included |
| Min. Concave Radius | 1 inch (2" OD) |
Accessories
PRBFOOTKIT-D Probe Foot Rings for PosiTector 6000
- Probe foot rings, ideal for use on thin, soft coatings.
- Protects coatings from unnecessary wear while using Scan or Fast mode to measure large objects.
More details
Probe - Feature Comparison Chart
| Feature Comparison Chart | Standard (1) |
Advanced (3) |
| Hi Contrast LCD Display |  Color |
 Color |
| General Features | Standard (1) |
Advanced (3) |
| FAST mode - faster measurement speed for quick inspection | ||
| SCAN Mode - take continuous readings without lifting the probe | - |
|
| Hi-Lo limits audibly and visibly alerts when measurements exceed your specified limits |
|
|
| Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring |
|
|
| Onscreen help, real time graphing, picture prompting and batch notes | - | |
| Memory Features & Capacity | Standard (1) |
Advanced (3) |
| Reading Storage Capacity | 1000 in one group | 250,000 in up to 1000 groups |
| Create meaningful batch names and enter notes directly on the instrument using a familiar on-screen QWERTY keyboard. | - | |
| SSPC PA2 feature set determines if film thickness over a large area conforms to user-specified min/max levels | - | |
| PSPC 90/10 feature determines if a coating system complies with an IMO performance standard for protective coatings | - | |
| Multiple stored calibration adjustments for measuring on a variety of substrate conditions | - | |
| Connection Options | Standard (1) |
Advanced (3) |
| USB port for fast, simple connection to a PC and to supply continuous power. USB cable included | ||
| WiFi technology wirelessly synchronizes with PosiSoft.net, downloads software updates, and connects to mobile devices for expanded functionality | - | |
| Bluetooth Wireless Technology for data transfer to a PC or optional portable printer | - | |
| PosiSoft Solutions | Standard (1) |
Advanced (3) |
| PosiSoft Desktop Software Desktop software for PC or Mac computer | ||
| PosiSoft USB Drive Access your PosiTector as a flash drive. View and print readings and graphs using universal PC/Mac web browsers or file explorers | ||
| PosiSoft.net (formerly PosiTector.net) Cloud-based application offering centralized management of PosiTector readings | ||
| PosiSoft Mobile Gage-based software application featured in all PosiTector Advanced instruments | - |
| Regular | ||
 |
Probe Models: | FS= Coatings on Ferrous metals NS= Coatings on Non-Ferrous metals FNS= Combination: Coatings on All Metals |
| Range: | 0 -60 mils | |
| 0 - 1500 µm | ||
| Accuracy*: | + (0.05 mils + 1%) 0 - 2 mils + (0.1 mil + 1%) > 2 mils |
|
|
+ (1 µm + 1%) 0 - 50 µm |
||
| *Accuracies are stated as a fixed value plus a percentage of the gage's actual reading. | ||
| 90° Probe (Rectangle) | ||
 |
Probe Models: | FRS= Coatings on Ferrous metals NRS= Coatings on Non-Ferrous metals FNRS= Combination: Coatings on All Metals |
| Range: | 0 -60 mils | |
| 0 - 1500 µm | ||
| Accuracy*: | + (0.05 mils + 1%) 0 - 2 mils + (0.1 mil + 1%) > 2 mils |
|
|
+ (1 µm + 1%) 0 - 50 µm |
||
| *Accuracies are stated as a fixed value plus a percentage of the gage's actual reading. | ||
