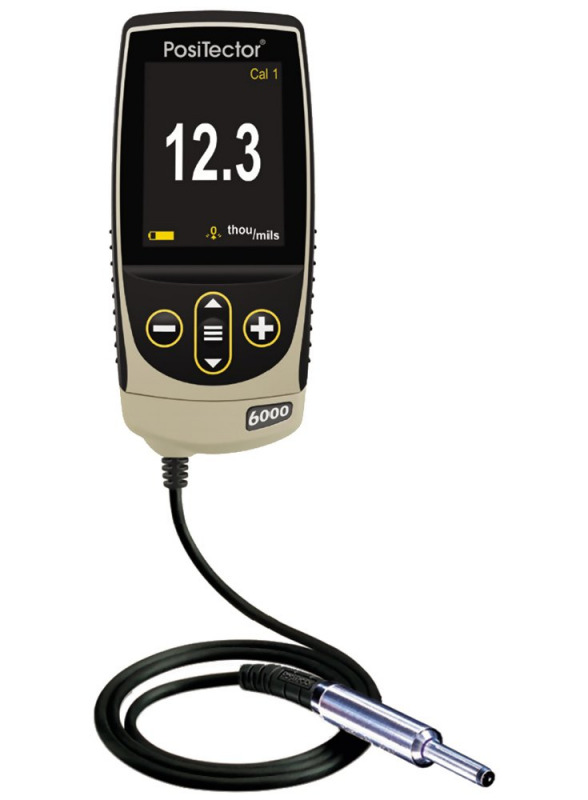

Positector 6000MP Coating Thickness Gauge
With Micro Probe
The POSITECTOR 6000MP is a general-purpose coating thickness gauge designed to deliver fast and precise measurements on both ferrous and non-ferrous metals. Using magnetic induction and eddy current principles, this gauge provides a resolution of 0.1 µm, ensuring accurate and reliable results for coating quality control.
Key Features:
- Models and Measurement Ranges:
- Ferrous metals: 0 – 1143 µm
- Non-ferrous metals: 0 – 625 µm
- Superior Resolution: With a resolution of 0.1 µm, it enables highly precise readings for detailed analysis of coating thickness.
- Compatibility: Designed to work on both ferrous (F) and non-ferrous (N) substrates.
- Standard and Advanced Configurations:
- Standard Model (1): Features a monochrome display, 1000 reading memory, and USB data output.
- Advanced Model (3): Offers a high-contrast colour LCD display, Scan Mode, and Bluetooth output for real-time graphing.
Key Benefits:
- Non-Destructive Measurement: Evaluates coating thickness without damaging the surface, preserving the integrity of the finish.
- High Precision and Speed: Advanced technology delivers real-time, accurate results essential for quality control.
- Versatility and Ease of Use: Its compact design and connectivity options (USB and Bluetooth) facilitate seamless integration into any workflow, whether in the laboratory or in the field.
- Robust Design: Built to withstand demanding conditions, ensuring long-term reliability and minimal maintenance requirements.
Contact us for more information or to place an order. Our expert team is ready to assist you in selecting the coating thickness gauge that best meets your operational and technical needs, ensuring precise and reliable results for your projects.
Easy-To-Use
- Ready to measure—no calibration adjustment required for most applications
- Enhanced one-handed menu navigation
- Flashing display—ideal in a noisy environment
- RESET feature instantly restores factory settings
Durable
- Solvent, acid, oil, water and dust resistant - weatherproof
- Wear-resistant probe tip
- Shock-absorbing, protective rubber holster with belt clip
- Two year warranty on gage body AND probe
Accurate
- Certificate of Calibration showing traceability to NIST included (Long Form)
- Built-in temperature compensation ensures measurement accuracy
- Hi-RES mode increases displayed resolution for use on applications that require greater precision
- Conforms to national and international standards including ISO and ASTM
Versatile
- Fully interchangeable probes are compatible with ALL gage bodies
- Multiple Calibration adjustment options including 1 point, 2 point, known thickness, average zero
- Selectable display languages
- Hi Contrast backlit display for bright or dark environments
- Flip display enables right-side-up viewing
- Extended cables available (up to 75 m/250 ft) for underwater or remote measuring
- Uses alkaline or rechargeable batteries (built-in charger)
Powerful
- Statistics mode continually displays/updates average, standard deviation, min/max thickness and number of readings while measuring
- HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
- FAST mode - faster measurement speed for quick inspection
- USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
- USB mass storage - stored readings and graphs can be accessed using universal PC/ Mac web browsers or file explorers. No software required
- Every stored measurement is date and time stamped
- Software updates via web keep your gage current
- Connects to PosiTector.net
Probe - Feature Comparison Chart
| Feature Comparison Chart | Standard (1) |
Advanced (3) |
| Hi Contrast LCD Display |  Color |
 Color |
| General Features | Standard (1) |
Advanced (3) |
| FAST mode - faster measurement speed for quick inspection | ||
| SCAN Mode - take continuous readings without lifting the probe | - |
|
| Hi-Lo limits audibly and visibly alerts when measurements exceed your specified limits |
|
|
| Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring |
|
|
| Onscreen help, real time graphing, picture prompting and batch notes | - | |
| Memory Features & Capacity | Standard (1) |
Advanced (3) |
| Reading Storage Capacity | 1000 in one group | 250,000 in up to 1000 groups |
| Create meaningful batch names and enter notes directly on the instrument using a familiar on-screen QWERTY keyboard. | - | |
| SSPC PA2 feature set determines if film thickness over a large area conforms to user-specified min/max levels | - | |
| PSPC 90/10 feature determines if a coating system complies with an IMO performance standard for protective coatings | - | |
| Multiple stored calibration adjustments for measuring on a variety of substrate conditions | - | |
| Connection Options | Standard (1) |
Advanced (3) |
| USB port for fast, simple connection to a PC and to supply continuous power. USB cable included | ||
| WiFi technology wirelessly synchronizes with PosiSoft.net, downloads software updates, and connects to mobile devices for expanded functionality | - | |
| Bluetooth Wireless Technology for data transfer to a PC or optional portable printer | - | |
| PosiSoft Solutions | Standard (1) |
Advanced (3) |
| PosiSoft Desktop Software Desktop software for PC or Mac computer | ||
| PosiSoft USB Drive Access your PosiTector as a flash drive. View and print readings and graphs using universal PC/Mac web browsers or file explorers | ||
| PosiSoft.net (formerly PosiTector.net) Cloud-based application offering centralized management of PosiTector readings | ||
| PosiSoft Mobile Gage-based software application featured in all PosiTector Advanced instruments | - |
|
0 Microprobe
|
|||
|---|---|---|---|
  |
Probe Models:
|
F0S | N0S |
| Range: | 0 - 45 mils | 0 - 25 mils | |
| 0 - 1143 µm | 0 - 625 µm | ||
| Accuracy*: | + (0.02 mils + 1%) 0 - 4 mils + (0.1 mils + 3%) > 4 mils |
||
| + (.5 µm + 1%) 0 - 100 µm + (2 µm + 3%) > 100 µm |
|||
| * Accuracies are stated as a fixed value plus a percentage of the gauge's actual reading. | |||
|
45 Microprobe
|
|||
|---|---|---|---|
 |
Probe Models:
|
F45S | N45S |
| Range: | 0 - 45 mils | 0 - 25 mils | |
| 0 - 1143 µm | 0 - 625 µm | ||
| Accuracy*: | + (0.02 mils + 1%) 0 - 4 mils + (0.1 mils + 3%) > 4 mils |
||
| + (.5 µm + 1%) 0 - 100 µm + (2 µm + 3%) > 100 µm |
|||
| * Accuracies are stated as a fixed value plus a percentage of the gauge's actual reading. | |||
| 90 Microprobe | |||
|---|---|---|---|
 |
Probe Models: | F90S | N90S |
| Range: | 0 - 45 mils | 0 - 25 mils | |
| 0 - 1143 µm | 0 - 625 µm | ||
| Accuracy*: | + (0.02 mils + 1%) 0 - 4 mils + (0.1 mils + 3%) > 4 mils |
||
| + (.5 µm + 1%) 0 - 100 µm + (2 µm + 3%) > 100 µm |
|||
| * Accuracies are stated as a fixed value plus a percentage of the gauge's actual reading. | |||
Complete Kit
ALL Gauges are supplied as a complete kit including precision plastic shims, protective rubber holster with belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to NIST, USB cable, two (2) year warranty.
Specifications
| Measuring principle | Magnetic induction principle (Ferrous) eddy-current principle (Non-Ferrous) |
| Resolution | 0,1 µm |
| Display | Backlit & Reversible LCD |
| Data Output | IR & USB - "2" & "3" Models Bluetooth - "3" Models |
| Surface Temp. | Maximum 120 °F / 49 °C |
| Power | 3 AAA batteries, Included |
| Dimensions | 5.75" x 2.5" x 1.2" (146 x 64 x 31 mm) |
| Weight | 5.8 oz. (165 g) without batteries |
| Protection Class | Meets or exceeds IP5X, Solvent, acid, oil, water & dust resistant |
| Warranty | 2 Years |
| Calibration Certificate | Certificate of Calibration showing traceability to NIST included |
