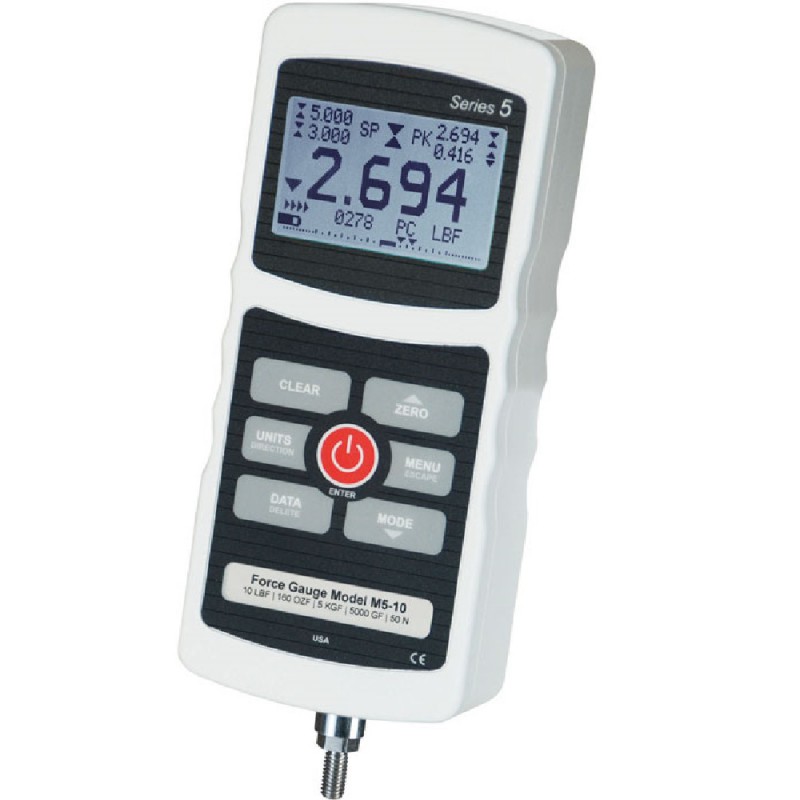

Series-5 Advanced Digital Force Gauge


Made in the USA

The Series-5 Force Gauge is compatible with a wide range of (motorized) stands and attachments to suit your requirement.

This force gauge can measure compression and tension and is available in 16 ranges of 0,5 (0.12lb) to 10 kN (2000lbF).
A sampling rate of 7.000 Hz, an accuracy of ±0,1% of full scale and a resolution of 1/5000 provide a force gauge that is capable of highly accurate force measurement in a wide range of applications and industries.
Its easy menu navigation makes for efficient use of the extensive features and configurable parameters.

The Series-5 Force Gauge is equipped with a memory for up to 1000 measurements with statistical calculations, average force over time, external trigger modes and data output.
Data connectivity is provided through RS-232, Mitutoyo (Digimatic), USB or analog outputs.

The Digital Mark-10 Series Force Gauge range is available in a variation of 5 gauges with each gauge type available in a scale of force ranges.
Each type of gauge has its own specifications, the table below shows the main specifications of each gauge type.
All gauges types are equipped with a rechargeable battery, a back lit display and reversible aluminum housing.
The Series-# Digital Force Gauges are designed  to be used for measuring tension and compression forces.

All gauges except for the Series-2 come with MESUR® Lite data acquisition software.
MESUR® Lite tabulates continuous or single point data. One-click export to Excel allows for further data manipulation.

Mark-10 Digital Force Gauges are versatile instruments, in general they are combined with additional equipment to a purposely build system to perform the required tasks.

We are happy to assist you in finding the most suitable configuration for your needs. Please contact us for more information.


Features
  • 3 Year Warranty
  • ±0,1% accuracy
  • High-speed 7.000 Hz peak sampling rate
  • 5 selectable units of measurement
  • Programmable set points, with alarms and outputs
  • 1.000-point data memory with statistics and outputs
  • Averaging mode - calculates average readings over time
  • Large backlit graphic display
  • Live load bar graph with set point markers
  • Peak readings always displayed
  • Reversible housing supports top or bottom use
  • USB, RS-232, Mitutoyo, and analog output. Automatic data output via USB/RS-232
  • External trigger mode - for switch contact testing or remotely stopping display update
  • Includes MESUR® Lite data acquisition software
  • Configurable audio alarms and key tones
  • Compatible with Mark-10 test stands, grips, and software.
  • Includes NIST Traceable Calibration Certificate
  • Password protection, configurable for individual keys

Force Ranges, Capacity & Resolutions
ModellbFozFkgFgFNkNmN
M5-0120,12 x 0,000022 x 0,0005-50 x 0,010,5 x 0.0001-500 x 0,1
M5-0250,25 x 0,000054 x 0,001-100 x 0,021 x 0,0002-1000 x 0,2
M5-050,5 x 0,00018 x 0,002-250 x 0,052,5 x 0,0005-2500 x 0,5
M5-22 x 0,000532 x 0,011 x 0,00021000 x 0,210 x 0,002--
M5-55 x 0,00180 x 0,022,5 x 0,00052500 x 0,525 x 0,005--
M5-1010 x 0,002160 x 0,055 x 0,0015000 x 150 x 0,01--
M5-2020 x 0,005320 x 0,110 x 0,00210000 x 2100 x 0,02--
M5-5050 x 0,01800 x 0,225 x 0,00525000 x 5250 x 0,05--
M5-100100 x 0,021600 x 0,550 x 0,0150000 x 10500 x 0,1--
M5-200200 x 0,053200 x 1100 x 0,02-1000 x 0,21 x 0,0002-
M5-300300 x 0,14800 x 2150 x 0,05-1500 x 0,51,5 x 0,0005-
M5-500500 x 0,18000 x 2250 x 0,05-2500 x 0,52,5 x 0,0005-
M5-750750 x 0,512000 x 10375 x 0,2-3750 x 23,75 x 0,002-
M5-10001000 x 0,516000 x 5500 x 0,2-5000 x 25 x 0,002-
M5-15001500 x 124000 x 20750 x 0,5-7500 x 57, 5 x 0,005-
M5-20002000 x 132000 x 201000 x 0,5-10000 x 510 x 0,005-

Load Cell Thread Specifications
GaugeM5-012 – M5-100M5-200 – M5-500M5-750 – M5-2000
Load Cell Thread #10-32 UNF5/16-18 UNC1/2-20 UNF F + 2x 10-32 UNF F
Hex5/16 [7.94]11/32 [8.74]-

LCD Display

Series 5 Display


Reversible Housing

Series 5 Display


Complete Kit

Series 5 force gauges are shipped as shown at left, and include the following accessories:

  • Extension rod *
  • Hook *
  • Cone *
  • Chisel *
  • V-Groove *
  • Flat *
  • Coupling *
  • Thread adapter *
  • Carrying case
  • USB cable
  • AC adapter
  • Battery
  • Certificate of calibration with data

* The specific accessory depends on the force gauge model. See Included Accessories section for details.



Included accessories
PictureAccessoryM5-012 - M5-20M5-50 - M5-100M5-200 - M5-500M7-750 - M5-1000M5-1500 - M5-2000
Extension rodExtension RodG1024G1024G1031G1031G1031
ConeConeG1026G1026G1033G1033G1033
ChiselChiselG1025G1025G1032G1032G1032
V-grooveV-GrooveG1027G1027G1034G1034G1034
FlatFlatG1029G1029G1036G1036G1036
HookHookG1028G1038G1035G1042-
CouplingCoupling-G1039G1037--
Thread AdapterThread Adapter---G1041G1041

Dimensions
Dimensions-Series-5


Series-5 Force Gauges models M5-012 tot M5-500 have a different housing size from the larger models.

All dimensions are noted in Inches with metric sizes in (mm) behind.

Caution: there are different thread connection sizes on the rear and at the business end of the various devices.

Dimensions-Series-5


Series-5 model M5-750 and up have larger dimensions.

All dimensions are noted in Inches with metric sizes in (mm) behind.

Caution: there are different thread connection sizes on the rear and at the business end of the various devices.


Video


Accessories

Category Mark-10 Attachments


More details

Category  Mark-10 Attachments 0

Cic-Force Calibration Force Gauge


  • Easy planning of calibration
  • Short turnaround
  • Exclusively in accordance with Deutscher Kalibrierdienst (DKD) working standards, class F1; calibration-no: 19026 - 07

More details

Cic-Force Calibration Force Gauge 127037

Mesurgauge / Mesurgauge plus Load & Travel Analysis Software


  • Sends data from a force or torque gauge and travel display to a PC for further analysis

More details

Mesurgauge / Mesurgauge plus Load & Travel Analysis Software 126514

Double Handle Grip Double Handle Grips for Force Gauges


  • Double Handle Grips for Force Gauges

More details

Double Handle Grip Double Handle Grips for Force Gauges 126084

Single Handle Grips For Force Gauges


  • Single Handle Grips For Force Gauges

More details

Single Handle Grips For Force Gauges 126085

Specifications
Accuracy±0,1% of full scale ±1 digit
Sampling Rate7.000 Hz
PowerAC or rechargeable battery. Low battery indicator appears when battery level is low, and gauge powers off automatically when power reaches critical stage.
Battery LifeBacklight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Measurement UnitslbF,ozF,gF,kgF,N,kN,mN (depending on model)
Outputs USB / RS-232: Fully configurable up to 115.200 baud. Includes Gauge Control Language 2 for full computer control.
Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatibile devices.
Analog: ±1 VCD, ±0,25% of full scale at capactiy
General Purpose: Three open drain outputs, one input
Set Points: Three open drain lines
Configurable settingsDigital filters, outputs, automatic output (via USB/RS-232), automatic shutoff, default settings, averaging mode, external trigger, passwords, key tones, audio alarms, backlight, calibration
Safe Overload200% of full scale (display shows “OVER” at 110% and above)
Weight (gauge only)M5-012 - M5-100: 0,45 kg [1.0 lb]
M5-200 - Mg-500: 0,54 kg [1.2 lb]
M5-750 - M5-2000: 0,8 kg [1.8 lb]
Shipping WeightM5-012 - M5-100: 1,4 kg [3 lb]
M5-200 - M5-500: 1,6 kg [3.2 lb]
M5-750 - M5-2000: 2,3 kg [5 lb]
Environmental requirements0 - 40°C [40 – 100°F], max. 96% humidity, non-condensing
Included AccessoriesCarrying case, chisel, cone, V-groove, hook, flat, extension rod, AC adapter, battery, USB cable with driver, MESURgauge DEMO software, NIST-traceable certificate of calibration with data
Warranty3 years

Force Gauge comparison table
 Series-7 ProfessionalSeries-5 AdvancedSeries-4 PerformanceSeries-3 BasicSeries-2 Economical
Accuracy±0,1%±0,1%±0,2%±0,3%±0,5%
Sampling rate14.000 Hz7.000 Hz3.000 Hz2.000 Hz500 Hz
Resolution1/50001/50001/20001/10001/1000
Units of measurementlbF, ozF, gF, kgF, N, kN, mN (depending on model)lbF, ozF, gF, kgF, N, kN, mN (depending on model)lbF, ozF, gF, kgF, N, kN, mN (depending on model)lbF, gF, kgF, N (depending on model)lbF, kgF, N
OutputsUSB, RS-232, Mitutoyo, AnalogUSB, RS-232, Mitutoyo, AnalogUSB, RS-232, Mitutoyo, AnalogUSBNo
- RS-232Configurable up to 230.400 baudConfigurable up to 115.200 baudConfigurable up to 115.200 baudNoN/A
- USBConfigurable up to 230.400 baudConfigurable up to 115.200 baudConfigurable up to 115.200 baudConfigurable up to 115.200 baudN/A
- Mitutoyo (Digimatic)Serial BCD suitable for all Mitutoyo SPC-compatible devicesSerial BCD suitable for all Mitutoyo SPC-compatible devicesSerial BCD suitable for all Mitutoyo SPC-compatible devicesNoN/A
- Analog±1 VDC, ±0,25% FS at capacity. Positive for compression, negative for tension±1 VDC, ±0,25% FS at capacity. Positive for compression, negative for tension±1 VDC, ±0,25% FS at capacity. Positive for compression, negative for tensionN/ANo
- General purpose I/OThree open drain outputs, one inputThree open drain outputs, one inputThree open drain outputs, one inputN/ANo
- Set pointThree open drain linesThree open drain linesThree open drain linesN/ANo
Mesur-Lite software includedYesYesYesYesNo
Data output functionalityAutomatic output or by pressing DATA button, or requesting from a PC or other device.Automatic output or by pressing DATA button, or requesting from a PC or other device.By pressing DATA button, or requesting from a PC or other device (currently displayed reading only).By pressing DATA button, or requesting from a PC or other device (currently displayed reading only).N/A
ASCII command set for external controlFull command setFull command set“?” only (request current reading)“?” only (request current reading)N/A
Interface w/MESUR® gauge and MESUR® LiteFull communicationFull communicationSingle point or continuous data output onlySingle point or continuous data output onlyN/A
Interface with ESM303 / 750 / 1500 test standsFull communication, including PC controlFull communication, including PC controlLimited to force data, overload protection, and force set pointsN/ANo
Data memory5.000 readings, with output1.000 readings, with output50 readings, with outputNoNo
Data memory deletionAny individual data point, or clear allAny individual data point, or clear allAny individual data point, or clear allN/AN/A
Statistic calculations and output to PCMax, min, mean, std. dev., number of readings, with outputMax, min, mean, std. dev., number of readings, with outputMax, min, mean, std. dev., number of readings, with outputN/AN/A
Break detectionYesNoNoNoNo
1st / 2nd peak detectionYesNoNoNoNo
Programmable footswitch command stringYesNoNoNoNo
Averaging modeYesYesNoNoN/A
External trigger modeYesYesNoNoNo
Analog load bar graph shown on displayYesYesYesYesNo
Set points (for pass / fail indication)Yes with high / low indicators, markers on analog bar graph, and outputsYes with high / low indicators, markers on analog bar graph, and outputsYes with high / low indicators, markers on analog bar graph, and outputsYes with high / low indicators, markers on analog bar graph, and outputsNo
Password protectionYes, for calibration and individual keysYes, for calibration and individual keysNoNoNo
Peak readings always displayedYesYesYesYesNo (Peak mode must be selected)
Programmable audible tonesYesYesYesYesNo
Calibration procedureConfigurable number of data points (up to 10 in each direction)Configurable number of data points (up to 10 in each direction)Configurable number of data points (up to 10 in each direction)Configurable number of data points (up to 10 in each direction)Configurable number of data points (up to 10 in each direction)
Overload outputsDedicated pins for tension and compressionDedicated pins for tension and compressionDedicated pins for tension and compressionNoN/A
Safe overloads150% of full scale (display shows warning at 110% and above)150% of full scale (display shows warning at 110% and above)150% of full scale (display shows warning at 110% and above)150% of full scale (display shows warning at 110% and above)150% of full scale (display shows warning at 110% and above)
