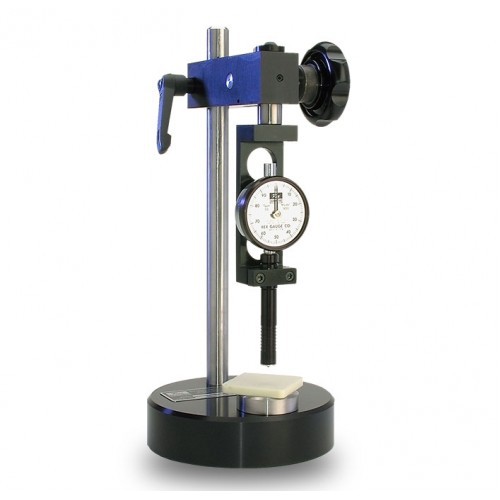

RX-OS-4 Durometer Test Stand for Type OO & OOO


Made in the USAThe RX-OS-4 Test Stand is designed for use with our RX type OO & OOO durometers. The stand, used in conjunction with our RX durometers increases repeatability while eliminating operator error.

The stand features a load weight for the proper testing pressure as noted in ASTM D2240, and a quick-lock column for easy adjustment.

The OS-4H features an a dampener that lowers the durometer at the same rate for each test, resulting in superior repeatability for all durometer tests

*Durometer Sold Separately
Compatible with RX-1600 & RX-DD Durometers


Features
  • Eliminates operator error in the OO & OOO scales
  • Stainless steel and anodized aluminum construction
  • Compact size - 330mm (13") high x 153mm (6") wide
  • Total Weight approximately 4 kg (9 lbs)
  • Made in the U.S.A.
  • Optional Dampener further increases repeatability

Related Products

RX-1600 Precision Durometer


  • Includes NIST-Traceable Calibration Certificate
  • Conforms to ASTM D-2240
  • Full 360 degree sweep

More details

RX-1600 Precision Durometer

RX-DD Digital Durometer


  • Includes NIST-Traceable Calibration Certificate
  • One year warranty
  • Optional Removable Stainless Steel Barrel for Medical and Food Applications

More details

RX-DD Digital Durometer

Specifications
Sample ClearanceHeight: 65 mm To Specimen Holder
Depth: 80 mm Durometer Center To Shaft

Buy Now
Products

Product
Price
Quantity
130165
RX-OS-4 Durometer Test Stand
€ 1.219,00
132601
RX-OS-4-E Test Stand for AD/DD Durometers
€ 1.219,00
132597
RX-OS-4H-E Test Stand With Dampener for AD/DD Durometers
€ 1.289,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
