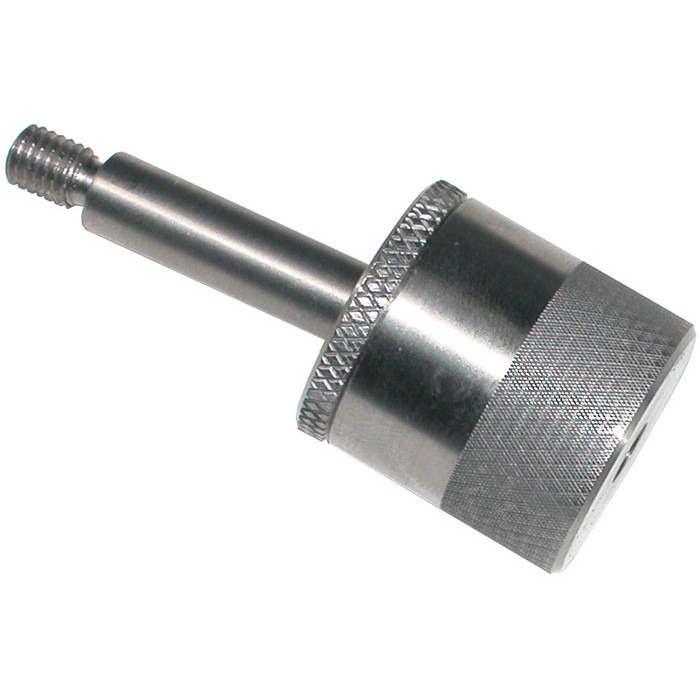

G1018 Swivel Adapters


Made in the USAG1018 swivel adapters are used to improve alignment between sample/fixture and test equipment when required.
They are capable to compensate for a small angle using a ball joint.

Available in 2 sizes these adapters are only suitable for tensile testing.

G1018-1 is equipped with a male and female thread of #10-32 and has a capacity of 1000 N.
G1018-2 is equipped with a male and female thread of 5/16-18 and has a capacity of 2500 N.






Features
  • Swiveling adapter, for use between certain grips and force gauges.
  • Capacity G1018-1: 1000 N
    Capacity G1018-2: 2500 N
  • Designed for tensile (pull) testing applications only.

Dimensions
G1018 Swivel Adapter
Dimensions-G1018 Swivel Adapter


ModelCapacity (N)Weight (g)AB
G1018-1100050#10-32M#10-32F
G1018-225001205/16-18M5/16-18F
Sizes are noted in Inch with [mm] behind

Specifications
Capacity:G1018-1: 1000 N (200 lbF)
G1018-2: 2500 N (500lbF)
Size:52.3 (L) x 20.3 mm (D)
Weight:G1018-1: 50 grams
G1018-2: 120 grams
Thread:G1018-1: #10-32 UNF
G1018-2: 5/16-18 UNC

Related Products

Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands



More details

Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands

G Series Thread Adapters & Couplings



More details

G Series Thread Adapters & Couplings

G1024-G1031 Extension Rods


  • Suitable for tension and compression testing (not reconmended for compression testing see general)
  • Capacity 1000/2500 N
  • Male and Female thread

More details

G1024-G1031 Extension Rods

Downloads

Buy Now
Products

Product
Price
Quantity
130807
G1018-1 Swivel adapter, #10-32M to #10-32F
€ 67,00
130808
G1018-2 Swivel adapter, 5/16-18M to 5/16-18F
€ 67,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
