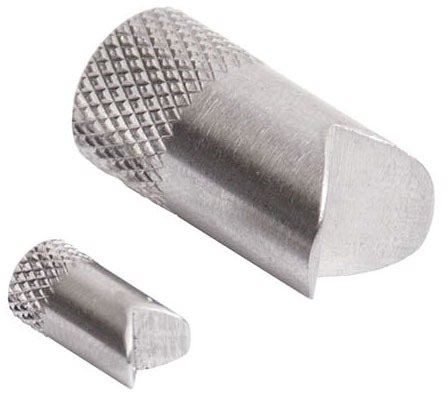

G1027 - G1034 V-Groove Attachments


Made in the USAThe G1027 and G1034 V-groove heads are suitable for performing compression tests on round or odd shaped test samples.
These attachments are also part of the basic kit for most Series # Mark-10 force gauges.

The V-groove heads are available in 2 sizes with a capacity of 1000 and 2500 N.


Features
  • Available in 2 sizes
  • 200 lb / 500 lb capacity,
  • Compression testing

Dimensions
G1027 - G1034 V-shape attachment
Dimensions-G1027 - G1034 V-shape attachment


ModelA (mm)ØB (mm)C (mm)D (mm)
 12,76,4#10-32F2,0
 25,412,75/16-18F6,4

Specifications
ModelCapacity (N)Weight (g)
G102710001,8
G1034250018,1

Related Products

G1028-G1038-G1035-G1042 Hooks


  • General tensile testing
  • Capacities available from 100 N up to 4500 N
  • Select from four sizes, snap hook is also available

More details

G1028-G1038-G1035-G1042 Hooks

G1025-G1032 Chisels


  • Available in 2 sizes
  • For compression testing
  • Capacity 1000 N / 2500 N

More details

G1025-G1032 Chisels

G1024-G1031 Extension Rods


  • Suitable for tension and compression testing (not reconmended for compression testing see general)
  • Capacity 1000/2500 N
  • Male and Female thread

More details

G1024-G1031 Extension Rods

G1026-G1033 Cones


  • Available in 2 sizes
  • Capacity 1000 and 2500 N
  • Suited for puncture and compression testing

More details

G1026-G1033 Cones

G1029-G1036 Flat Head


  • General compression testing
  • Capacity 1000 N / 2500 N
  • Available in 2 sizes

More details

G1029-G1036 Flat Head

G Series Thread Adapters & Couplings



More details

G Series Thread Adapters & Couplings

Downloads

Buy Now
Products

Product
Price
Quantity
130582
G1027 V-Groove Tip, #10-32F
€ 19,00
130823
G1034 V-Groove Tip, 5/16-18F
€ 24,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
