G1111 Ribbon Wrap Grip
The G1111 Ribbon Wrap Grip is specifically developed for the testing of braided materials, tapes, and textile webbing employed in shipping, construction, and various industrial applications.
It boasts a maximum test sample width of 80 mm and a capacity of 10 kN.
To connect it to a test stand, force gauge, or load cell, the standard eye-end mounting is utilized; please note that it does require an eye-end adapter for proper mounting.
This grip is suitable for conducting tests in accordance with ASTM D6775 and other relevant standards.
The G1111 package includes an eye-end anchor pin as well as two anchor pins designed for securing a sample drum.
- Secures webbing, tape, and braided materials for pull testing, as per ASTM D6775
- Secures samples up to 80 mm wide
- Features eye-end mounting

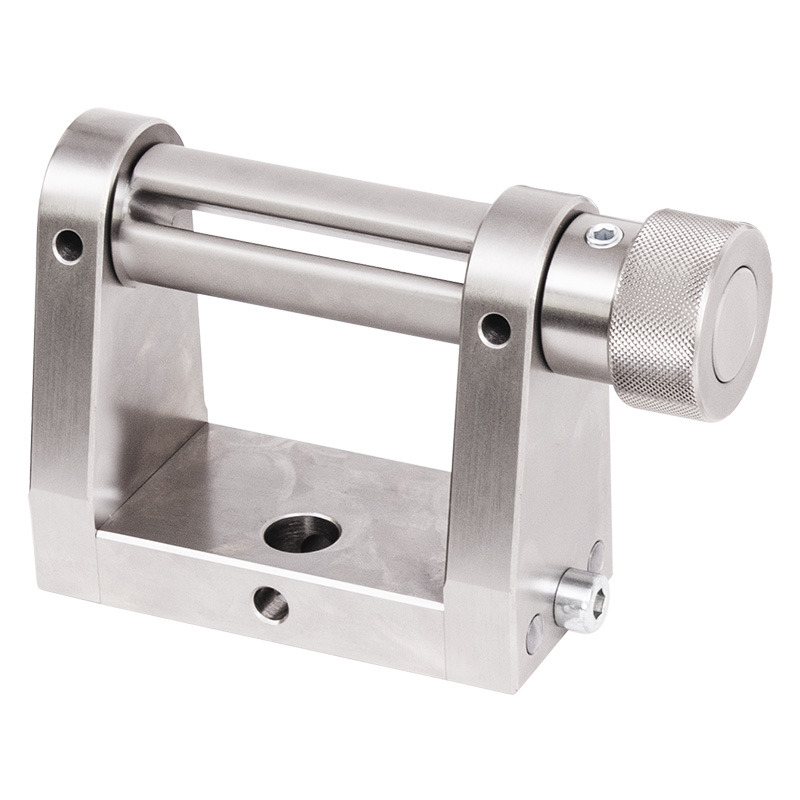

The G1111 ribbon wrap grip is shipped as shown at left, and includes the following accessories:
- Fixture assembly
- Eye end anchor pin
- 2 Anchor pins for blocking the sample drum
All sizes are noted in Inches with metric sizes in [mm] behind.
| Capacity | 10 kN |
| Weight | 2,4 kg |
| Shipping Weight | 3,2 kg |
