ES05 Manual Compression Force Test Stand

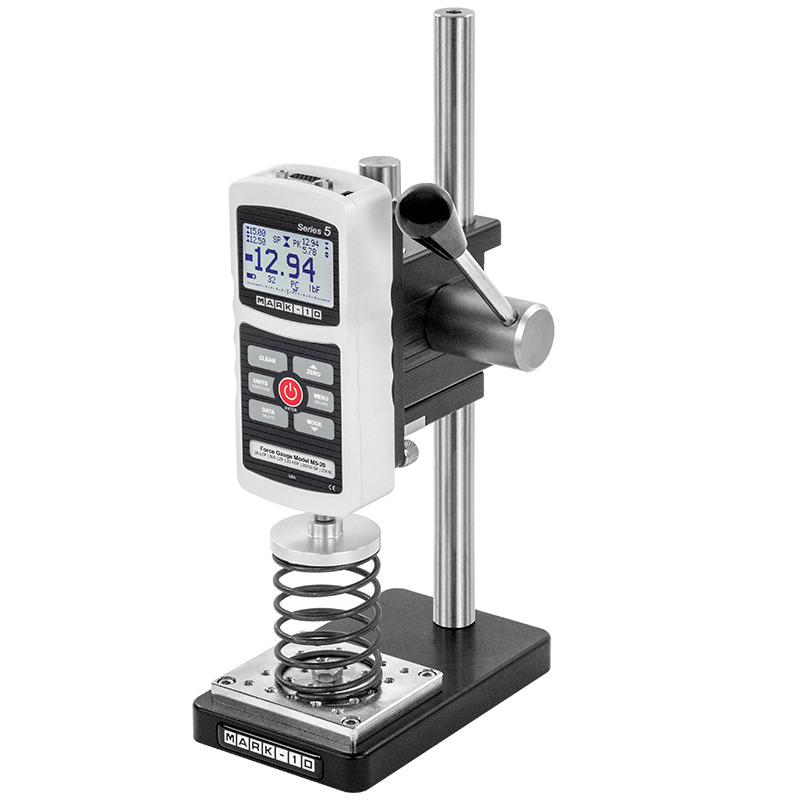

Made in the USABuilt for compression testing the Basic ES05 Manual Force Test Stand is a compact, spring loaded, lever operated compression test stand that measures up to 150 N.
The ES05 has a test range of up to 38mm, to adapt to different size samples the lever mechanism can be repositioned along the length of the column.

The ES05 is designed for use with the Mark-10 Force Gauges, gripping fixtures and Eye end adapters. Its compact footprint and low weight makes it Ideal for small spaces, crowded work benches, field auditing or mobile work spaces.

Typical applications include switch contact activation testing, small spring testing, peel testing, and more.
It is recommended to add the optional AC1060 mounting plate as it ensures axial alignment between the force gauge loading shaft and the threaded holes in the base.

The ES05 can be ordered with mounting kits that allow third party force gauges to be used in a test setup.





Features
  • Spring-loaded lever operation is convenient for repetitive testing requirements
  • Lever mechanism can be repositioned along the length of the column
  • Mounting holes for bench mounting
  • Compact size, light weight
  • Optional base plate with 25 #10-32 threaded holes for fixture mounting
  • Compatible with all Mark-10 Force Gauges, accessories, grips and fixtures
  • Competitor force gauge mounting kits available
  • 3 Year Warranty

Manual test stand comparison
ModelForce capacityMaximum test travelLoading methodTravel rateMaximum, sample clearance
ES10500N229mmSpring loaded lever26,7mm / lever rev.229mm
ES10500N229mmSpring loaded lever26,7mm / lever rev.229mm
ES20500N229mmTop mounted hand wheel1,5mm / wheel rev.229mm
ES301000N330mmSide mounted hand wheel1,3mm / wheel rev.356mm
TSA750(H)3750N95mm with travel stops
152 without travel stops
Lever with rack & pinion, lever can be positioned in 30° increments76,2mm / lever rev.Vertical 267mm
Horizontal 368mm
TSB100500N95mm with travel stops
152 without travel stops
Lever with rack & pinion, lever can be positioned in 30° increments76,2mm / lever rev.330mm
TSC1000(H)5000N89mmInline hand wheel2,5mm / wheel rev.Vertical 254mm
Horizontal 330mm
TSF(H)5000N102mmSide mounted hand wheel0,34mm / wheel rev.Vertical 356mm
Horizontal 459mm
- Maximum travel and/or clearence depends on the grips or fixtures used during testing. The dimensions indicate distances without the use of grips or fixtures. - Column extensions are available for all test stands except ES05, ES10 and ES20. - Models with (H) are available in vertical and horizontal versions

Video


Complete Kit

The ES05 Test Stand is shipped including the following accessories:

  • 4 Thumb screw for force gauge
  • An Allen wrench set


Dimensions
Dimensions-ES05


ES05 Manual Compression Force Test Stand


All sizes in inch and (mm)


Accessories

Category Mark-10 Attachments


More details

Category  Mark-10 Attachments 0

Specifications
Capacity150 N (30 lbF)
Stroke38mm (1.5")
DimensionsRefer to dimensions above
Weight2,7 kg (6 lb)
Shipping weight3,2 kg (7 lb)
