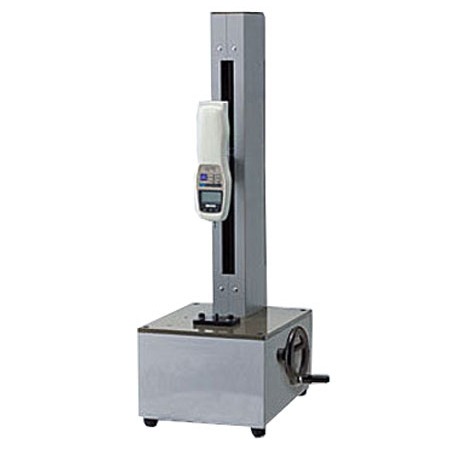

HV-Series High Capacity Precision Handwheel Test Stands
Discover the HV-300, HV-500, and HV-750 models, handwheel test stands that offer advanced solutions for measuring push and pull forces. Designed to handle oversized materials and perform tests requiring an extended range of movement, these stands ensure precise and repeatable results in each test.
Key Features:
- Ample Space and Long Stroke: Ideal for materials that need considerable space and extensive displacement during testing.
- Precise Control: The manual wheel ensures consistent speed and maximum control, ideal for applications that demand precision in force measurement.
- Compatibility with Force Gauges: Although the DS2 & Z2 force gauges are not included, these stands are designed to integrate perfectly with them, facilitating setup and enhancing the equipment's flexibility.
Benefits of Using the HV-300, HV-500, and HV-750:
- Versatility in Testing: Capable of performing both compression and tension tests, adapting to a variety of testing requirements.
- Ease of Use: The user interface is designed to facilitate quick changes between samples, improving efficiency in high-performance environments.
Contact us for more details on how the HV-Series test stands can adapt to your operational needs and enhance your force measurement processes.
Features
- Superior Quality Control: Each test stand is equipped with features that ensure compliance with international standards of precision and repeatability.
- Durable Construction: Built with high-strength materials to offer prolonged performance even in the most demanding conditions.
- Technical Support: Access to expert technical support to maximise the functionality and lifespan of your equipment.
- Variety of Models: The HV series offers models from 1500N to 3400N capacity, with and without a digital distance meter, allowing precise adaptation to your specific measurement needs.
- Precision and Resolution: All models guarantee a resolution of 0.01 mm and an accuracy of 0.02 mm, ensuring reliable and accurate measurements.
- Enhanced Functionality: The 'S' models include a digital distance meter for more detailed tracking of displacement during tests.
Dimensions
All sizes are in mm and (inch)
All sizes are in mm and (inch)
All sizes are in mm and (inch)
| Model | Capacity | Stroke | Digital distance meter | Clearence | Travel rotation | Accuracy | Resolution |
|---|---|---|---|---|---|---|---|
| HV-300 | 1500 | 430 mm | No | 229 mm | 2 mm | 0.02 mm | 0,01 mm |
| HV-300S | 1500 | 430 mm | Yes | 229 mm | 2 mm | 0.02 mm | 0,01 mm |
| HV-500 | 2500 | 430 mm | No | 229 mm | 2 mm | 0.02 mm | 0,01 mm |
| HV-500S | 2500 | 430 mm | Yes | 229 mm | 2 mm | 0.02 mm | 0,01 mm |
| HV-750 | 3400 | 430 mm | No | 229 mm | 6 mm | 0.02 mm | 0,01 mm |
| HV-750S | 3400 | 430 mm | Yes | 229 mm | 6 mm | 0.02 mm | 0,01 mm |
| Digital display comes with push button for inch/mm, zero set and on/off | |||||||
Related Products
DS2 Digital Force Gauge
- Real time and peak mode (selectable)
- lb, kg, and Newton units are push-button selectable
More details
ZT Digital Force Gauge with Luminescent EL Display
- Luminescent display is highly visible in dark locations
- Capacity up to 5000 N/Kg (push/pull)
- kgf, lbf, and N units are selectable
More details
DST Digital Force Gauge with 30,000 / sec sampling rate
- Ergonomic, durable, heavy-duty metal construction
- 30,000/sec sampling rate
- Backlit LCD reversible display with user-friendly menus
More details
PS Mechanical force gauge for accurate measurements
- High accuracy mechanical gauge with ± 0.1 % full scale
- Easy to use
- Peak Force Hold function captures transient values and peaks
More details
FB Mechanical force gauge
- Ideal for precision tension and compression measurements in all environments
- Real Time and Peak Force display
- Free manufacturer´s calibration report
More details
Accessories
Category Force Gauge Accessories
Large assortment of grips, attachments and other accessories for analog and digital force gauges.
More details
Specifications
| Capacity | HV-300: 150 Kg (300 lbs) HV-500: 250 Kg (500 lbs) HV-750: 340 Kg (750 lbs) |
| Stroke | 430mm |
| Weight | HV-300: 27 kg HV-500: 30 kg HV-750: 40 kg |
| Warranty | 3 years |
