TS481 Strain Gauge Measurement Amplifier

TS481 Strain Gauge Measurement Amplifier


TS481-19
(19" Rack Mounted)

TS481-M
(Surface Mounted)

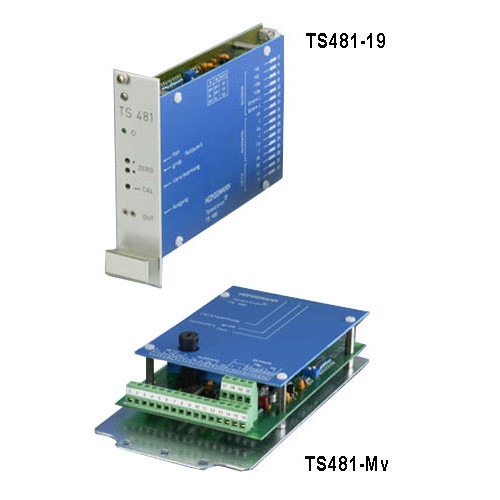

The TS481 Strain Gauge Amplifier Card is designed for use with the RFS/NWS & WTS Tension Sensors. It is offered in two versions: Surface Mounted (M) and 19" Rack Mounted (19).


Features
  • Galvanic Isolation minimizes the chance for signal interference, including ground faults
  • Optional "Explosion Proof" configuration
  • Provides accuracy of ±0.1%
  • 0 - 10VDC analog output is standard. A current output option can be added providing 0-20/4-20 mA (option A)
  • User-enabled "damping function" eliminates tension fluctuations

Related Products

HCC-Easy Data Transfer & Analysis Program For Honigmann Tension Sensors


  • Real time display of measured values graphically and digitally, indicating the actual value in tension units
  • Export data in ASCII format

More details

HCC-Easy Data Transfer & Analysis Program For Honigmann Tension Sensors

Specifications
Sensor TypesStrain Gauge, full bridge
Impedance RangeMinimum 150 Ohms
Overall Accuracy0.1% (any portion of the range)
Power Required115 VAC, 50/60 Hz
For 230 VAC version add "-230" suffix (i.e. TS481-M-230)
Power Supply to Sensor10 VDC, regulated (±5 VDC referenced to ground)
Calibration Range60 to 450%
Isolation between I/OGalvanic Isolation using integrated DC-DC converter between input power & output signals
Power Consumption100 mA @ 24 VDC
Temperature Coefficient< 0.05% per °C
Mounting StyleTS481-19: Rack Mount
TS481-M: Surface Mount
Connector TypesTS481-19: Blade Contacts, 32 poles per DIN 41612D
TS481-M: Screw Terminals
Dimensions (in mm)TS481-19: 100 x 1600 (3HE/6TE)
TS481-M: 107 (L) x 207 (W) x 40 (H)
WeightTS481-19: 400 grams
TS481-M: 600 grams
