DM-865 Analog Dial Thickness Gauge | DM-865

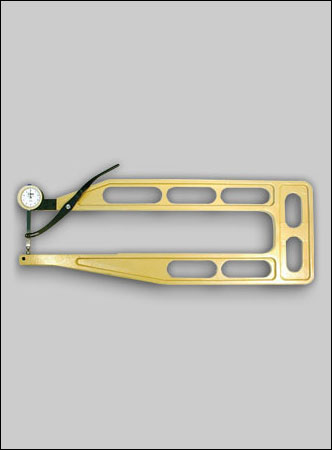

Made in GermanyThe analog dial thickness gauge DM-865 determines the thickness of various materials, like leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, etc. The DM-865 thickness gauge is self closing and guarantees high accuracy and resolution.


Features
  • Opening by lever and self-closing
  • Spring force measurement

Available feelers
When ordering the DM-865, please indicate your desired feeler, for example "DM-865-B" for the gauge with feeler "B". Only your desired feeler shape is included.


Available models
Model:Range:Resolution:Jaw depth:
DM-8200 - 25 mm0.1 mm200 mm
DM-820-10 - 50 mm0.1 mm200 mm
DM-8300 - 25 mm0.1 mm300 mm
DM-830-10 - 50 mm0.1 mm300 mm
DM-8350 - 75 mm0.1 mm350 mm
DM-8400 - 100 mm0.1 mm400 mm
DM-8500 - 25 mm0.1 mm500 mm
DM-850-10 - 50 mm0.1 mm500 mm
DM-8650 - 25 mm0.1 mm650 mm
DM-865-10 - 50 mm0.1 mm650 mm

Specifications
Resolution:0.1 mm
Measuring range:25 mm
Depth of jaw:650 mm
Measuring pressure:2 N
Measuring principle:Self closing
Feeler Shape:A/B/C/D/E/F/G/H/I/M
Weight, net (gross):1850 g (1950 g)
