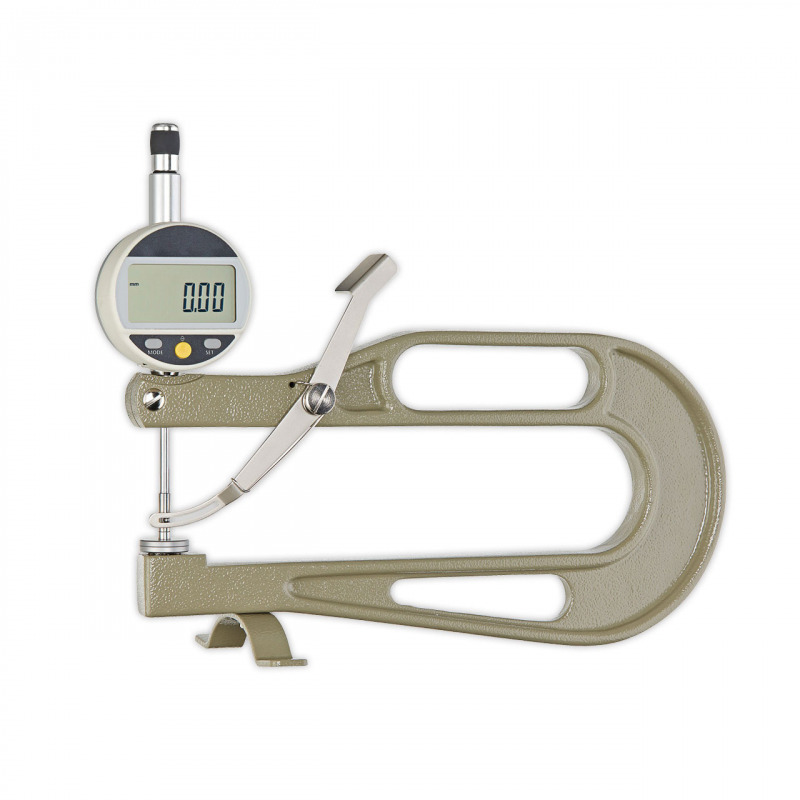

JD-200 Digital Thickness Gauge
JD-200 thickness gauge that measures thickness by spring force. Typical applications include leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic and more. It comes with an LCD display where measurements are displayed in mm or in inches.
Measuring range 0 - 10 mm
Resolution 0.01 mm
- LCD display with user selectable units of measurement (mm or inch)
- Resolution 0.01 mm
- Includes swing-out foot for on-table operation
- Dial gauge model: Sylvac S229
- Operating by lifting device - self closing
- Output signals: – USB – RS 232
- The JD-200 exists in 5 versions with different feelers according to your needs
To order, please indicate the desired feeler, e.g. JD-200-B for gauge with feeler >b<. This means that NOT all feelers are included in the package!
Feeler: A
For rubber, felt*, soft materials*, nonwovens*, etc.
*Meets no DIN EN ISO standard Customized feeler type >a< with diameter 30 to 56 mm are available on request at extra charge
Feeler: B
For rubber, felt*, soft materials*, nonwovens*, etc.
*Meets no DIN EN ISO standard
Feeler: C
For soft leather, cardboard, paper, foils, etc.
Feeler: D
For hard leather, plywood, fiberboard, etc.
Feeler: E
For sheet metal, etc.
| Model | Measuring Range | Resolution | Depth of jaw |
|---|---|---|---|
| JD-200 | 10 mm 0.4 Inch |
0.01 mm 0.001 Inch |
200 mm |
| JD-50 | 10 mm 0.4 Inch |
0.01 mm 0.001 Inch |
50 mm |
| JD-100 | 10 mm 0.4 Inch |
0.01 mm 0.001 Inch |
100 mm |
| JD-200-25 | 25 mm 1 Inch |
0.01 mm 0.001 Inch |
200 mm |
| Measuring range: | 0 – 10 mm / 0 – 0.4 Inch |
| Resolution: | 0.01 mm / 0.001 Inch |
| Depth of jaws: | 200 mm |
| Display: | LCD 6 digit, 8.5 mm high |
| Measuring principle: | Capacitive (Sylvac) |
| Measuring pressure: | 1.9 N ± 20 % |
| Feeler shape: | A/B/C/D/E |
| Lifting device: | Operating by lifting device - self closing |
| Data output: | USB, RS 232, galvanic isolation |
| Power supply: | 3 V Lithium, CR 2032 |
| Temperature range: | 10 – 45 °C |
| Weight, net: | 700g (1150 g) |
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
