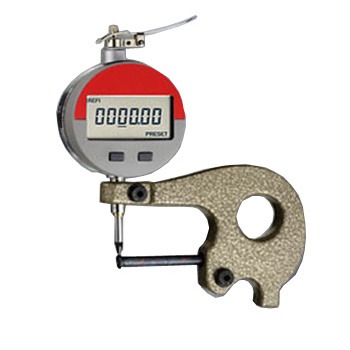

JD-50-W Thickness gauge for measuring tube walls


Made in GermanyThe digital thickness gauge series has the benefit of an easy to read LCD display, combined with the highest accuracy. The user can select either to display thickness in mm or in inches.

The JD-50-W model is equipped with a collar Ø 1 mm for measuring tubes still have a burr from parting. Measurement is done by a spring force. Opening by lifting device (lever) - self closing.



Features
  • The ground feeler is equipped with a collar Ø 1 mm for measuring tubes still have a burr from parting
  • Resolution 0.01 mm (0.001 inch)
  • RS 232 output for data collection
  • Opening by lifting device (lever) - self closing thickness gauge
  • Dial gauge model: Sylvac S 229
  • User selectable units mm and inch

Specifications
Resolution:0.01 mm / 0.001 inch
Measuring range:0 - 10 mm / 0.4 inch
Depth of jaw:50 mm
Display:LCD 6 digit, 8.5 mm high
Measuring principle:Capacitive (Sylvac)
Measuring pressure:< 1.4 N
Feeler shape:Ø 1 mm
Lifting device:Operating by lifting device - self closing
Data output:RS 232, optical coupling
Power supply:Battery, 3 V Lithium, CR 2032
Temperature:10 - 45°C
Weight, net:300 g

Related Products

Cic-Thickness Thickness Gauge Calibration


  • Easy planning of calibration
  • Exclusively in accordance with DIN 55 350 Part 18, § 4.2.2, DIN ISO 8402 Part 1 and meets or exceeds the indicated accuracy
  • Possibility to adjust and repair

More details

Cic-Thickness Thickness Gauge Calibration

Buy Now
Product

Product
Price
Quantity
133784
JD-50-W Thickness Gauge
€ 685,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
