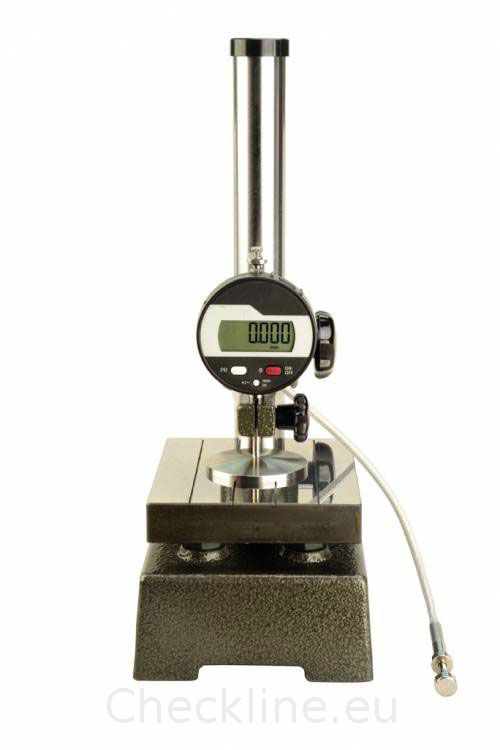

LTG-ISO2589 Leather Thickness Gauge according to ISO 2589


Made in GermanyThe LTG is a cost efficient and easy to use instrument for measuring the thickness of leather.
This leather thickness gauge works fully conform the ISO 2589 standard and comes with a manufacturer's inhouse calibration certificate confirming the feeler diameter, shape and constant measuring pressure.


Features
  • Economical and Easy to use
  • Simple solid design
  • Conforming ISO 2589
  • Manual lifter and cable release
  • Constant force load
  • Manufacturer calibration certificate and DAkkS calibration for the dial gauge optional available

Complete Kit
The LTG Thickness Gauge is supplied as a complete kit with instruction manual and calibration certificate.

Specifications
Standards:ISO 2589
Pressure:49.1 kPa
Resolution:0.001 mm
Stroke:12,5 mm
Feeler size:Ø10 mm
Feeler area :0.785 cm²
Power:Button cell CR2032
Dimensions:85 x 135 x 200mm
Net Weight:2.5 kg
