MiniTest FH Series Ultrasonic Thickness Gauge
Precision and Versatility in Compact Measurement
Explore the MiniTest FH Series from Checkline offering portable ultrasonic thickness gauges capable of handling a wide range of non-magnetic materials such as plastics, glass, ceramics, and non-ferrous metals. These devices are perfect for measuring materials with complex shapes, making them ideal for both industrial production and quality laboratories.
Key Features:
- Wide Measuring Range: Capable of measuring thicknesses up to 24 mm, the FH-7200 and FH-7400 models adapt to various industrial needs.
- High Precision: They use advanced integrated digital signal processing technology (SIDSP®) to ensure accurate and repeatable measurements.
Special Features:
- Intuitive Interface and Easy-to-Read Display: Offer a menu-driven user interface and a large display that facilitates operation in any environment.
- Data Storage Capabilities: The FH-7400 model can store up to 240,000 readings, facilitating data management for extensive analysis.
User Benefits:
- Ergonomic and Portable Design: Their compact shape and included carrying case make these gauges an ideal solution for on-site measurements.
- Versatility of Probes: Available with different probes to suit specific sizes and shapes, maximizing measurement accuracy in challenging areas such as sharp corners or small radii.
These gauges are essential tools for a variety of industries, including automotive, avionics, and medical component manufacturing, where high-precision and non-destructive measurements are required.
Features

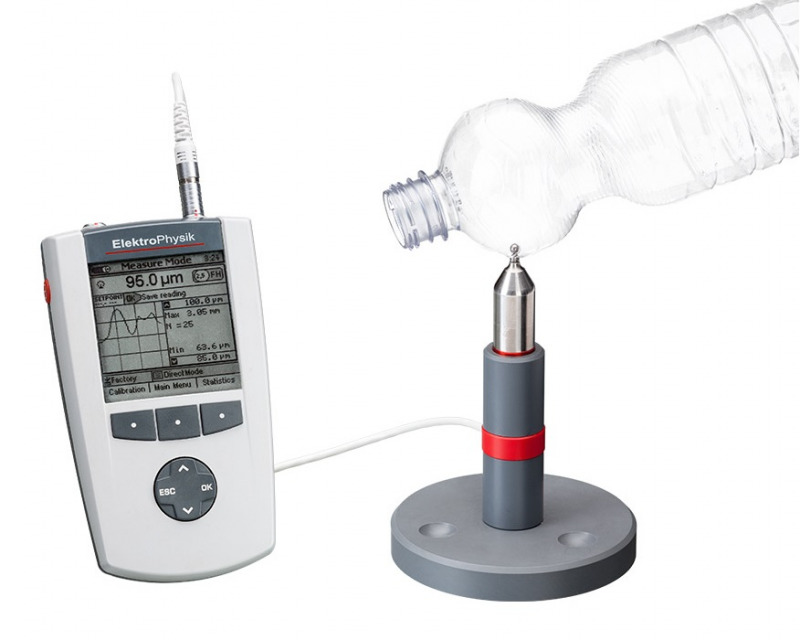

- Ideal for Bottles, Aluminum Cans, Glass and Plastic Components with Complex Shapes
- Large, easy-to-read display
- Data capture up to 20 data points per second
- Sensor-integrated digital signal processing
- Minimum and maximum readings
- Multi-point calibration up to 5 points
- High precision target balls for reproducible measurements
- Menu-controlled user interface
- Context-sensitive on-line help
- SPC capabilities
Complete Kit
The basic units MiniTest FH7200 and MiniTest FH7400 are supplied in foam fitted case and it contains the following items:
- MiniTest FH7200 or MiniTest FH7400 Device
- Rubber protection case
- Operating instructions (English/German/French/Spanish/Portuguese/Italian)
- 4x AA Batteries, type LR06 - MSoft 7 Professional Edition
- Magnetic Screwdriver
- MSoft Pro 7 Software
-Manufacturer certificate according to DIN 55350 M
Depending on the selection of your probe the following scope of the delivery applies:
FH4 Probe
- Magnetic Probe Protection sleeve and end cap
- Spring loaded probe holder / Table stand
- ±100 pcs Ø 1.5mm balls / ±100 pcs Ø 2.5mm / ±50 pcs Ø 4.0mm
- Zero calibration tip for Ø 1.5mm / Ø 2.5mm / Ø 4.0mm balls
- Calibrations Standards: 0.25mm / 1mm / 3mm
FH4-1MM Probe
- Magnetic Probe Protection sleeve and end cap
- Spring loaded probe holder / Table stand
- ±100 pcs Ø 1.0mm balls / ±100 pcs Ø 1.5mm balls / ±100 pcs Ø 2.5mm / ±50 pcs Ø 4.0mm
- Zero calibration tip for Ø 1.0mm / Ø 1.5mm / Ø 2.5mm / Ø 4.0mm balls
- Calibrations Standards: 0.15mm / 0.25mm / 1mm / 3mm
FH4-M Probe
- Magnetic Probe Protection sleeve and end cap
- Spring loaded probe holder / Table stand
- ±100 pcs Ø 1.5mm balls / ±100 pcs Ø 2.5mm / ±50 pcs Ø 4.0mm / ±25 pcs Ø 1.5mm magnetic balls / ±20 pcs Ø 3.0mm magnetic balls
- Zero calibration tip for Ø 1.5mm / Ø 2.5mm / Ø 3.0mm / Ø 4.0mm balls
- Calibrations Standards: 0.25mm / 1mm / 3mm / 8mm
FH10 Probe
- Magnetic Probe Protection sleeve and end cap
- Spring loaded probe holder / Table stand
- ±100 pcs Ø 2.5mm balls / ±50 pcs Ø 4.0mm / ±25 pcs Ø 6.0mm / ±10 pcs Ø 9.0mm
- Zero calibration tip for Ø 2.5mm / Ø 4mm / Ø 6mm / Ø 9mm balls
- Calibrations Standards: 1mm / 3mm / 8mm
FH10-M Probe
- Magnetic Probe Protection sleeve and end cap
- Spring loaded probe holder / Table stand
- ±100 pcs Ø 2.5mm balls / ±50 pcs Ø 4.0mm balls / ±25 pcs Ø 6.0mm balls /
±20 pcs Ø 4.0mm magnetic balls / ±20 pcs Ø 6.0mm magnetic balls / ±10 pcs Ø 9.0mm magnetic balls
- Zero calibration tip for Ø 2.5mm / Ø 4mm / Ø 6mm / Ø 9mm balls
- Calibrations Standards: 1mm / 3mm / 8mm / 18mm
Specifications
| Measuring Range all FH4 probes | 0-1.3mm with 1.0mm ball (FH4-1MM Only!) 0-2.0mm with 1.5mm ball 0-3.5mm with 2.5mm ball 0-6.0mm with 4.0mm ball 0-5.0mm with 1.5mm magnetic ball (FH4-M Only!) 0-9.0mm with 3.0mm magnetic ball (FH4-M Only!) |
| Measuring Range with FH10 Probes | 0-4.0mm with 2.5mm ball 0-7.0mm with 4.0mm ball 0-10.0mm with 6.0mm ball 0-13.0mm with 9.0mm ball 0-16.0mm with 4.0mm magnetic ball (FH10-M only!) 0-24.0mm with 6.0mm magnetic ball (FH10-M only!) |
| Accuracy with FH4 Probes | 0-1.3mm (1mm ball): ±(3 µm + 1% of reading) 0-2.0mm: ±(3 µm + 1% of reading) 0-3.5mm: ±(5 µm + 1% of reading) 0-6.0mm: ±(10 µm + 1% of reading) 0-5.0mm (magnetic): ±(20 µm + 2% of reading) 0-9.0mm (magnetic): ±(40 µm + 2% of reading) |
| Accuracy with FH10 Probes | 0-4.0mm: ±(5 µm + 1% of reading) 0-7.0mm: ±(10 µm + 1% of reading) 0-10.0mm: ±(20 µm + 1% of reading) 0-13.0mm: ±(20 µm + 1% of reading) 0-16.0mm (magnetic): ±(40 µm + 2% of reading) 0-24.0mm (magnetic: ±(60 µm + 2% of reading) |
| Low Range Resolution | FH4: 0.1 µm FH10: 0.2 µm |
| Repeatability | Better than ± (1 µm + 0.5 % of reading) |
| Measuring Principle | Magnetostatic |
| Logging Rate | 1, 2, 5, 10, 20 readings per second (selectable) |
| Data Memory | FH7200: 100,000 values FH7400: 240,000 values |
| Calibration Modes | Factory, Zero, Zero + up to 4 points |
| Measuring Units | Metric: µm, mm Imperial mils, inch |
| Statistical Charting | Numeric, trend, and histogram (with MiniTest 7400 FH only) |
| Interfaces | RS232 TTL + IrDA 1.0 |
| Models | MiniTest 7200 FH MiniTest 7400 FH |
| Operating temperature | –10 °C to +60°C (Storage temperature: –20°C to +80°C) |
| Dimensions | 153 mm x 89 mm x 32 mm |
| Weight | 310 grams |
| Power supply | 4 x AA batteries, or optional AC adapter |
