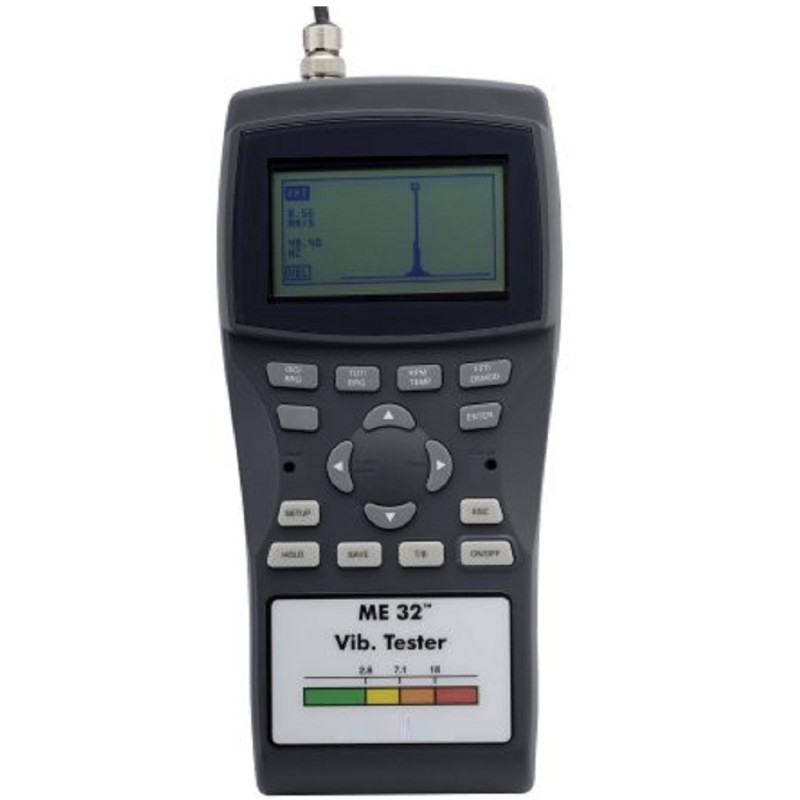

ME-32 Vibration Tester
The new Vibration Tester ME-32 is a quick and easy way to check vibration, bearing conditions, temperature and rotational speeds. The ME-32 presents a frequency spectra helping you to identify different machine problems. Also, from each measurement point there are top lists showing the highest vibration levels.
It works in accordance with ISO 10816-1 and uses 3 different bearing condition evaluation programs to ensure high quality data. The ME-32 provides you with a frequency analysis with high accuracy and many possibilities for settings of your own.
ME-32 software helps you to carry out an in depth analysis. For example, it offers you the possibility of saving data from your measurements in a PC for a deeper analysis of trends.
It works in accordance with ISO 10816-1 and uses 3 different bearing condition evaluation programs to ensure high quality data. The ME-32 provides you with a frequency analysis with high accuracy and many possibilities for settings of your own.
ME-32 software helps you to carry out an in depth analysis. For example, it offers you the possibility of saving data from your measurements in a PC for a deeper analysis of trends.
- Displays Temperature
- ISO 10816-1
- Displays frequency spectra helping you to identify different machine problems
- Bearing Conditions Tests
- Measures Rotational Speed
- ME-32 displays top lists of the highest vibrations
ME-32 software offers you the possibility of saving data from your measurements in a PC for a deeper analysis of trends for example.
| Dynamics: | 16 bits A/D Sigma/Delta converter with >74 dB dynamics |
| Anti aliasing filter: | Digital and analog anti aliasing filter |
| Frequency range: | 0.4 –12.2 kHz |
| Frequency step: | 0.04 Hz resolution |
| Sampling speed: | Up to 31250 Hz, selectable |
| Frequency range: | 0.4-150 Hz 0.4-300 Hz 0.4-1 500 Hz 0,4-3 000 Hz 0.4-6 kHz 0.4-12.2 kHz |
| Resolution: | 400, 800, 1600, 3200 lines |
| Integration: | None, single, double |
| Demodulation: | Built in with 2 selectable filters HP 600 Hz, 2 kHz |
| Bearing condition: | L-method velocity mm/s RMS, g method acc. g 2-12 kHz RMS |
| Units: | Metric, imperial, selectable |
| Frequency/speed: | Hz or RPM |
| Processor: | ARM 32 bit architecture flip chip BGA |
| Memory: | 2 MB |
| Storage: | 10 bearings in 3 directions and configuration data |
| Communication: | Serial RS232 115KBaud |
| Input: | Acceleration: 0-20 g (RMS) Velocity: 0-199.99 mm/s (RMS) Amplitude: 0-1999.99 um (0-P) |
| I/O: | 2 mA CC Accelerometer, 5V powered tacho, RS232, charger |
| Transducer sensitivity: | 100 mV/g or 500 mV/g, selectable |
| Auto. power down: | 5, 10, 15, 20 min or off |
| Battery: | Std AA (Option: standard charger, 5×1800 mAh NiMh) |
| LCD: | Twist 64×128 pixel |
| Accelerometer: | ME 42 integrated cable/BNC 100 mV/g nominal 0.5-15 kHz with magnet |
| Operational temperature: | 0-50 DEG C (32 to 122 DEG F) 20 mA |
| Dimension: | 105x220x35mm (4.13×7.95×1.38”) |
| Weight: | 400 g ex. battery |
| Battery Life: | Ca 25 hours operational |
| Stand by usage: | 0.05 mA or less |
| Charge time: | 4 hours |
| Optical tacho: | 0 – 250 000 RPM |
| Current consumption: | 20 mA |
