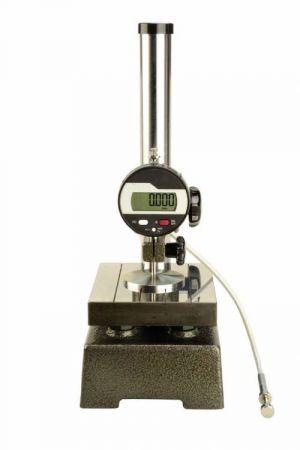

TMG - High Precision Thickness Gauges
Important note: The following thickness gauges have been discontinued and replaced by the TMG model:
- CTG-ASTM D1777-2
- FTG-ISO4593
- LTG-ISO2589
- RTG-ISO23529
- TTG-ISO-5084
The TMG series of thickness gauges provide extremely accurate measurements for a wide range of materials. These universal devices are notable for their ease of operation and robust design, adaptable to numerous ASTM, DIN, EN, and ISO standards thanks to their modular system.
The TMG is designed for applications such as elastomers, textiles, leather, nonwovens, films, rubber, and more. Additionally, high-quality materials are used in their manufacture, such as laboratory-quality granite bases and stainless steel components, ensuring durability and corrosion resistance even in humid environments.
Available Models:
- TMG-1: Ideal for textiles and soft materials.
- TMG-2: Perfect for medium materials such as rubber and leather.
- TMG-3: Designed for harder materials and heavy industrial applications.
Supported Standards:
- ISO-5084, ASTM D 1777 for textiles.
- ISO-23529, ASTM D3767 for rubber/elastomers.
- DIN EN ISO 12625-3, ASTM D 1777 for waterproofing membranes and more.
Key Features:
- Extreme Precision: Thanks to its lifting trigger system, the TMG gauges ensure precise measurement by applying the specific pressure required by each measuring standard.
- High-Quality Construction: With laboratory granite bases and stainless steel and aluminum components, the TMGs offer a long lifespan and are ideal for humid environments.
- Modular Versatility: Adaptable to numerous standards without the need for multiple devices thanks to its preconfigured settings for ISO, ASTM, DIN, and EN standards.
- Easy to Use: Designed for straightforward operation, ideal for testing in laboratories or production environments.
Key Benefits:
- Reliable Results: With consistent measurement and guaranteed measurement pressure, the TMG ensures reproducible long-term results.
- Standard Adaptability: Capable of conforming to multiple industrial standards, making the TMG a versatile choice for meeting rigorous quality requirements.
Contact us for more information on how the TMG thickness gauges can enhance your measurement and quality control processes.
Features
- Data Output: TMG gauges offer data output options for processing with specialized software, facilitating integration and result analysis.
- Dual Certification: Available with either a manufacturer calibration certificate or DAkkS calibration, ensuring compliance with the most stringent standards.
Depending on the selected configuration, the TMG thickness gauge is delivered as a complete set consisting of:
- Granite measuring table
- Stainless steel column guide
- Gauge
- Measuring insert compliant with the desired standard
In addition and optional:
- Manufacturer Calibration Certificate
- DAkkS Calibration Certificate (only dial gauge)
- Software
| Model | Basis | Norm | Application | Feet Ø (mm) | Weight (g) * / Measuring Pressure (kPa) |
| TMG-1-T | TMG-1 | ISO-5084 | Textiles | 50,5 | 204,0 / 1,0 |
| TMG-1-T1 | TMG-1 | ASTM D 1777 Option 2 | Textiles | 9,5 | 169,0 / 23,4 |
| TMG-1-G | TMG-1 | ISO-23529 + ASTM D 3767 | Rubber / Elastomers with a hardness> 35 IRHD | 4,0 | 28,0 / 22,0 |
| TMG-1-G1 | TMG-1 | ASTM D 3767 | Rubber / Elastomers with a hardness < 35 IRHD | 16,0 | 212,0 / 10,0 |
| TMG-1-PT | TMG-1 | DIN EN ISO 12625-3 | Paper towels | 35,7 | 204,0 / 2,0 |
| TMG-1-AB | TMG-1 | DIN EN 1849-2 | Flexible sheets | 10,0 | 160,0 / 20,0 |
| TMG-1-FB | TMG-1 | ASTM D 1777 Option 1 | Fiber fabrics, knitwear, texture | 28,7 | 273,0 / 4,14 |
| TMG-1-FB1 | TMG-1 | ASTM D 1777 Option 5 | Blankets and pile fabrics | 28,7 | 46,2 / 0,7 |
| TMG-2-F | TMG-2 | ISO 4593 + DIN 53370 | Foils and films | R40,0 | 10 - 50 / - |
| TMG-3-L | TMG-3 | DIN EN ISO 2589 | Leather | 10,0 | 393,0 / 49,1 |
| TMG-3-FI | TMG-3 | ASTM D 1777 Option 3 | Films and glass fibers | 6,3 | 546,0 / 172,0 |
| TMG-3-GE | TMG-3 | ASTM D 5199 | Geosynthetics | 56,4 | 509,5 / 2,0 |
| TMG-3-P | TMG-3 | DIN EN 534 | Paper and cardboard | 16,0 | 2050,0 / 100,0 |
| TMG-3-C | TMG-3 | DIN EN ISO 3034 | Corrugated cardboard | 35,7 | 2041,0 / 20,0 |
| * Weight refers to the total weight of the sensor , weight and the measuring spindle. All configurations with the same device base can be combined with each other. Packages with additional accessories for adaptation to another standard are available separately. Contact us for more information. | |||||
Dimensions
All sizes are in mm
All sizes are in mm
All sizes are in mm
Specifications
| Measuring range: | TMG-1 + TMG-3: 12.5mm TMG-2: 0.8 / 1.8mm (depending on the resolution) |
| System accuracy: | ±4µm (or better): TMG-1-G, TMG-1-G1, TMG-1-T1, TMG-1-AB ±7µm (or better): TMG-1-T, TMG-1-PT, TMG-1-FB, TMG-1-FB1 ±10µm (or better): TMG-3-L, TMG-3-FI, TMG-3-GE, TMG-3-P, TMG-3-C |
| Resolution: | TMG-1 + TMG-3: 0.001mm TMG-2: Switchable resolution: 0.005mm, 0.001mm and 0.0002mm (depending on measurement path) |
| Measuring table: | ∅200 mm x 40 mm made of granite |
| Column guide: | ∅30 mm made of stainless steel |
| Measuring system: | Mahr dial gauge |
| Units: | Optionally mm or inch |
| Display: | LCD display |
| Test surface and measuring pressure: | Corresponds to the respectively listed ASTM, DIN, EN and ISO standards |
| Battery type | CR 2032 (3V Lithium) |
| Output signal: | RS-232C and USB |
| Weight: | TMG-1 + TMG-2: ca. 7kg TMG-3: ca. 8kg |
