Digital Force Gauges


Force meters for tension and compression

Digital force gauges for tensile and compressive force measurements. The digital force gauges from Checkline Europe impress with their compact shape and versatility. They can be used as standalone devices or in combination with our force gauge test stands. The digital force gauges have different connections (depending on the model), such as USB, RS232, Mitutoyo or analog output, and some models are supplied with software. The force measuring devices are available with different measuring ranges.

Advantages of digital force measurement

Digital force gauges are not only convincing due to the data export options. In general, they are equipped with backlit displays so that the measured values ​​can be read well under all light conditions. Instead of being restricted to a specific scale, as is the case with a mechanical device, you can easily change the measuring unit at the push of a button.

However, it is also particularly important that digital dynamometers, in contrast to mechanical ones, are also suitable for destructive tests. A sudden drop in tension occurs during a destructive force test. These rapid changes in measuring force can lead to permanent damage to mechanical devices.

Please click on one of the images for more information.
We would be happy to help you buying the right digital force measuring device.





Filter


Sampling rate

Accuracy

Sensor type

Data output

Series-2 Economic Digital Force Gauge

Series-2
  • Economical Digital Force Gauge
  • 500 Hz sampling rate
  • Ultra-compact form factor
  • ±0.5% accuracy
  • Reversible housing and display
Price € 396,00 - € 538,00
More information

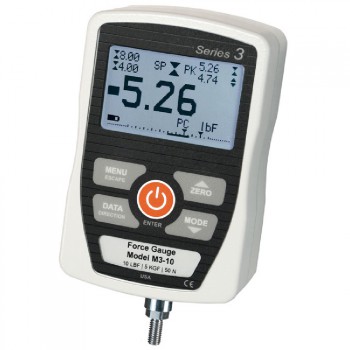

Series-3 Digital Force Gauge

Series-3
  • Digital Force Gauge with USB Output & Software
  • 2,000 Hz Peak Sampling Rate
  • ± 0.3% accuracy
  • 3 Year Warranty
Price € 619,00 - € 761,00
More information

Series-4 Digital Force Gauge with Output

Series-4
  • Digital Force with USB Output & Software
  • 3,000 Hz peak sampling rate
  • ±0.2% accuracy
  • 50 point data memory and statistics
  • 3 Year Warranty
Price € 804,00 - € 947,00
More information

Series-5 Advanced Digital Force Gauge

Series-5
  • Advanced Digital Force Gauge with USB, RS-232,Mitutoyo, and analog outputs
  • 7,000 Hz peak sampling rate
  • ±0.1% accuracy
  • 1,000 point data memory and statistics
  • 3 Year Warranty
Price € 1.042,00 - € 1.497,00
More information

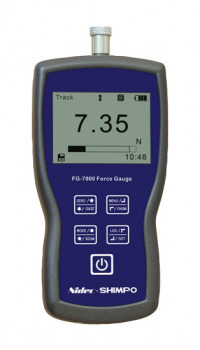

Series-7 Professional Digital Force Gauge

Series-7
  • Professional Digital Force Gauge with USB Output & Software
  • 14,000 Hz peak sampling rate
  • Continuous data capture with 5,000-data point buffer and bulk output
  • ± 0.1% accuracy
Price € 1.516,00 - € 1.659,00
More information

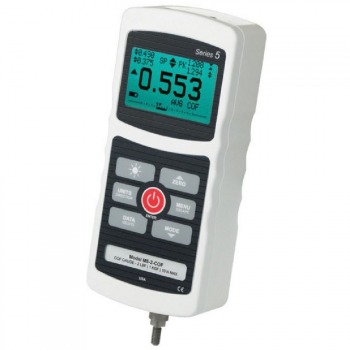

M5-2-COF Coefficient Of Friction Gauge

M5-2-COF
  • Coefficient of friction (COF) gauge
  • Calculates static and kinetic coefficients of friction
  • Configurable sled weight
  • 1.000-point data memory and statistics
Price € 1.256,00
More information

Series 3I Advanced Force/Torque Indicator

Series 3I
  • Force/Torque Indicator
  • To be used in combination with a separate force or torque sensor
  • 2,000 Hz sampling rate
  • Ultra-compact form factor
  • ±0.2% accuracy
Price € 567,00
More information

Series 5i Advanced Digital Force/Torque Indicator

Series 5I
  • Advanced Force/Torque Indicator
  • To be used in combination with a separate force or torque sensor
  • 7,000 Hz sampling rate
  • USB, RS-232, Mitutoyo, and analog outputs
  • ±0.1% accuracy
  • 1,000 point data memory and statistics
Price € 852,00
More information

Series 7i Advanced Force/Torque Indicator with high speed data capture

Series 7I
  • Advanced Force/Torque Indicator
  • To be used in combination with a separate force or torque sensor
  • 14,000 Hz sampling rate
  • USB, RS-232, Mitutoyo, and analog outputs
  • ± 0.1% of full scale
  • 5,000 point data memory and statistics
Price € 1.374,00
More information

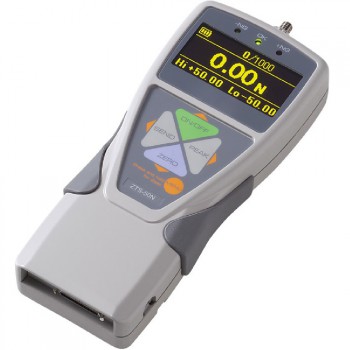

ZT Digital Force Gauge with Luminescent EL Display

ZT
  • 9 ranges up to 5000 N
  • User selectable units: N, kgf (gf) and lb (oz)
  • With manufacturer's calibration certificate
  • EL electro luminescent display
  • Warranty: 1 year
Price € 870,00 - € 1.425,00
More information

ZT-DPU Digital Force Gauge with Remote Sensor

ZT-DPU
  • 13 ranges up to 20 kN
  • With external sensor
  • User selectable units: N, kgf (gf) and lb (oz)
  • EL electro luminescent display
  • Warranty: 2 year
Price € 1.175,00 - € 2.394,50
More information

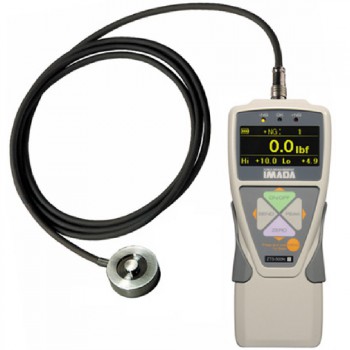

ZT-LM Digital Compression Force Gauge with Button Sensor

ZT-LM
  • 10 ranges up to 20 kN
  • With external sensor
  • User selectable units: N, kgf (gf) and lb (oz)
  • EL electro luminescent display
  • Warranty: 2 year
Price € 1.669,00 - € 1.999,00
More information

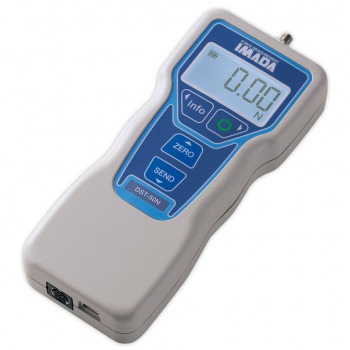

DST

DST
  • Capacity
    up to 1000 N
  • User selectable units: N, kgf (gf) and lb (oz)
  • Including NIST traceable calibration report
  • USB & RS-232C data output
  • Warranty: 2 years
Price € 660,00 - € 902,00
More information

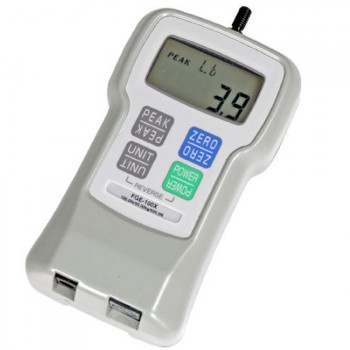

FGE Hand-held Digital Force Gauge

FGE
  • Digital Force Gauge
  • Accuracy ± 0.2%
  • 8 Ranges up to 100lbs
  • Measure force in lbs, Kgs or N
Price € 666,00
More information

FGV-XY Digital Force Gauge with USB Output

FGV-XY
  • Digital Force Gauge with USB Output
  • 9 Ranges up to 200lbs
  • 1,000 Hz Sample Rate, provides more accurate results
  • USB, RS-232, Analog Outputs
Price € 827,00 - € 878,00
More information

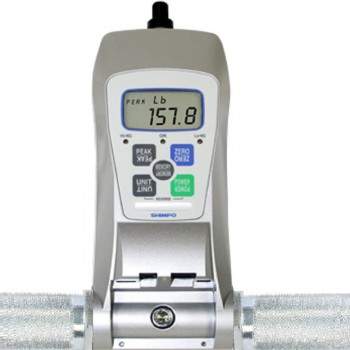

FGV-HXY High Capacity Digital Force Gauge

FGV-HXY
  • High Capacity Digital Force Gauge
  • Accuracy ± 0.2%
  • 3 Ranges up to 1000 lbs
  • Measure force in lbs, Kgs or N
  • RS-232C, Digimatic and Analog outputs optional
Price € 1.062,00 - € 1.527,00
More information

BlueForce Impact Force Gauge

BlueForce
  • Impact Force Gauge
  • For use with automatic/power operated doors/gates
  • 2000 N Capacity

RG Force Sensor Module

RG
  • Force Sensor Module
  • 7 Models up to 200lb capacity
