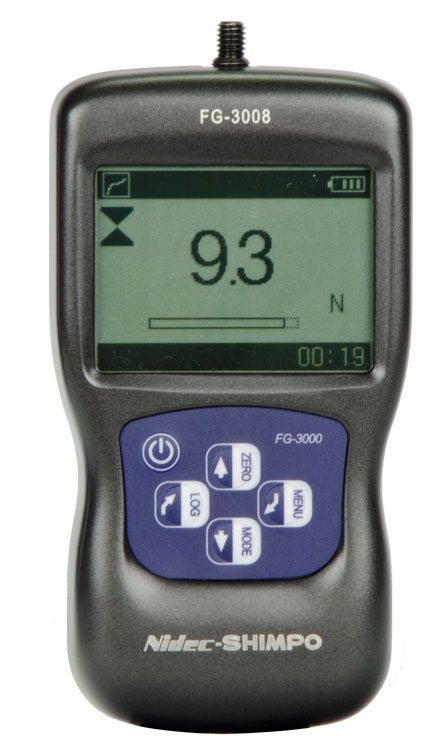

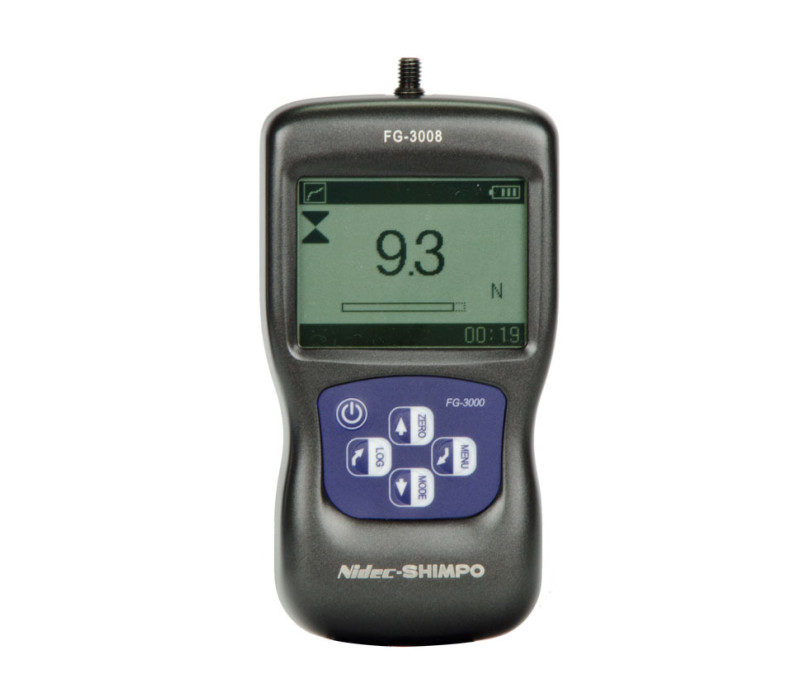

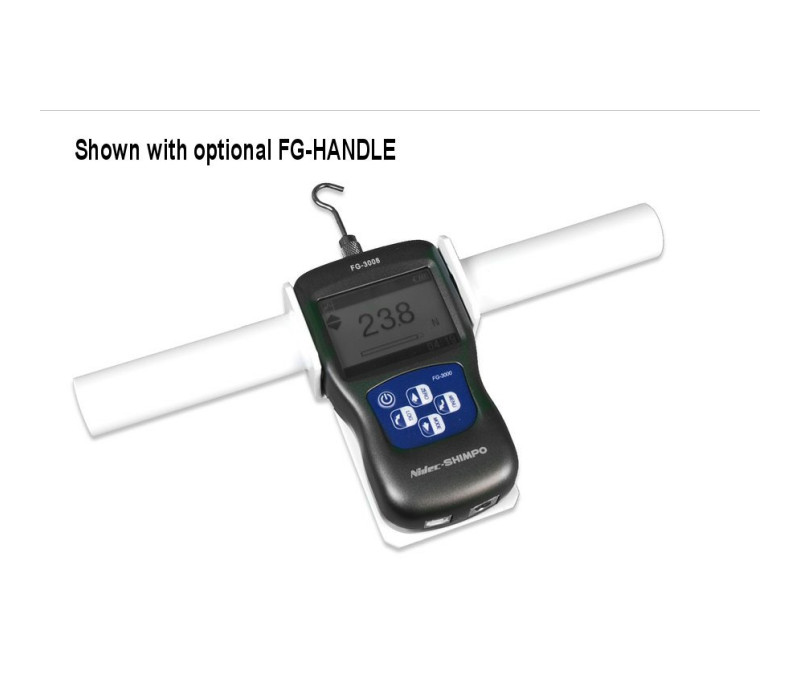

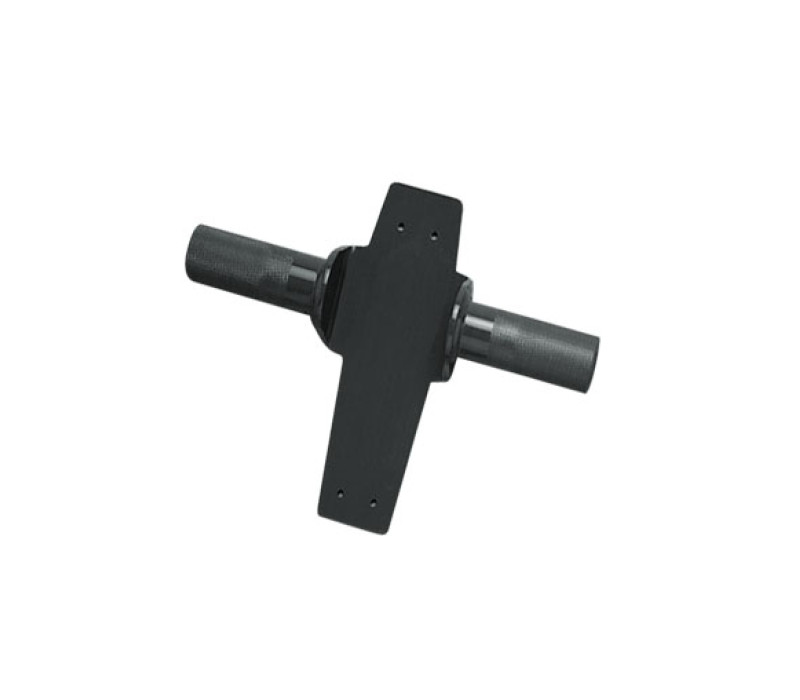

FG-3000 Series Digital Force Gauges
The Shimpo FG-3000 series by Checkline is the perfect solution for professionals in quality control, research & development, and industrial testing.
Designed for tensile and compressive force measurements, this advanced force gauge delivers precise, repeatable results across various applications.
Key Features:
- Exceptional Accuracy: Measures forces with ±0.3% full-scale precision
- Wide Measurement Range: Available in models supporting up to 1000N
- User-Friendly LCD Display: Backlit screen with multiple viewing modes

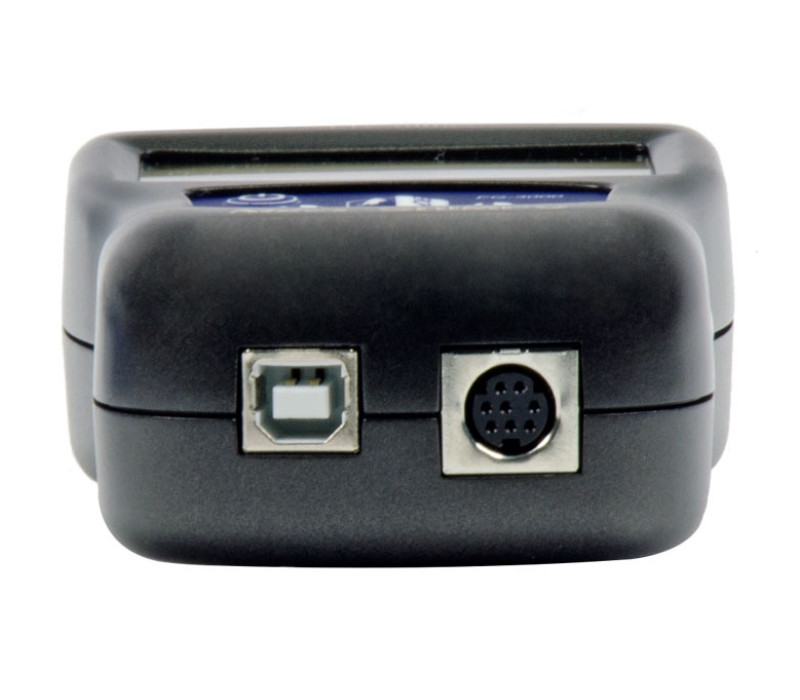

- Data Logging & Connectivity: Store results and transfer data via USB & RS-232 interface
- Durable & Portable Design: Compact, robust construction for both mobile and stationary use
Special Features:
- Versatile Testing Modes: Includes peak force measurement, real-time tracking, and preset limits
- Comprehensive Accessories Included: Comes with multiple attachments and a sturdy carrying case
To find out more about how the FG-3000 series force gauges can fulfil your specific force measurement requirements, contact us.
Features
- Supplied with Factory Calibration Certificate
NIST Traceable Calibration or ISO-17025 Certificate are optional - 1000 Hz Sample Rate combined with +/-0.3% F.S. accuracy provides fast sampling producing great resolution and more accurate results
- 3 mode operation: Track, Peak & Preset Limits

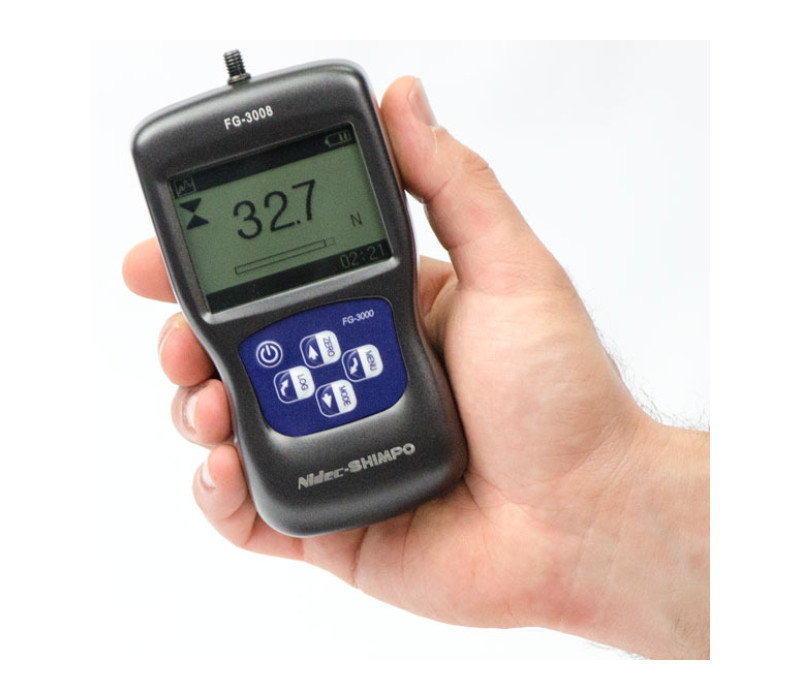

- 180° reversible display, tension/compression icons, and vertical printed keypad allows usage as a portable gauge or mounted upside down on a test stand
- Programmable High & Low Limits allow for instant visual and audible indication of pass or fail testing in Preset mode
- 500 point data collection capability can be viewed on display, sent to optional printer, or uploaded to software package for further analysis
- Rugged, ergonomic die cast aluminum construction allows usage in demanding applications
- Comparator output function provides user with easy Pass/Fail testing system integration capabilities
- Multi-language and engineering unit’s selection provides flexible user options
- Field Calibration capability eliminates the need to send to a lab for calibration
- Free Data logging/graphing software provided, sample rate up to 60 readings/sec

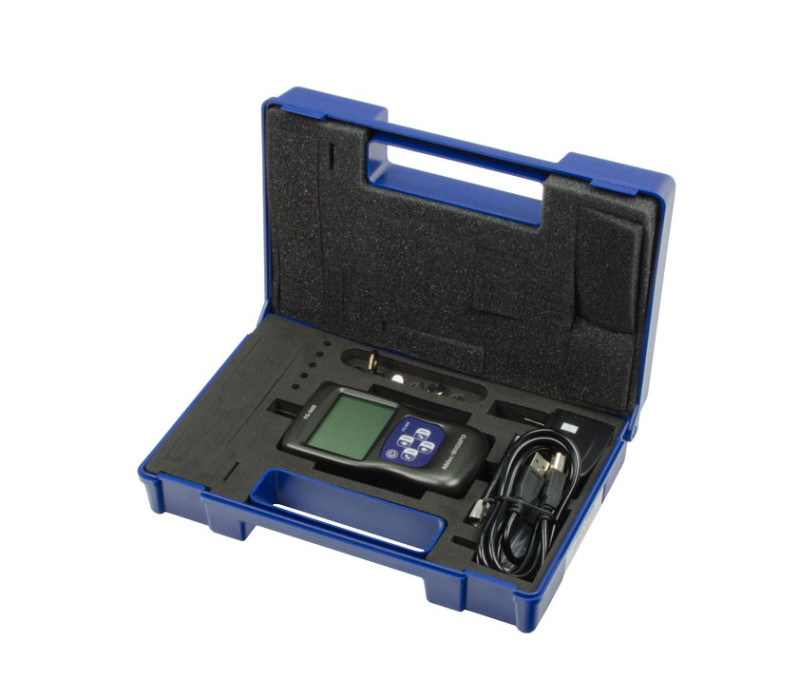

The FG-3000 complete kit comes supplied with:
- AC Adaptor/Charger
- USB cable
- 6 Attachments: hook, flat tip, conical tip, chisel tip, notched tip, extension shaft
- Foam fitted plastic carrying case
- Calibration certificate
Dimensions
| Capacity | Resolution | |
|---|---|---|
| FG-3003 | 2.2 Lb 1 Kg 10 N 35 oz | 0.001 Lb 0.001 Kg 0.01 N 0.01 oz |
| FG-3005 | 11 Lb 5 Kg 50 N 180 oz | 0.01 Lb 0.001 Kg 0.01 N 0.1 oz |
| FG-3006 | 22 Lb 10 Kg 100 N 350 oz | 0.01 Lb 0.01 Kg 0.1 N 0.1 oz |
| FG-3007 | 44 Lb 20 Kg 200 N 700 oz | 0.01 Lb 0.01 Kg 0.1 N 0.1 oz |
| FG-3008 | 110 Lb 50 Kg 500 N 1800 oz | 0.1 Lb 0.01 Kg 0.1 N 1 oz |
| FG-3009 | 220 Lb 100 Kg 1000 N 3500 oz | 0.1 Lb 0.1 Kg 1 N 1 oz |

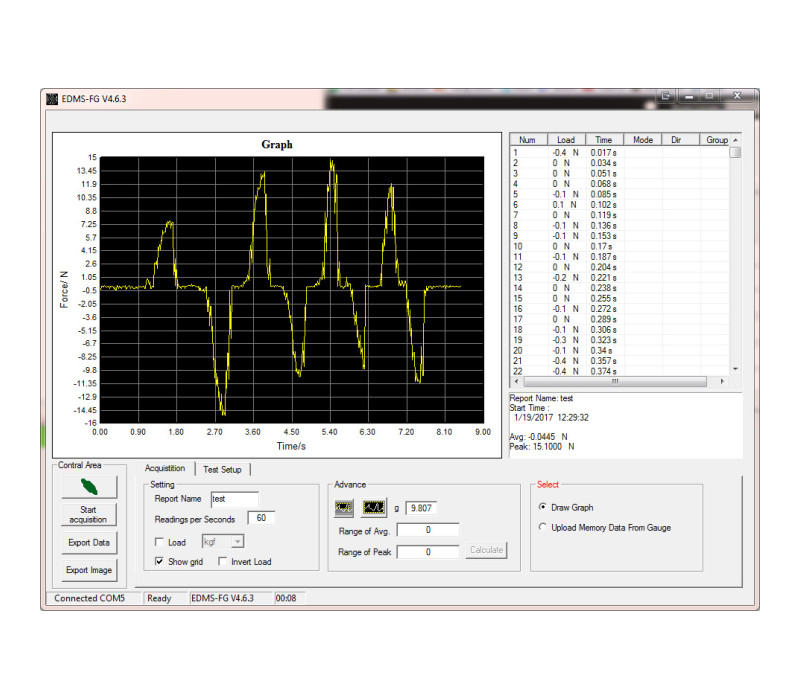

The software for the FG-3000 Series Force Gauges provides full testing capabilities with live analysis of test results. Users can set a delay or time period for data recording and start or stop tests when a specific load threshold is reached. The load can be inverted to display the desired force direction in the graph. Automatic calculations of average and peak values are available, and users can zoom in on a graph section to recalculate new averages and peaks. In addition to live data acquisition, the software can also upload previously stored measurements and export data to a spreadsheet or save the graph as an image for later use.
Related Products

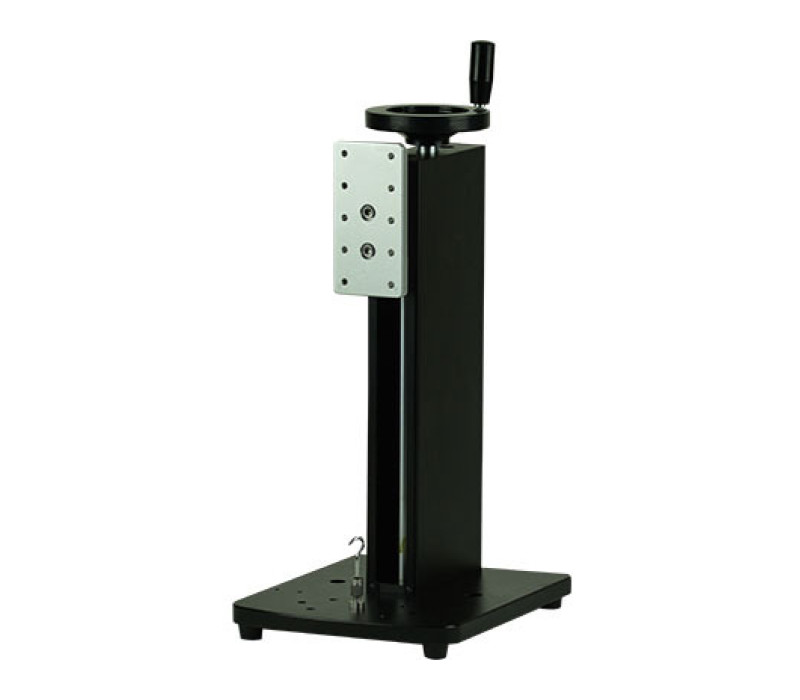

FGS-250W Manual Test Stand
- Optional Digital Scale Kit: Accurately records movement during testing, ideal for applications that require detailed tracking of movement.
- Tensile Frame Kit: Significantly increases travel stroke to over 250 mm (10 inches), suitable for extensive travel tensile tests.
More details

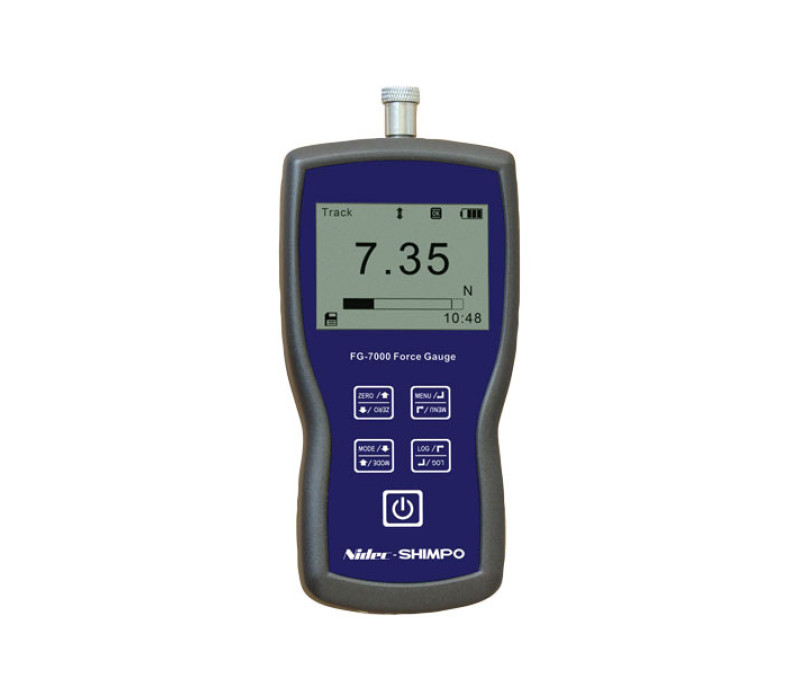

FG-7000 Series Digital Force Gauges
- 1000 Hz Sample Rate combined with &0.2% F.S. accuracy provides fast sampling producing great resolution and more accurate results
- 3 Mode operation: Track, Peak & Auto-Peak
- 180° Auto-reversible display, tension/compression icons, and dual printed keypad allows usage as a portable gauge or mounted upside down on a test stand
More details
Specifications
| Model | FG-3000 (6 models) |
| Accuracy | ± 0.3% F.S. |
| Selectable Units | N, kgf, ozf, and lbf. (Depending on Range) |
| Overload Capacity | 150% of F.S. (LCD flashes beyond 110% of F.S.) |
| Measurement Method | Peak, Track, Preset |
| Data Sampling Rate | 1000 Hz |
| Display | 160*128 dot matrix LCD with Backlight |
| Display Update Rate | 10 times/second |
| Memory | 500 data |
| Set Point | Programmable high and low limits in Preset Mode |
| Power | 3.6VDC 800mAH Ni-MH rechargeable batteries |
| Battery Life | Approximately 16 hours continuous use per full charge |
| Charger / Adaptor | Universal USB/BM charger, Input: 110 ~ 240VAC |
| Temperature Effects | 0.03% FS per °C |
| Outputs | USB, RS-232; High & Low Limit NPN’s |
| Operating Temperature | -10 to 40°C |
| Storage Humidity | 20 to 80% RH |
| Housing | Aluminum |
| Dimensions | 140 x 71 x 35.5 mm |
| Product Weight | 0.4 kg |
| Warranty | 1-Year |
