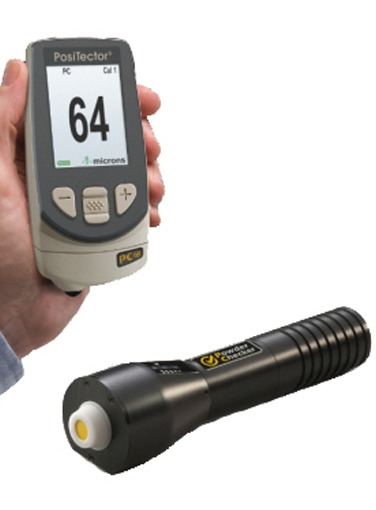

POSITECTOR-PC Powder Checker Non-Contact Coating Thickness Gauge
The POSITECTOR-PC Powder Checker Non-Contact Coating Thickness Gauge is no longer available and has been replaced by PosiTest PC.
Click here to see the PosiTest PC.
Range: 20 to 110 microns (0.8 to 4.3 mils)Checkline Europe is pleased to announce the next generation of non-contact, uncured powder thickness gauge.
The PosiTector PC Powder Checker measures uncured powder coatings using ultrasonic technology to automatically calculate and display a predicted cured thickness.
The PosiTector Powder Checker measures powder thickness on both ferrous and non-ferrous substrates as well as substrates made of materials other then metal.
Simple, Durable and Accurate
- Wireless probe communicates with base unit up to 10m away. (30 feet)
- Advanced new technology allows measurement on small tubes, odd shapes and moving parts
- Continually displays/updates basic statistics including min/max and average
- Easy calibration adjustment options improve accuracy on unusual powders or substrates
- Built-in IR port for printing stored results to an optional wireless printer
- Solvent, acid, oil, water and dust resistant — ideal for powder coating environments
- Conforms to ASTM D7378
- Two year warranty on both base unit and probe
- Backlit displays for dim or dark environments
- Thickness results appear on both base unit and probe
- USB Mass Storage of 1,000 readings in up to 100 batches
- Hand-held, battery operated
- USB port for fast and easy connection to a PC and to supply continuous power
- Live measurement results can be sent to a data collector or spray booth controller
- No download software required – gage generates formatted reports with measurement summaries and charts
- Shock-absorbing, protective rubber holster with belt loop and magnetic mount for easy storage
The PosiTector PC Powder Checker was designed for use in industrial powder coating environments.
The following is an overview of the probe display during the measurement process (button pressed).
The PosiTector PC can record 1,000 measurements in up to 100 groups (batches) for on-screen statistical purposes, for printing to an optional IR printer, or for transferring to a computer using the included USB cable. Readings are time-stamped as they are taken.
USB Mass Storage
The PosiTector PC Powder Checker uses a USB mass storage device class which provides a simple interface to retrieve data in a manner similar to USB flash drives, cameras, or digital audio players.
Any computer can view and download measurements stored in memory (in batches) by navigating a virtual drive labeled POWDER using the included USB cable.
A formatted HTML report is viewed by selecting the “index.html” file found in the root directory. Additionally, delimited text files (.txt) are located in each batch folder for easy import into database, spreadsheet and other compatible applications.
Live measurement results can be sent to data collection software or spray booth controller using a serial gadget driver and the provided USB cable.
- Wireless Transducer
- Display Unit
- Protective rubber holster with magnetic mount
- Probe fixture
- 3 AAA batteries (display unit)
- 3 AA batteries (wireless probe)
- User manual
- Instruction video
- Replacement probe screen
- USB cable
- Carabiner & wrist strap
- Foam filled plastic carrying case
Cic-Coating Calibration Coating Thickness Gauge
- Easy planning of calibration
- Short turnaround
- Possibility to adjust and repair
- In accordance with DIN EN ISO 2178, 2360, 2808 and meets or exceeds the indicated accuracy.
More details
| Range | 20 to 110 microns (0.8 to 4.3 mils) |
| Resolution | 1 µm (0.05 mils) |
| Accuracy | ± 5 µm (± 0.2 mil) |
| Measurement Time | 2 - 5 seconds |
| Measurement Distance to Powder | 18 mm (0.75 inch) |
| Measurement Area | 2 mm (0.08 inch) |
| Interface | IR and USB interfaces |
| Dimensions | Display unit: - 146 x 64 x 31 mm (5.75 x 2.5 x 1.2 inch) Wireless Transducer: - 222 x 50 mm (8.75 x 2.0 inch) |
| Weight | Display unit: 165 g (5.8 oz.) Wireless Transducer: 272 g (9.6 oz.) |
| Warranty | 2 years on both display unit and wireless transducer |
