TSB1 Tape & Band Tension Sensor

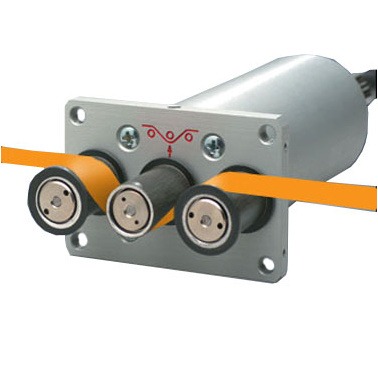

TSB1 Tension Sensors with dual-flanged, cylindrical rollers are ball bearing mounted to provide a friction-free path for tapes, bands and narrow webs/warps up to 30mm wide.
This Stationary Electronic Tension sensor is suitable for measuring low tensions of textile ribbons, films, foils, fiber bundles etc
Cylindrical rollers with raised edges on both sides are mounted on ball bearings to provide a friction free path for tapes, tape and narrow webs/strips up to 30mm wide.
8 Tension Ranges
from 0 - 100 cN to 0 - 20 daN
TSB1 Tension Sensors are offered with roller widths of 7, 10, 15, 20 and 30mm
With Output Signals:
- Standard: 0 – 1 V DC or optional
- Code A2: Output signal: 0 – 10 V DC
- Code A3: Output signal: 4 – 20 mA
- Code A10: Output signal: mV/V (For sensors without amplifier incl. firmly connected cable with open ends, 2 m long
Note: A wide range of custom designed models and modifications are available upon request.
Please contact us with your questions about your application.
- Roller shells are available in aluminum, chrome-plated and plastic
- Frequency response of 100 Hz
- Precision strain gauge sensing for highest accuracy and repeatability
- Optional 5ft. connecting cable
- 0-1 V DC output, proportional to tension (0-10 V DC optional)
- Surface mount electronics provide long-term reliability
| Model | Tension Range* | Measuring Head Width** | Roller Width: | |
|---|---|---|---|---|
| TSB1-100 | 0 – 100 cN | 60 mm | 7, 10, 15, 20 mm | |
| TSB1-200 | 0 – 200 cN | 60 mm | 7, 10, 15, 20 mm | |
| TSB1-500 | 0 – 500 cN | 60 mm | 7, 10, 15, 20 mm | |
| TSB1-1000 | 0 – 1000 cN | 60 mm | 7, 10, 15, 20, 30 mm | |
| TSB1-2000 | 0 – 2000 cN | 120 mm | 7, 10, 15, 20, 30 mm | |
| TSB1-5000 | 0 – 5000 cN | 120 mm | 7, 10, 15, 20, 30 mm | |
| TSB1-10K | 0 – 10 daN | 120 mm | 7, 10, 15, 20 mm | |
| TSB1-20K | 0 – 20 daN | 220 mm | 7, 10, 15, 20 mm | |
| Other measuring units available, such as g or kg * SCHMIDT calibration material depending on tension range and roller width ** Outside dimensions of front plate Important for your order: Please specify the model and roller width. Small dual-flanged outer guide rollers are standard. All 3 rollers can be equipped with one flange, if the material to be measured is wider than the rollers. Please request when you order. Calibration to Custom Material: If the process material deviates significantly from the SCHMIDT calibration material in diameter, stiffness or shape, a special calibration using customer-supplied samples is recommended. For this, a material sample of approximately 5 m must be supplied. |
||||
| Roller Width | Line Speed vmax. … m/min | Roller Material* |
|---|---|---|
| 7 mm | 1000 | Hard-coated aluminum |
| 10 mm | 1000 | Hard-coated aluminum |
| 15 mm | 1000 | Hard-coated aluminum |
| 20 mm | 1000 | Hard-coated aluminum |
| 30 mm | 1000 | Hard-coated aluminum |
*Other roller materials (nickel-plated steel or plastic), as well as special coatings (Code CF – for carbon fiber, NAV optimized, Code KE – ceramic,
Code AH – anti adhesive) are available on request.
Standard
Output signal: 0 – 1 V DC
Code A2
Output signal: 0 – 10 V DC
Code A3
Output signal: 4 – 20 mA
Code A10
Output signal: mV/V
For sensors without amplifier
incl. firmly connected cable with open ends, 2 m long
Please indicate the complete item number:
| Model with tension range | Roller width in mm | Code output signal (if not standard) | Complete item No. | |||
|---|---|---|---|---|---|---|
| TSB1-100 | + | 15 | + | A3 | = | TSB1-100-15-A3 |
TD-1-TE Tension Indicator
- User-set High & Low Alarm Limits with relays
- TD-1 provides regulated +5 V DC for SR sensors
- 4-20 mA and 0-10 VDC analog output for recording and control purpose
More details
| Accuracy | ± 1% FS ±1 digit with standard material ± 3% FS with other materials |
| Sensor Excitation | 12 - 18 VDC, 21 mA |
| Middle Roller Deflection | 0.5 mm (maximum) |
| Sensor Output | 0-1 V DC (standard) 0-10 V DC (optional) proportional to tension |
| Overload Rating | 150% FS |
| Housing Material | Aluminum |
| Maximum Linear Speed | 1000 m/min (Standard) 3000 m/min (K) 3000 m/min (k) (optional) |
| Roller Diameter (Root) | 13 mm |
| Roller Material | Al (standard) Chromed-Plated Steel (ST) (optional) Plastic (PL) (optional) |
| Frequency Response | 100 Hz |
| Operating Temperature | 40 to 105° F (5-40° C) |
| E10061 - Diode Plug with Bayonet Cap Diode Plug | |
 |
Diode Plug suitable for sensors of TS series, cable outlet 3.5 – 6 mm Order number: E10061 |
| EK0603, EK0605 and EK0610 - Connecting Cable with 2 diode plugs | |
 |
Connecting cable with 2 diode plugs, for analog output and voltage signal. For connecting the TS sensor to the display unit SCD-1. Order number: EK0603, Length 3 m Order number: EK0605, Length 5 m Order number: EK0610, Length 10 m |
| EK0612, EK0614 and EK0615 - Connecting Cable with 1 diode plug and open ends | |
 |
Connecting cable with 1 diode plug and open ends, for analog output and current signal. Other cable length available on request! |
SCV-1 Amplifier SCV-1
- For use with sensors providing mV/V output
- For use with sensors providing mV/V output
- Provides ZERO and GAIN Adjustment Pots for Calibration purposes
More details
