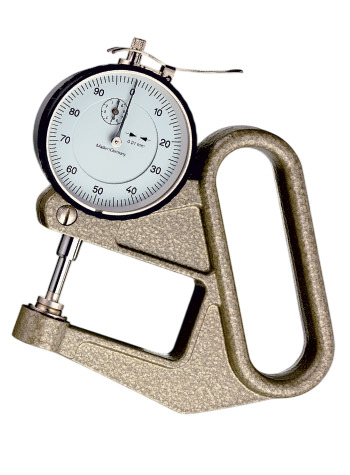

JA-50 Thickness Gauge
Thickness gauges are used for measuring the thickness of leather, textile, cardboard, felt, rubber, sheet metal, foils, plywood, plastic parts of all kind, etc.
Depending on the application, the following points are important for selecting the best model:
- Max. resolution required
- Measuring range
- Depth of jaw
- Shape of feelers
- Measuring principle
The aluminum housing is lightweight and rugged. It can be easily zeroed by turning the outer knurled ring of the scale.
The JA-50 model is available with 5 different feelers, which can be found below. Opening by lifting device (lever) - self closing.
- Operating by lifting device - self closing
- Resolution 0.01 mm
Thickness gauge with transport packing case.
To order, please indicate the desired feeler, e.g. JA-50-B for gauge with feeler >b<. This means that NOT all feelers are included in the package!
Feeler: A
For rubber, felt*, soft materials*, nonwovens*, etc.
*Meets no DIN EN ISO standard Customized feeler type >a< with diameter 30 to 56 mm are available on request at extra charge
Feeler: B
For rubber, felt*, soft materials*, nonwovens*, etc.
*Meets no DIN EN ISO standard
Feeler: C
For soft leather, cardboard, paper, foils, etc.
Feeler: D
For hard leather, plywood, fiberboard, etc.
Feeler: E
For sheet metal, etc.
| Resolution: | 0.01 mm |
| Measuring range: | 10 mm |
| Depth of jaw: | 50 mm |
| Scale diameter: | 58 mm |
| Measuring pressure: | 1.0 N |
| Feeler shape: | a,b,c,d or e |
| Measurement by spring load: | Operating by lifting device - self closing |
| Weight, net: | 300 g |
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
