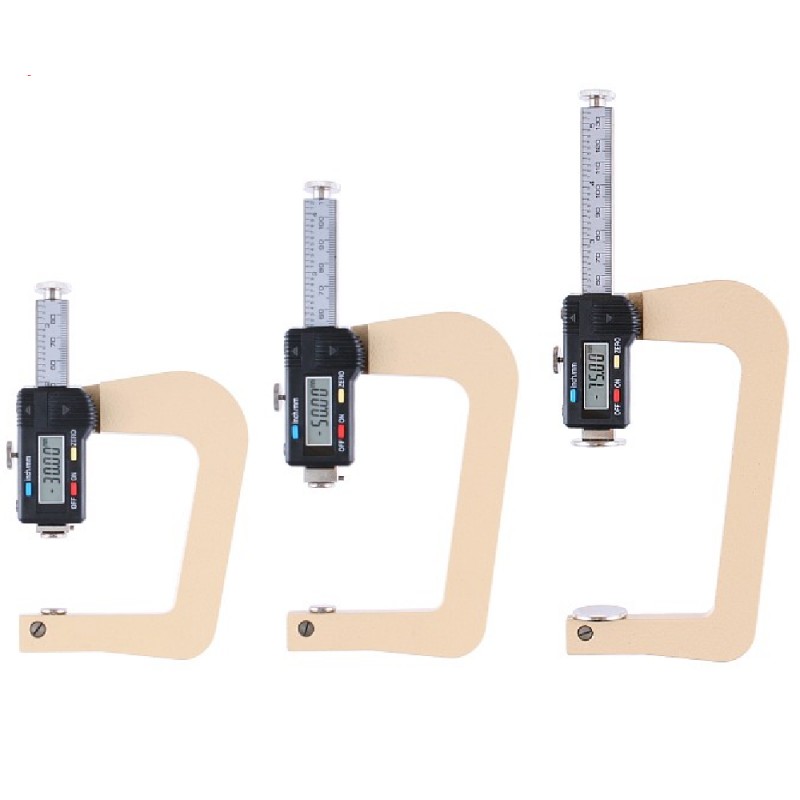

RMU Digital Thickness Gauge


Made in GermanyRanges Available: 30, 50 or 75 mm
Resolution: 0.01 mm / 0.001 inch

Thickness gauge to determine the thickness of leather, textiles, cardboard, felt, rubber, wood, sheet metal, foil, plywood, plastic, etc.

The large high-contrast display providing easy, correct reading of the values measured is a real benefit for user. The function Keys have been installed on the upper side, thus inadvertent operating during the measurement is possible. The user can select either to display thickness in mm or in inches.

The RMU models are available with 10 different feelers, which can be found below.



Features
  • User selectable measuring units, inches or millimeters
  • RS232C Data ouput
  • Large, high-contrast LCD Display
  • Calipering speed 1.5 m/s

Specifications
Resolution:RMU-30: 0.01 mm
RMU-50: 0.01 mm
RMU-75: 0.01 mm
Measuring Range:RMU-30: 30 mm
RMU-50: 50 mm
RMU-70: 75 mm
Depth of jaw:50 mm (all models)
Display:LCD, 7 mm high (all models)
Feeler Shape:A,B,C,D,E,F,G,H,I, or M
Measuring System:Capacitive (all models)
Power supply:Battery, 1.55 V SR 44 (all models)
Temperature range:10-45°C
Weight, net:RMU-30: 200 g
RMU-50: 220 g
RMU-75: 250 g

Feeler Shape

To order, please indicate the desired feeler, e.g. RMU-50-B for gauge with feeler >B<. This means that NOT all feelers are included in the package!

Feeler
Feeler: A
rigid leather, glass, sheet metal.

Feeler: B
For wood, rubber, soft leather, foil, etc.


Feeler: C
For soft rubber, felt, fleece.


Feeler: D
For rubber rings, round material.

Feeler: E
For paper, cardboard, chipboard and fiberboard, plywood.

Feeler: F
For sheet metal, glass, round material.

Feeler: G
For very rigid material.

Feeler: H
For foams and insulating materials.

Feeler: I
For very soft foams and insulating materials.


Feeler: M
For rubber sheets, felt, soft materials.





Buy Now
Products

Product
Price
Quantity
133715
RMU-30-A Thickness gauge with digital display
€ 178,00
133716
RMU-30-B Thickness gauge with digital display
€ 169,00
133717
RMU-30-C Thickness gauge with digital display
€ 169,00
133718
RMU-30-D Thickness gauge with digital display
€ 169,00
133719
RMU-30-E Thickness gauge with digital display
€ 169,00
133720
RMU-30-F Thickness gauge with digital display
€ 169,00
133721
RMU-30-G Thickness gauge with digital display
€ 169,00
133722
RMU-30-H Thickness gauge with digital display
€ 178,00
133723
RMU-30-I Thickness gauge with digital display
€ 191,00
133724
RMU-30-M Thickness gauge with digital display
€ 169,00
133697
RMU-50-A Thickness gauge with digital display
€ 181,00
133725
RMU-50-B Thickness gauge with digital display
€ 172,00
133726
RMU-50-C Thickness gauge with digital display
€ 172,00
133727
RMU-50-D Thickness gauge with digital display
€ 172,00
133728
RMU-50-E Thickness gauge with digital display
€ 172,00
133729
RMU-50-F Thickness gauge with digital display
€ 172,00
133730
RMU-50-G Thickness gauge with digital display
€ 172,00
133731
RMU-50-H Thickness gauge with digital display
€ 181,00
133732
RMU-50-I Thickness gauge with digital display
€ 194,00
133733
RMU-50-M Thickness gauge with digital display
€ 172,00
132561
RMU-75-A Thickness gauge with digital display
€ 189,00
133734
RMU-75-B Thickness gauge with digital display
€ 180,00
133735
RMU-75-C Thickness gauge with digital display
€ 180,00
133736
RMU-75-D Thickness gauge with digital display
€ 180,00
133737
RMU-75-E Thickness gauge with digital display
€ 180,00
133738
RMU-75-F Thickness gauge with digital display
€ 180,00
133739
RMU-75-G Thickness gauge with digital display
€ 180,00
133740
RMU-75-H Thickness gauge with digital display
€ 189,00
133741
RMU-75-I Thickness gauge with digital display
€ 202,00
133742
RMU-75-M Thickness gauge with digital display
€ 180,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
