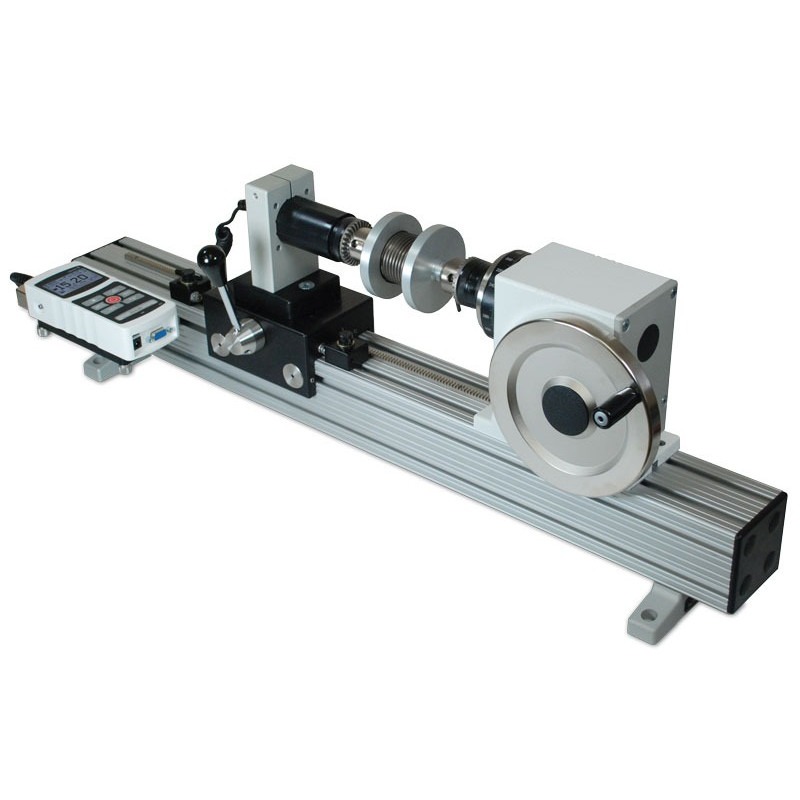

TSTH Manual Horizontal Torque Test Stand
The TSTH Torque Measurement Test Stand has been developed for torque testing up to 11.5 Nm. Typical applications are for example among others closure torque and fastener torque testing.
Please note that the TSTH is a test stand only. Choose a complementary torque sensor, display and appropriate test fixtures to built a complete torque testing system.
The TSTH’s versatile modular design allows it to be configured for a variety of torque sensors and gripping fixtures. Ultra-smooth hand wheel operation ensures ease of use and a lever-operated slider with travel stops makes engaging and disengaging samples quick and efficient.
The stand includes a torque loading plate with tapped holes for grip and custom fixture mounting and a resettable angle indicator.
- Adjustable travel stops
- The TSTH is supplied with a wrench set
- Travel rate: 12°/ wheel rev.
- Torque plate with tapped holes for grip and fixture mounting
- Smooth hand wheel operation
- Lever operated slider for engaging and disengaging samples
- Maximum torque: 11.5 Nm
Series-TT03 Digital Torque Meter
- Peak memory for clockwise and counter clockwise readings saved and displayed
- High-speed 2,000 Hz sampling rate
More details
Series-3I Force/Torque Indicator
- Interchangeable force and torque sensors through Plug & Test® technology (sensors are sold separately)
- High-speed 2.000 Hz sampling rate
- Ultra-compact size
More details
Series-5I Advanced Digital Force/Torque Indicator
- Interchangeable force and torque sensors through, separately sold, Plug & Test® technology
- High-speed 7.000 Hz sampling rate
- USB, RS-232, Mitutoyo, and analog outputs
More details
Category Torque Accessories
Grips & Attachments for torque gauges and torque test stands. Universal torque grips and special attachments for specific applications.
More details
Jacobs Chuck Grip For TST Jacobs Chuck Grips For TST Test Stand
- Jacobs Chuck Grips For TST Test Stand
More details
AC1004 Mounting Kit for 5I, 3I or TT03 to TS-Series Test Stands
- Mounting Kit for 5I, 3I or TT03 to TS-Series Test Stands
More details
| Maximum torque: | 11.5 Nm |
| Maximum angular travel: | no limit |
| Throat: | 104 mm |
| Angular rate: | 12° per wheel revolution |
| Maximum slider travel: | 394 mm (15.5") |
| Slider travel rate: | 26.6 mm / lever revolution |
| Weight | 12.3 kg |
The TSTH-Torque Test Stand includes:
- Torque measurement test stand
- Base
- Column cap
- 4x screws for base installation
- Mounting hole drill template
- Wrench set
The TSTH is a test stand only.
In order to measure torque, a torque sensor, display and appropriate test fixtures are needed.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
