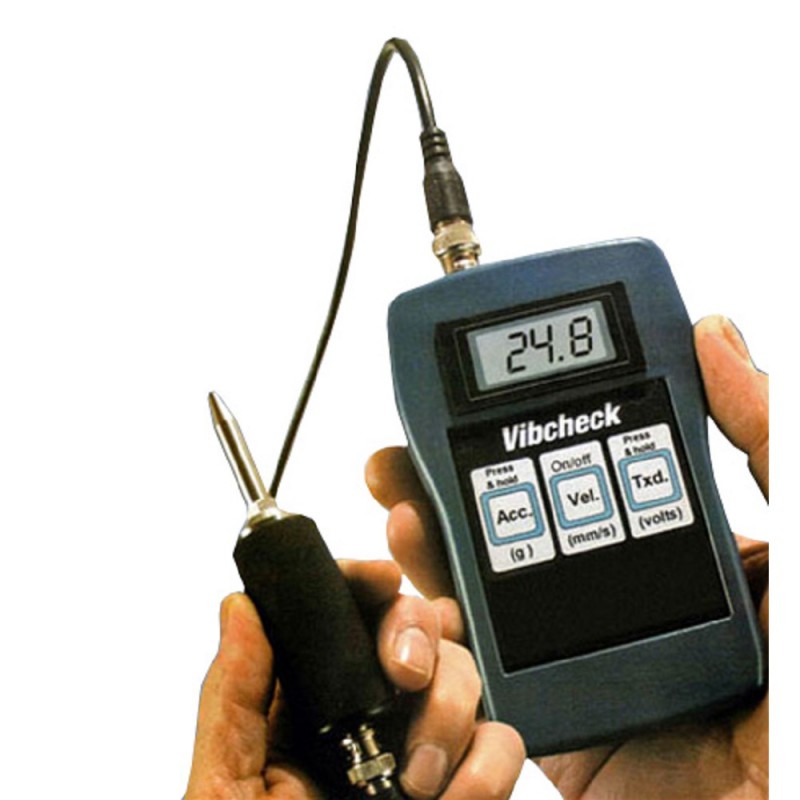

VIBCHECK Vibration Meter


The VIBCHECK is an entry level product which is an easy to use, versatile Vibration Meter which comes complete with transducer, Probe & interconnect cable & carry case. Ideal for the maintenance engineer, measurements can be taken quickly and easily in both Acceleration and Velocity units as required.

Additional probes & Transducers are optionally available where regular checks need to be made from fixed Transducers attached to machine, this method provides more accurate & consistent results.


Features
  • Measures Vibration (velocity & Acceleration)
  • Lightweight & easy to use
  • Optional fixed Transducers & mounting devices
  • Vibration management to ISO 10816 (former ISO2372)
  • Low cost, entry level vibration monitoring
  • Check switchbox wiring

Specifications
Display3 1/2 digit LCD
Measuring RangesVibration: Velocity 0-50mm/s True RMS
Acceleration 0-20g
Bias: Volts
Frequency Range10 Hz - 1kHz (velocity)
10Hz – 10kHz (acceleration)
AccuracyVibration: ± 0.1mm/s (± 0.1g)
Bias: 5%
Sensor inputFor hand held or fixed transducers
Power1x 9V Battery, 30 hour battery life
Dimensions125mm x 80mm x 35mm
Included AccessoriesMeter, Probe, Cable, Battery, Instructions, Vibration booklet and Carrycase
Accelerometer Specs------------------------------------------------------
Dimensionsø 32 mm x 80 mm
Weight172 gms
TypePiezo Electric
Sensitivity100 mV/g
ConnectionBNC socket
Mounting Thread¼” UNF female
Spike Specs------------------------------------------------------
MaterialStainless Steel
Mounting Thread¼” UNF male
Length50 mm
Weight24 grams

Options
• Stud length options: 25mm, 100mm, 200mm
• Rechargeable battery and charger
• Quicklock studs for repeatable results
• Magnetic mounting base
• Cable options: Coiled cable; Armored cable
• Fixed accelerometers for inaccessible or inhospitable measurement points

Buy Now
Product

Product
Price
Quantity
132159
VibCheck - Portable Vibration Meter
€ 1.015,00

Accessories

Product
Price
Quantity
132573
VibCheck - MTG MIM4 - Magnetic Mount Base
€ 175,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
