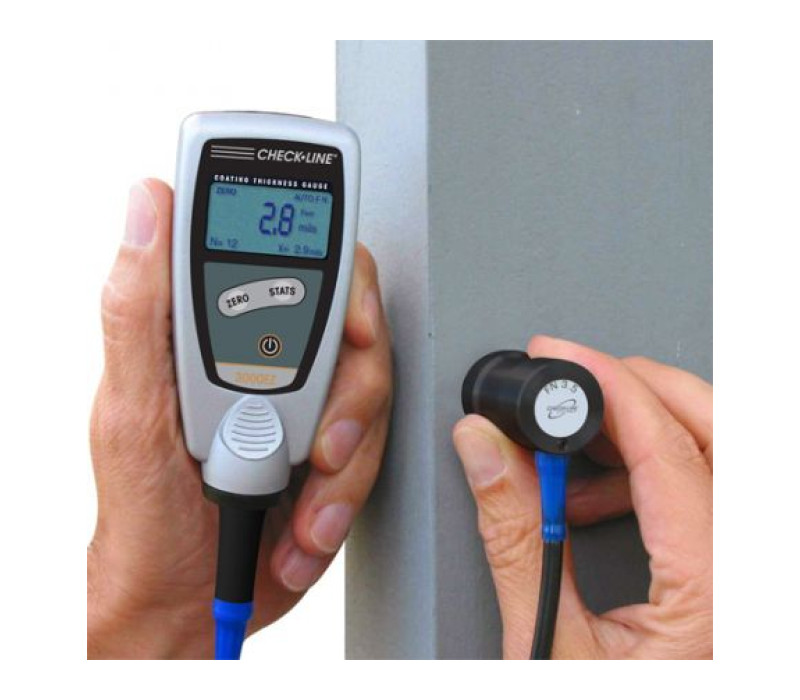

3000EZ-E SERIES Coating Thickness Gauge
With External Probe
The 3000EZ-E series of coating thickness gauges from Checkline is an advanced range designed to deliver fast, non-destructive, and exceptionally precise measurements on both ferrous and non-ferrous metals. Available in two models – the DCF-3000EZ-E for ferrous measurements and the DCFN-3000EZ-E for a combined solution – this series perfectly meets the demands of both laboratory and field applications, ensuring consistent and high-quality results.
Key Features:
- Specialised Models:
- DCF-3000EZ-E: Designed exclusively for measurements on ferrous metals.
- DCFN-3000EZ-E: A combined model for measurements on both ferrous and non-ferrous metals.
- Wide Measurement Range:
- Ferrous metals: 0 – 1500 µm (0 – 60.00 mils).
- Non-ferrous metals: 0 – 1500 µm (0 – 60.00 mils).
- High-Quality External Probes: Interchangeable probes machined to ultra-high standards, featuring a unique hard-metal probe tip that minimises wear for precise measurements under demanding conditions.
- Advanced Measurement Technology: Utilises magnetic induction for non-magnetic coatings on ferrous substrates and eddy current principles for electrically insulated coatings on non-ferrous metals and austenitic stainless steels.
- Robust Construction: Manufactured to international quality standards, the device is designed for intensive use, offering years of trouble-free operation.
Key Benefits:
- Non-Destructive and Rapid Measurements: Enables evaluation of coating thickness without damaging the surface, essential for quality control and product protection.
- High Reliability and Precision: Consistent results facilitate informed decision-making in production and maintenance processes.
- Easy Integration into Workflow: Its intuitive digital interface and ergonomic design ensure simple operation both in the laboratory and in the field.
Contact us for more information or to place an order. Our team of experts is ready to assist you in selecting the coating thickness gauge that best meets your technical and operational requirements, ensuring precise and reliable measurements for your projects.
Features
- Equipped with External Probe
- External dual sensor with hard metal pole tip
- Manufacturer's Certificate Included
- Large back-lit display
- Live statistics display for up to 99 readings
- Keypad-selectable English or metric units
The 3000EZ-E Series is supplied as a complete kit with:
- 3000EZ-E coating thickness gauge
- zero-plate
- plastic test shim
- 2 AA batteries
- soft carrying pouch
- instruction manual
- manufacturer´s certificate
The DCF-3000EZ-E is supplied with a
ferrous zero-plate
The DCFN-3000EZ-E is supplied with a
ferrous and a non-ferrous zero-plate
- 3000EZ-E coating thickness gauge
- zero-plate
- plastic test shim
- 2 AA batteries
- soft carrying pouch
- instruction manual
- manufacturer´s certificate
The DCF-3000EZ-E is supplied with a
ferrous zero-plate
The DCFN-3000EZ-E is supplied with a
ferrous and a non-ferrous zero-plate
 | Minimum Radius for Convex Surfaces | 0.2" (5 mm) |
| Minimum Radius for Concave Surfaces | 2" (50mm) | |
 | Minimum Headroom | 2" (50 mm) |
 | Minimum Sample Diameter | 0.4" (10 mm) |
 | Minimum Substrate Thickness - F | 20 mils (0.5 mm) |
| Minimum Substrate Thickness - NFe | 2 mils (50 µm) |
| Microns (µm) | |
|---|---|
| 0 - 999 µm | 1 µm |
| 1.000 - 2.498 mm | 0.002 mm |
| 2.500 - 3.500 mm | 0.005 mm |
| Mils | |
| 0 - 99.9 mils | 0.1 mils |
| 100.0 - 140.0 mils | 0.2 mils |
Related Products
Cic-Coating Calibration Coating Thickness Gauge
- Easy planning of calibration
- Short turnaround
- Possibility to adjust and repair
- In accordance with DIN EN ISO 2178, 2360, 2808 and meets or exceeds the indicated accuracy.
More details
Accessories
Specifications
| Gauge versions: | DCF-3000EZ-E Coating thickness on ferrous metals DCFN-3000EZ-E Coating thickness on ferrous & non-ferrous metals |
| Range: | Ferrous: 0 - 3500 µm (0 - 140.00 mils) Non-Ferrous: 0 - 3000 µm (0 - 120.00 mils) |
| Accuracy: | 3 µm (±0.1 mils) or 3% of reading, whichever is greater |
| Resolution: | Refer to table above |
| Display: | Back-lit, 4-digit alphanumeric |
| Min. Measuring Area: | 10 mm x 10 mm (0,4" x 0,4") |
| Min. Curvature Radius: | concave: 50 mm (2") convex: 5 mm (0.2") |
| Calibration: | Factory calibration, zero calibration |
| Statistics Program: | Number of readings, mean value, standard deviation, maximum and minimum reading of max. 99 readings |
| Operating Temp: | 0 °C to 50 °C (32 °F to 122 °F) |
| Surface Temp: | -15 °C to 60 °C (5 °F to 140 °F) |
| Memory Temp: | -20°C to 60 °C |
| Power: | 2 AAA, 1.5 V |
| Dimensions: | 110 mm x 50 mm x 25 mm (4.3" x 2" x 1") |
| Weight: | 90 g (3.2 oz) |
| Protection Class: | IP 52 (proof against dust and dripping water) |
| Standards: | DIN, ISO, ASTM, BS |
| Warranty: | 1 year |
| Calibration Certificate | Included |
