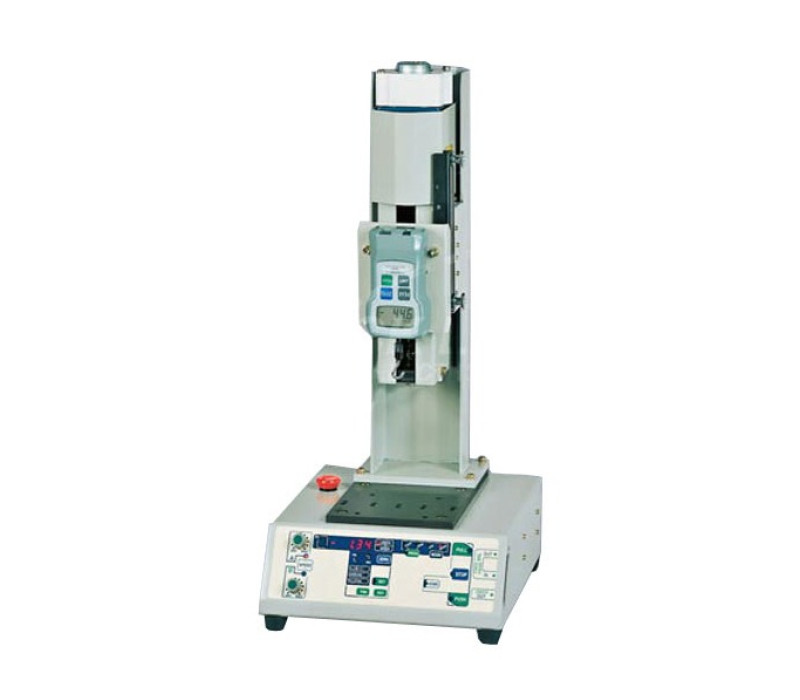

FGS-100PVH and FGS-100PVL Motorized Test Stands
Discover the FGS-100PVH and FGS-100PVL models, each with a capacity of 110 lb, available in standard and low-speed vertical configurations. These motorized test stands are designed to provide precise and repeatable measurements in tension and compression tests across various industries. With robust steel construction and advanced programming and cycling capabilities, these models are ideal for quality assurance and product development.
Outstanding Features:
- Steel Construction: Provides exceptional durability, ensuring stability and longevity during the most demanding tests.
- Advanced Programming Capabilities: Allows users to set test cycles that adapt to exact specifications, enhancing process efficiency.
- Total Compatibility: Capable of interfacing with a variety of force gauges, offering a complete system for precise measurements.
- Configuration Versatility: Adjustable to operate in both vertical and horizontal orientations, suitable for any lab space or production environment.
Key Benefits:
- Precision and Consistency: Ensures reliable and repeatable results, crucial for quality control and product evaluation.
- User-Friendly Interface: Its intuitive design makes it accessible to both technicians and non-technicians alike, reducing the time needed for training and enhancing operational efficiency.
Contact us for more information on how the FGS-100PVH and FGS-100PVL models can transform your measurement and testing processes, and to receive personalized advice tailored to your specific needs.
Note: The FGS-100PVH and FGS-100PVL models were formerly known as FGS-50PVH and FGS-50PVL, respectively. This update reflects improvements in specifications and capabilities.
Features
- User-Programmable Set Points: Allows the user to define parameters for speed, distance, and stop time to precisely adapt to different types of tests.
- Selectable Force Adjustment: Users can set high and low force limits via the RS232C interface or directly from the DFS gauge, providing detailed control during tests.
- Gauge Overload Protection: Ensures equipment integrity and data accuracy, even under extreme loads.
- Analog Distance Outputs: Facilitates the integration of distance data with other measurement and analysis systems.
- Single Cycle and Continuous Cycling Capabilities: Offers versatility for performing repetitive or one-off tests, according to test protocol needs.
- Compatibility with Gauges from Various Manufacturers: Ensures maximum flexibility in choosing additional equipment for test setup.
- Complete RS232 Communication: Allows full management and control of gauge functions from the stand, enhancing operational efficiency.
- Manually Adjustable Upper and Lower Limits: Provides users the ability to define and adjust test limits to ensure compliance with specific quality standards.
Dimensions
Related Products
FGV-XY Digital Force Gauge with USB Output
- Accuracy of ±0.2%
providing superb repeatability - USB, RS-232 & Analog Outputs-- all included!
3 different outputs for data transfer provides maximum flexibility
More details
FGE Hand-held Digital Force Gauge
- Includes Traceable Calibration Certificate
- Accuracy ± 0.2%
- User-selected units of Pounds, Kilograms or Newtons
More details
Specifications
| Capacity | 110 lb (50 kg) |
| Stroke | 5.5" (140 mm) |
| Vertical Clearance | 61-181 mm (2.4"- 7.1") 5 steps, 1.18"/step (30 mm/step) |
| Travel | 100PVH: Adjustable: 1.57 - 15.74"/min (40-400 mm/min) 100PVL: Adjustable: 0.39-3.93"/min (10-100 mm/min) |
| Display | Four digit LED, 0.41" high (10.5 mm). Reads in inches (0.01 resolution) or millimeters (0.1 resolution) |
| Power | 120 VAC, 60 Hz |
| Weight | 19 kg (42 lb) |
