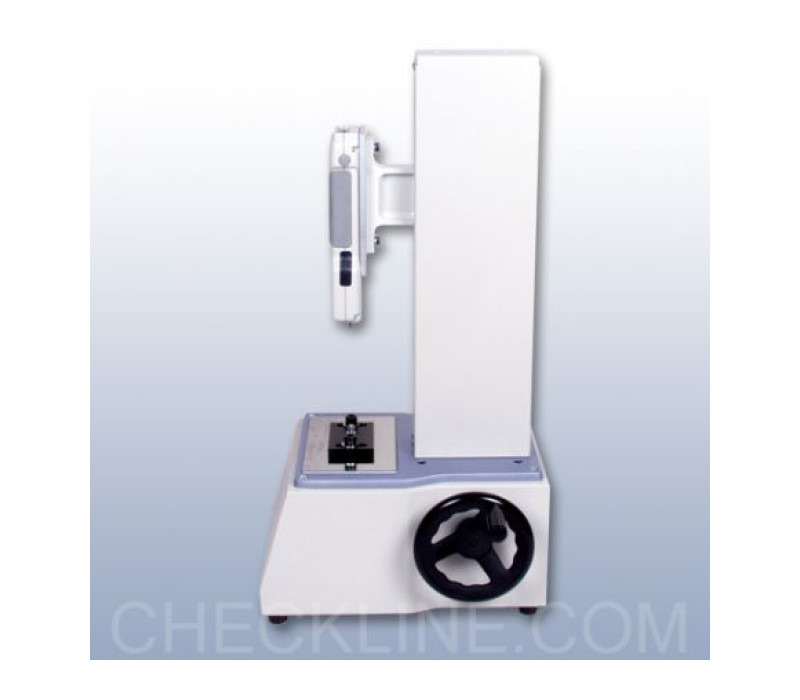

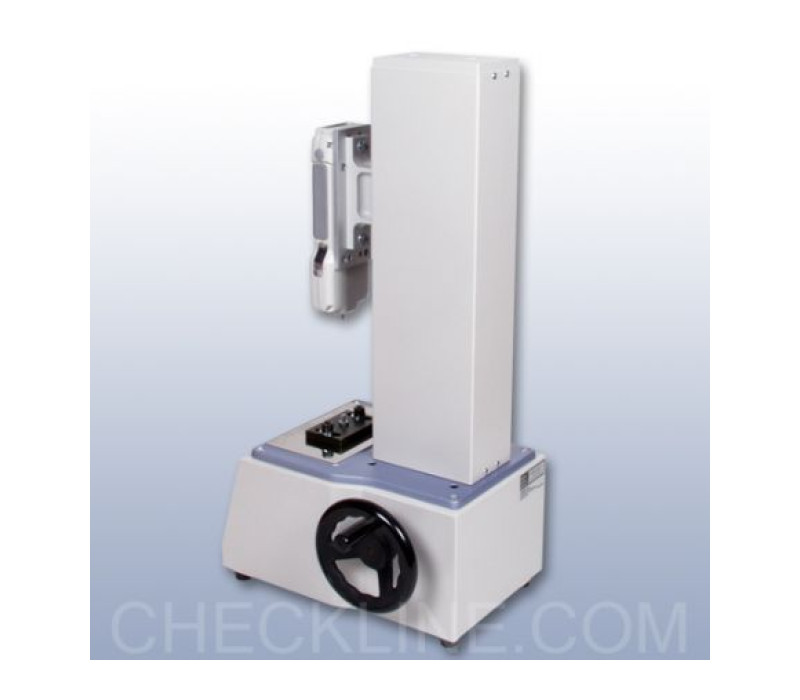

HV-N Series: Manual Test Stands

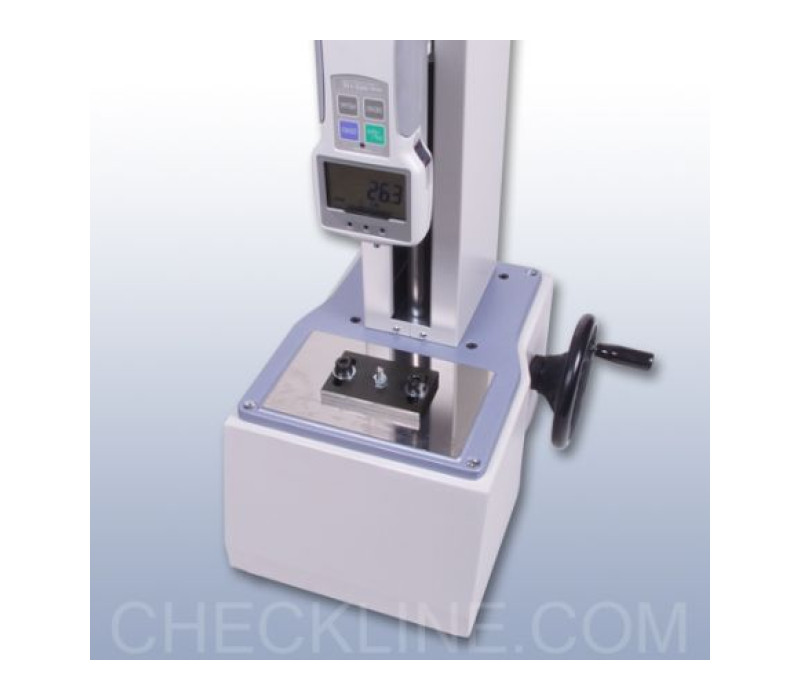

Explore the HV-N series from Checkline, consisting of vertical wheel-operated test stands that offer advanced solutions for measuring push and pull forces on various materials. These stands are ideal for handling tests that require an extended range of movement and ensure precise and repeatable results in each test.
Key Features:

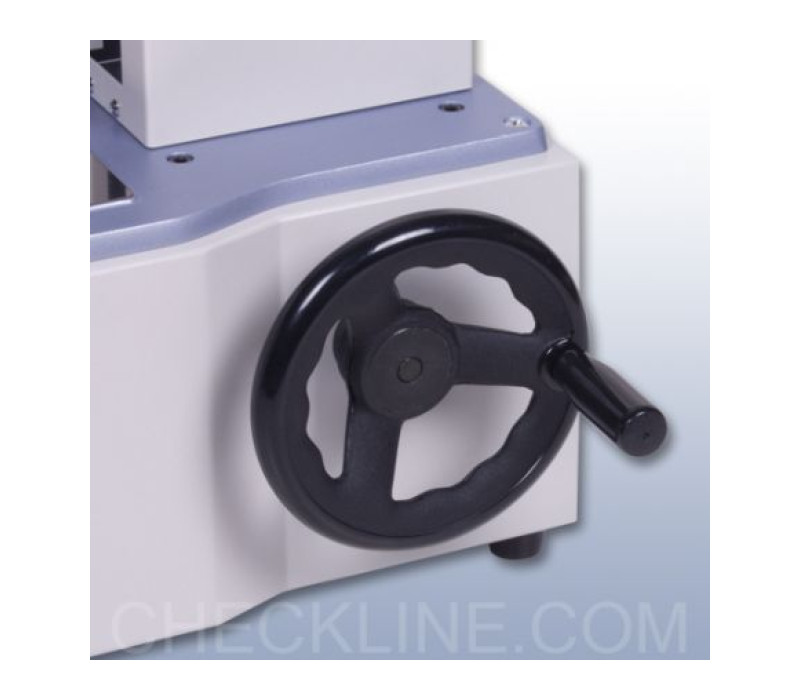

- Precise Control: Equipped with a handwheel that ensures consistent speed and maximum control, perfect for applications that demand high precision in force measurement.
- Versatile Design: Capable of performing both compression and tension tests, adapting to a variety of testing requirements thanks to its flexible setup.

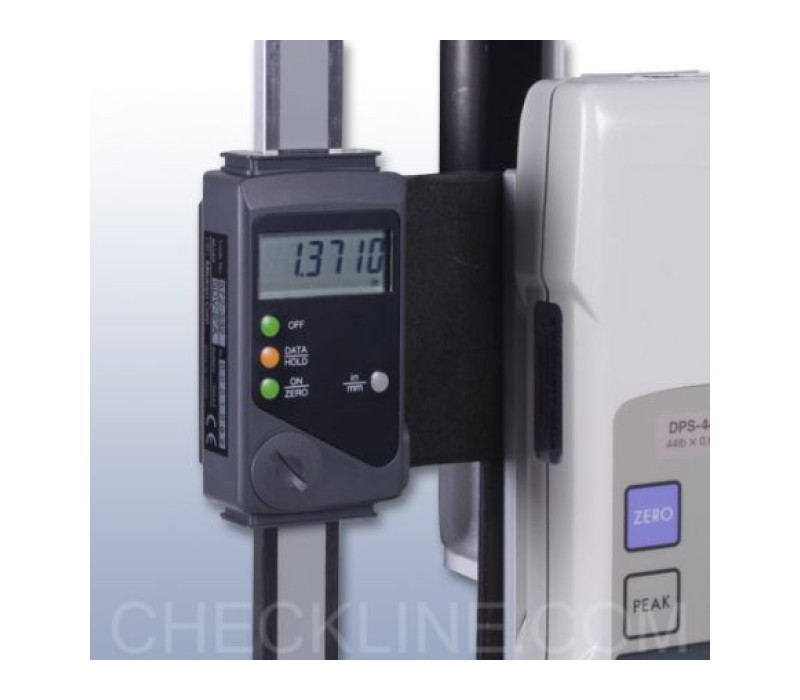

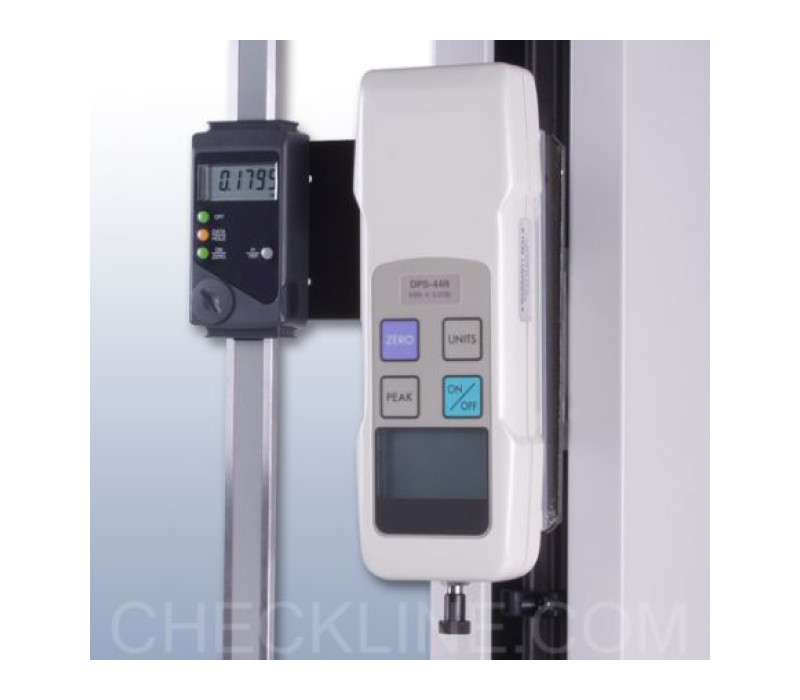

- Digital Distance Meter: Included in the S models for accurate tracking during tests.

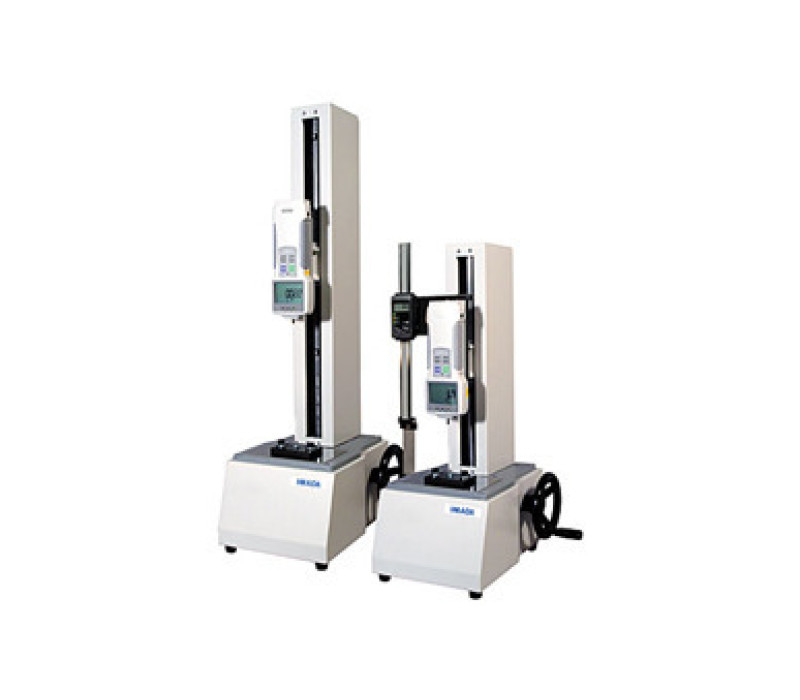

- Extended Column: Available in the L versions (HV-500N II and HV-1000N), providing greater space for larger materials.
Key Benefits:
- Testing Versatility: Suitable for a wide range of industrial applications, from material testing to quality control tests.
- Ease of Use: Its intuitive and ergonomic user interface facilitates quick changes between samples, enhancing efficiency in high-performance environments.
- Rugged Construction: Its aluminium structure ensures durability and reliable performance over the long term.
Contact us for more details on how the HV-N series test stands can adapt to your operational needs and enhance your force measurement processes.
Features
- Extended Compatibility: Although designed to integrate with DS2 and ZT force gauges, these stands can be adapted to use with a variety of gauges thanks to the AP-002 adapter plate.
- Customisation: Options for digital distance meters and extended columns are available to meet specific testing specifications.
- Quality Assurance: Each model comes with a 2-year warranty, ensuring commitment to quality and customer service.
Dimensions
HV-500N II test stands
|
|
H |
N |
|
HV-500N II |
597,5 |
13,5 |
|
HV-500N II-L |
797,5 |
13,5 |
|
HV-500N II-S |
597,5 |
12,3 |
|
HV-500N II-S-L |
797,5 |
12,3 |
Units: mm
HV-1000N test stands
|
|
H |
N |
|
HV-1000N II |
730 |
15 |
|
HV-1000N II-L |
880 |
15 |
|
HV-1000N II-S |
730 |
13,8 |
|
HV-1000N II-S-L |
880 |
13,8 |
Units: mm
HV-3000N test stands
|
|
A |
|
HV-3000N |
25 |
|
HV-3000N-S |
23,8 |
Units: mm
Related Products
PS Mechanical force gauge for accurate measurements
- High accuracy mechanical gauge with ± 0.1 % full scale
- Easy to use
- Peak Force Hold function captures transient values and peaks
More details
FB Mechanical force gauge
- Ideal for precision tension and compression measurements in all environments
- Real Time and Peak Force display
- Free manufacturer´s calibration report
More details
ZT Digital Force Gauge with Luminescent EL Display
- Luminescent display is highly visible in dark locations
- Capacity up to 5000 N/Kg (push/pull)
- kgf, lbf, and N units are selectable
More details
DST Digital Force Gauge with 30,000 / sec sampling rate
- Ergonomic, durable, heavy-duty metal construction
- 30,000/sec sampling rate
- Backlit LCD reversible display with user-friendly menus
More details
MX-110 Motorized Vertical Test Stand
- One stand for both compression (push) and tension (pull) tests
- Jog, Single Cycle, Continuous Cycle, Force Control
More details
MX2 Motorized Test Stand
- Dual Support for Tests: Enables the performance of both compression (push) and tension (pull) tests, covering a wide range of testing applications.
- Ultra Structural Rigidity: Minimal deflection of 0.5 mm at maximum load, ensuring structural accuracy even under extreme stress.
- Versatility in Operation Modes: Includes Manual, Increment, Single Cycle, Continuous Cycle, and Force Control (with ZT Series gauges), adapting to diverse testing needs.
More details
Specifications
| Capacity: | 50kg / 500N / 110lb 150kg / 1500N / 300lb 250kg / 2500N / 500lb 300kg / 3000N / 750lb |
| Max. Sample Height: | HV-500N II - 240mm, 440mm with L option HV-1000N - 375mm, 525mm with L option HV-3000N - 415mm |
| Dimensions | Refer to dimensions above |
| Weight: | HV-500N II - Approx 10 Kg HV-1000N - Approx 18 Kg HV-3000 - Approx 24 Kg |
| Compatible Force Gauges: | ZT, DP, PS, PSM and FB series |
| Warranty | 2 years |
| Options | S versions come with distance gauge Extended L versions available for 500N and 1000N |
