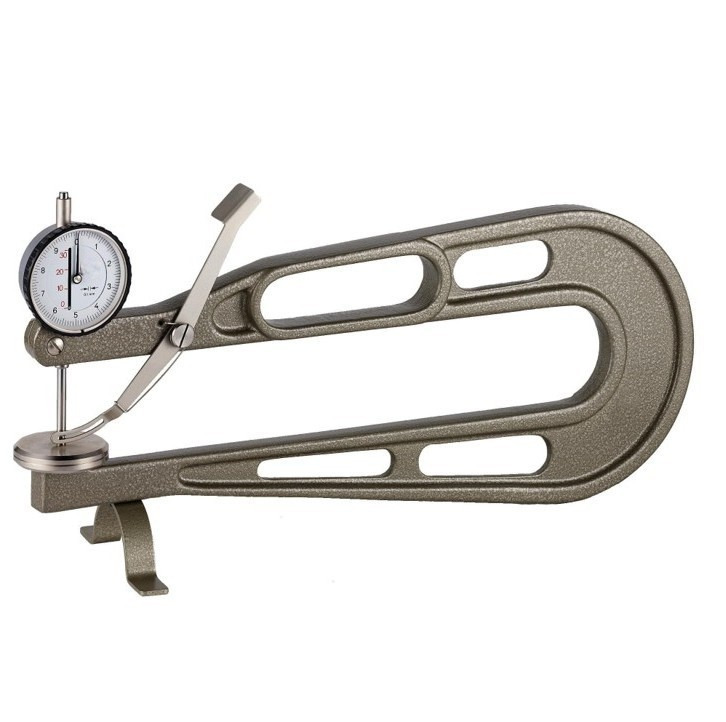

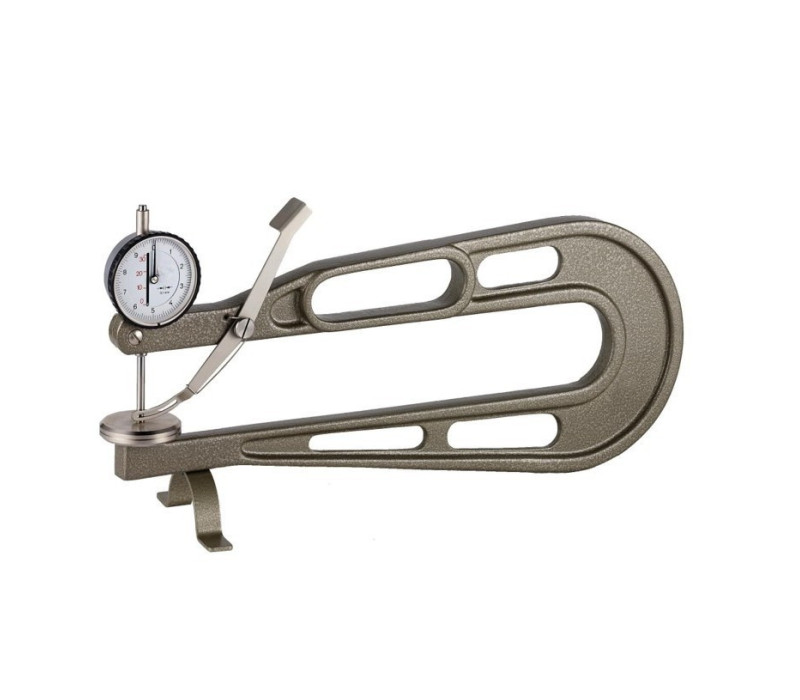

K-300 Thickness Gauge
Explore the K-300 Thickness Gauge, designed to accurately measure the thickness of a wide variety of materials including leather, textiles, cardboard, felt, rubber, metals, foils, and plastic parts. This model stands out for its functionality and robustness, offering precise measurements thanks to its meticulous design.
Key Features:
- Optimal Operation: Operates using a lifting device that provides automatic closing, allowing for quick and efficient measurements.
- High Resolution: Capable of measuring with a resolution of 0.1 mm, ensuring accuracy with each use.
- Measurement Flexibility: Compatible with five different types of feelers, available for customization according to specific measurement needs.
Key Benefits:
- Versatility: Ideal for measuring materials from leather to metals, ensuring flexibility across numerous industrial and commercial applications.
- Durable Construction: The aluminum housing is not only lightweight but also robust, suitable for frequent use in demanding environments.
- Ease of Use: Designed to be easy to operate, enhancing user efficiency with a swing-out foot for tabletop use.
Contact us for more details on how the K-300 Thickness Gauge can facilitate your measurement processes and ensure the quality of your products.
Features
- Enhanced Adaptability: Available with options for standard, reduced, and increased spring force, allowing customization of measurement pressure according to the specific needs of the material and application.
- Operational Efficiency: Its design allows for easy zero adjustment by turning the outer knurled ring, simplifying calibration and initial setup.
To place your order, please indicate the desired feeler, for example: K-300-B for a gauge with feeler B. This means that NOT all feelers are included in the package!
 |
Feeler: A For rubber, felt*, soft materials*, non-wovens*, etc. |
 |
Feeler: B For rubber, felt*, soft materials*, non-wovens*, etc. |
 |
Feeler: C For soft leather, cardboard, paper, films, etc. |
 |
Feeler: D For hard leather, plywood, fibre boards, etc. |
 |
Feeler: E For sheet metal, etc. |
Specifications
| Resolution: | 0.1 mm |
| Measuring range: | 30 mm |
| Depth of jaw: | 300 mm |
| Scale diameter: | 58 mm |
| Measuring pressure: | 2 N (On request: 1 N or 4 N) |
| Feeler shape: | a,b,c,d or e |
| Measurement by spring load: | Operating by lifting device - self closing |
| Weight, net: | 1000 g |
Buy Now
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
