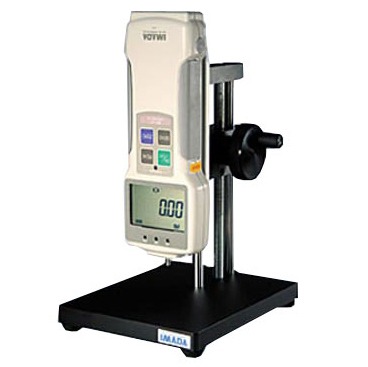

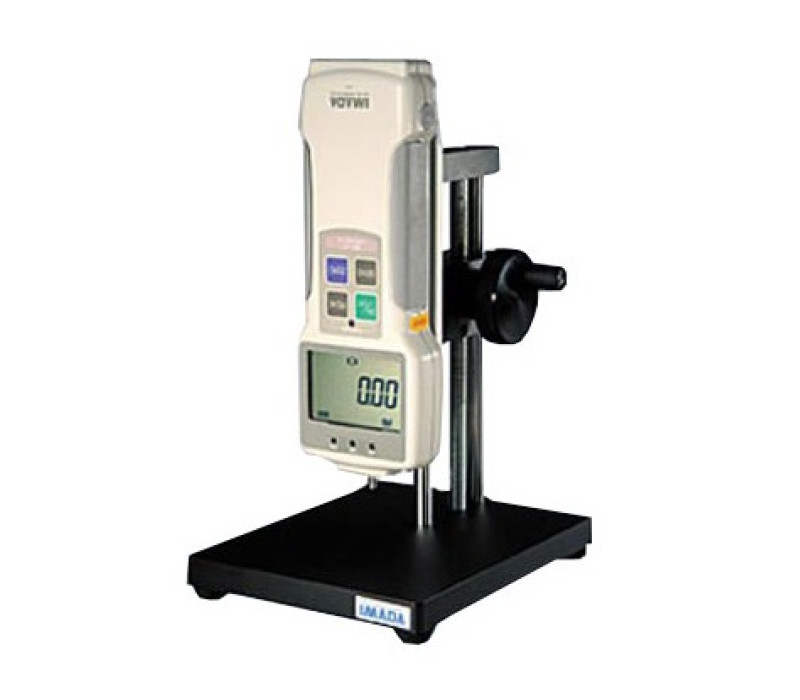

KV-11 Manual Handwheel Test Stand
Discover the KV-11 from Checkline, a manual handwheel test stand specifically designed for precise measurement of small deflections in delicate applications such as membrane switches and micro switches. This device provides detailed measurements necessary to ensure the quality and performance of various devices.
Key Features:
- Precision in Small Measurements: Specifically designed to capture small deflections, the KV-11 handles delicate applications with precision, making it ideal for specialised testing environments.
- Digital Distance Meter: The KV-11S model includes a highly accurate digital distance meter, making it easier to precisely measure and read results, enhancing testing efficiency.
Key Benefits:
- Adaptability: Accepts any force gauge with a maximum capacity of 50N, offering flexibility for various types of tests.
- Functional Design: Its setup allows for compression operation with reduced margin and fine movement, essential for obtaining high precision measurements.
Contact us for more information on how the KV-11 test stand can be part of your testing environment, offering high precision and ease of use.
Features
- Portability: Its compact size and lightweight make the KV-11 a portable unit, easy to move and use in different environments.
- Rugged Construction: Despite its compact size, the KV-11 is built to withstand rigorous use in industrial environments, ensuring precise and consistent measurements over time.
Dimensions
KV-11 dimensions
All sizes are in mm and (inch)
| Display | Push button for inch/mm, zero set and on/off |
| Resolution | 0.0005"/0.01 mm |
| Accuracy | 0.1% of reading or 0.005"/0.1mm, whichever is greater |
Related Products
DS2 Digital Force Gauge
- Real time and peak mode (selectable)
- lb, kg, and Newton units are push-button selectable
More details
DST Digital Force Gauge with 30,000 / sec sampling rate
- Ergonomic, durable, heavy-duty metal construction
- 30,000/sec sampling rate
- Backlit LCD reversible display with user-friendly menus
More details
PS Mechanical force gauge for accurate measurements
- High accuracy mechanical gauge with ± 0.1 % full scale
- Easy to use
- Peak Force Hold function captures transient values and peaks
More details
FB Mechanical force gauge
- Ideal for precision tension and compression measurements in all environments
- Real Time and Peak Force display
- Free manufacturer´s calibration report
More details
Accessories
Category Force Gauge Accessories
Large assortment of grips, attachments and other accessories for analog and digital force gauges.
More details
Specifications
| Capacity | 50N |
| Stroke | 69.85 mm |
| Travel Rate | 1 mm per revolution of hand wheel |
| Dimensions | Refer to dimensions above |
| Compatible Gauges | ZT, DST, DS2, FB and PS |
| Warranty | 2 years |
