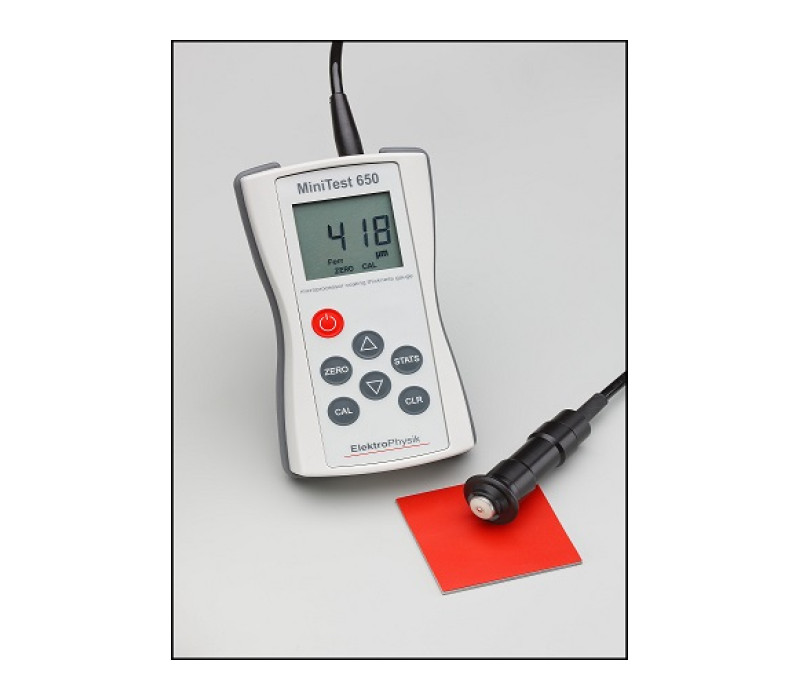

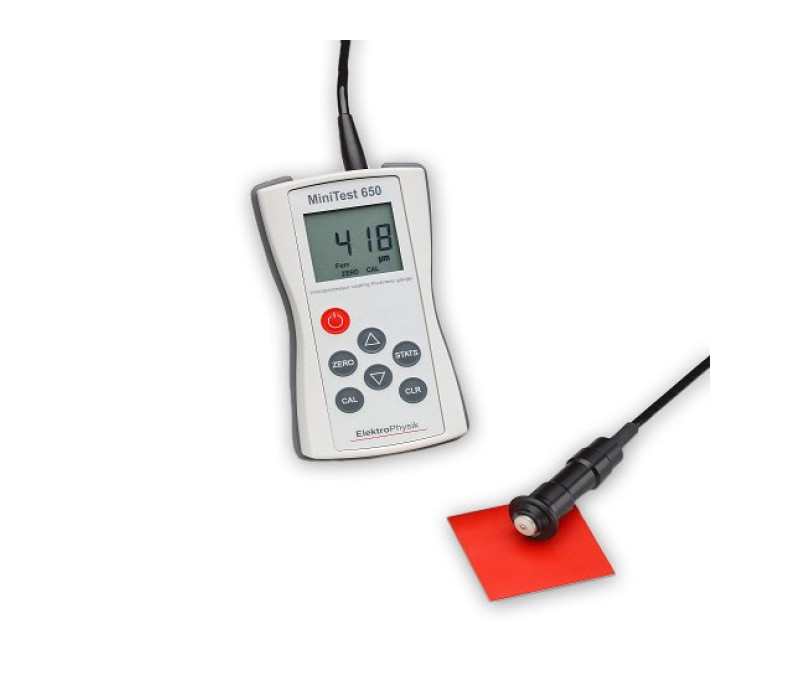

MiniTest 650 Coating Thickness Gauge
Important Note: The DCF-900 Low Cost Coating Thickness Gauge is no longer available and has been replaced by the MiniTest 650. This new model offers significant improvements in functionality and performance.
For Professional Applications
The MiniTest 650 is a robust and versatile coating thickness gauge designed to provide precise and non-destructive measurements on a variety of ferrous and non-ferrous metals. This instrument is essential for professionals in industries such as shipbuilding, automotive, and construction.
Available Models:
- MiniTest 650 F: Magnetic-induction sensor for measurements on steel substrates.
- MiniTest 650 N: Eddy current sensor for measurements on non-ferrous metals.
- MiniTest 650 FN: Dual sensor for measurements on both steel and non-ferrous metals, using both measuring principles.
Key Features:
- Durable Construction: Designed to withstand harsh environments and abrasive surfaces, ensuring reliable and long-lasting measurements.
- Easy to Use: Features a backlit display and an ergonomic design for simplified and efficient operation.
- Advanced Sensor Technology: Equipped with sensor technology that provides accurate and repeatable measurements.
Key Benefits:
- High Precision: Delivers reliable measurements with an accuracy of ± (2 µm + 3% of reading), ideal for rigorous quality controls.
- Adaptability: Suitable for a wide range of industrial applications, from quality control in manufacturing to on-site construction inspections.
- Portability: Its compact design allows easy transportation to any site, facilitating inspections in any environment.
Contact us for more information or to place an order. Our technical team is ready to assist you in selecting the coating thickness gauge that best fits your operational and technical needs.
Features
- Rugged and easy-to-handle coating thickness gauge
- High repeatability
- For fast and precise measurements of non-magnetic coatings on steel and insulating coatings on non-ferrous metals
- Ram- and impact-protected through rubber rimmed casing

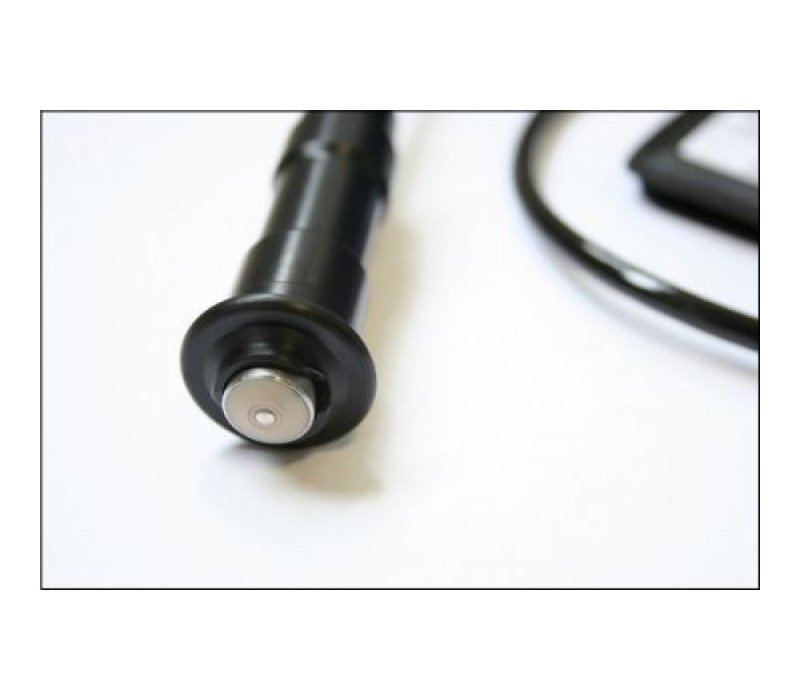

- Sensor with newly developed wear-resistant carbide metal tip
- Automatic identification of the substrate material
- External sensor
- Proven measuring methods
- USB-interface to transfer measuring data to a PC
- Statistical evaluation of readings
- Coating thickness measurement up to 2 or 3 mm
- Data transfer program Msoft7000 basic edition
- DIN EN ISO 1461, 2178, 2360, 2808, 3882, ASTM B 244, B 499, D7091, E 376

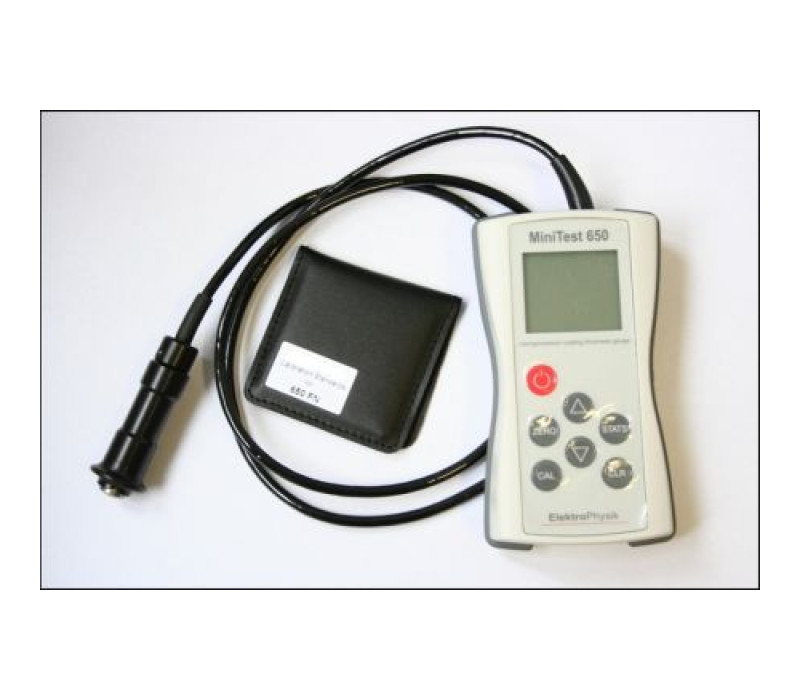

The MiniTest 650 Coating Thickness Gauge is delivered as a complete kit with:
- MiniTest with sensor and three batteries
- Control standard(s)
- Calibration standard(s)
- Operating instructions
- Soft pouch
- Data transfer program Msoft7000 basic edition
Accessories
Cic-Coating Calibration Coating Thickness Gauge
- Easy planning of calibration
- Short turnaround
- Possibility to adjust and repair
- In accordance with DIN EN ISO 2178, 2360, 2808 and meets or exceeds the indicated accuracy.
More details
Specifications
| Measuring Range | Model F (steel) 0 … 3000 μm / 120 mils Model N (non-ferrous metal) 0 … 2000 μm / 80 mils Model FN (dual sensor) 0 … 2000 μm / 80 mils |
| Measuring Uncertainty | ± (2 % of reading + 2 μm) / ± (2 % of reading + 0.08 mils) |
| Minimum curvature radius convex | 5 mm / 0.2“ |
| Minimum curvature radius concave | 25 mm / 1“ |
| Minimum measuring area | Ø 20 mm / 0.8“ |
| Minimum base thickness: | 0.5 mm / 20 mils (F) / 50 μm / 2 mils (N) |
| Display | 4-digit screen data (11 mm) |
| Measuring units | μm – mils user selectable |
| Calibration | standard, 1-point and 2-point calibration |
| Statistics | calculated from maximum 9.999 readings, mean value, standard deviation, number of readings, minimum and maximum |
| Interface | USB |
| Power supply | 3 Micro AAA batteries (for more than 10,000 readings) |
| Dimensions and weight | housing: 70 mm x 122 mm x 32 mm / 2.7” x 4.8” x 1.26” sensor: Ø 15 mm x 62 mm / Ø 0.60” x 2.44”; 225 grams / 7.93 ozs |
| Ambient temperature | gauge: 0 to 50 °C / 32 ° to 122 °F sensor -10 ° to 70 °C / 14 ° to 158 °F |
| Warranty | 1 year |
