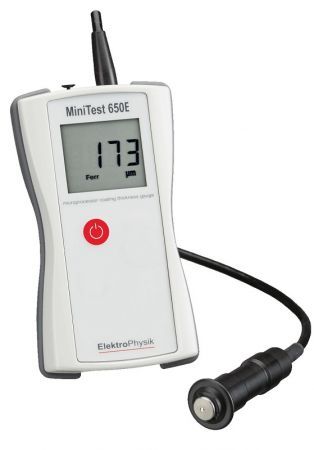

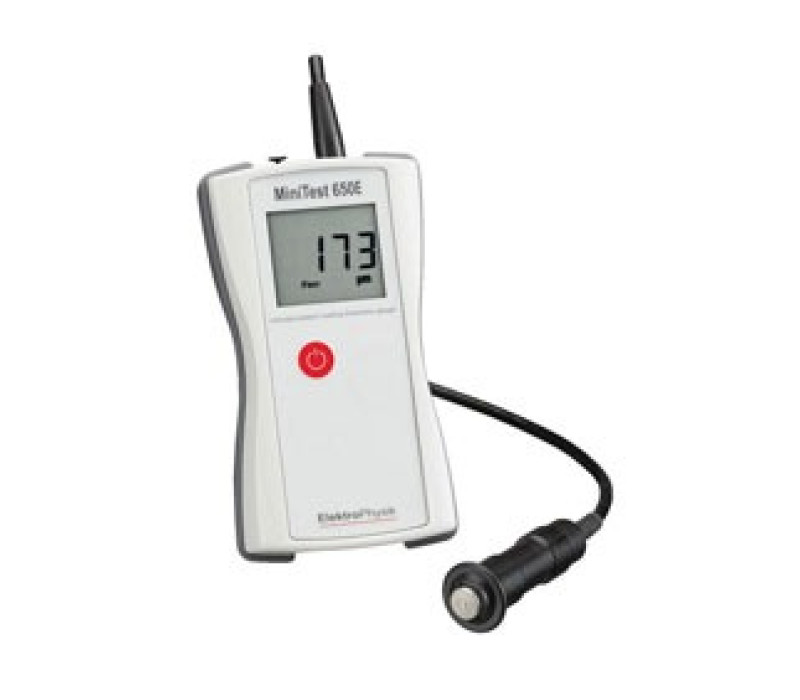

MiniTest 650E Coating Thickness Gauge
Rugged and Accurate
The MiniTest 650E is a coating thickness gauge designed for demanding work environments and abrasive surfaces, such as shot-blasted steel and plasma spray coated surfaces. This model replaces the proven MiniTest 600, offering an accuracy of ± (3 µm + 5% of reading) and is specially designed for industries such as shipbuilding, automotive, bridge construction, and general construction.
Key Features of the MiniTest 650E:
- Technical Specifications: Equipped with a magnetic-induction sensor for measurements on steel substrates (Ferro), ensuring accurate and consistent readings.
- Durable Construction: The single-pole sensor is made from a wear and tear-resistant carbide material, significantly extending its lifecycle under normal usage conditions.

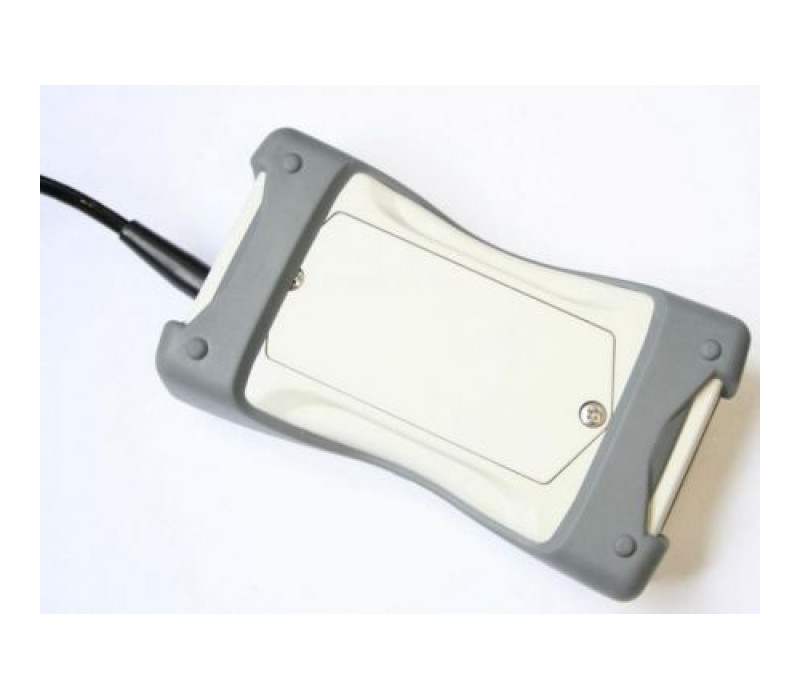

- Easy to Use: Features a backlit display and a one-meter sensor cable for convenience during measurements, plus a rubber-rimmed casing for optimal shock and impact protection.
Benefits of Using the MiniTest 650E:
- Adaptability: Ideal for measuring all non-magnetic coatings on steel and insulating coatings on non-ferrous metals.
- Portability: Its compact design and battery operation make it extremely practical for on-site inspections, facilitating fieldwork.
- Accuracy and Reliability: Ensures precise results even in challenging conditions, crucial for quality and maintenance in large industrial projects.
Contact us for more information or to place an order. Our team is ready to assist you in selecting the coating thickness gauge that best suits your operational and technical needs, ensuring effective and precise measurements in your most demanding projects.
Features
- Accuracy: ± (3 μm + 5 % of reading)
- External sensor
- For fast and precise measurements of non-magnetic coatings on steel and insulating coatings on non-ferrous metals
- Coating thickness measurement up to 2 or 3 mm
- Automatic identification of the substrate material
- DIN EN ISO 1461, 2178, 2360, 2808, 3882, ASTM B 244, B 499, D7091, E 376
- Rugged and easy-to-handle coating thickness gauge

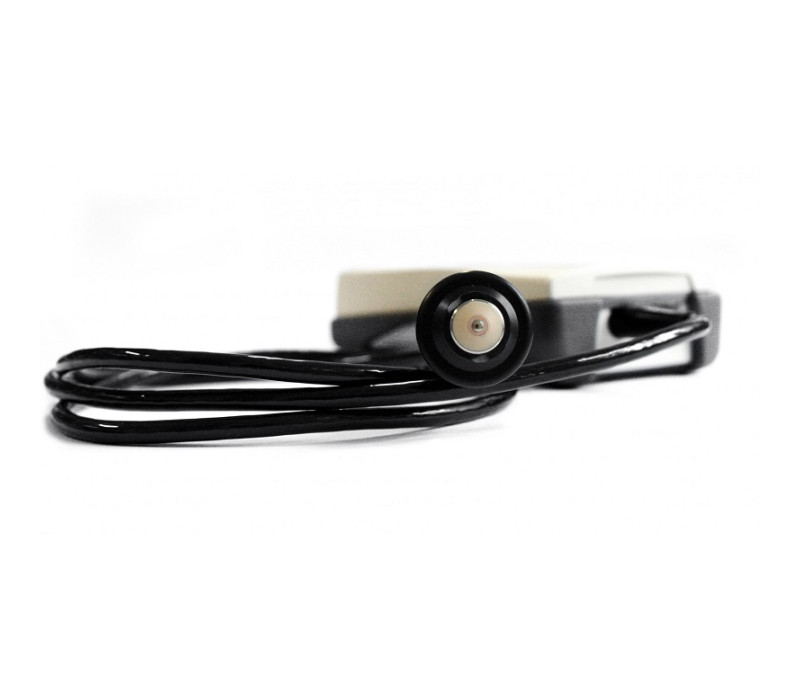

- Sensor with newly developed wear-resistant carbide metal tip
- Proven measuring methods
- For fast and precise measurements of non-magnetic coatings on steel
The MiniTest 650E Coating Thickness Gauge is delivered as a complete kit with:
- MiniTest 650E
- Steel test plate for Ferro model or Steel-, and Aluminum test plates for FN model
- Calibration foils
- Operating instructions
- Gauge tether
- Belt pouch
- Works Certificate
Specifications
| Measuring Range | Model F(Ferro sensor): 0 … 3000 μm |
| Measuring Uncertainty | ± (3 μm + 5 % of reading) |
| Minimum curvature radius convex | 50 mm |
| Minimum curvature radius concave | 100 mm |
| Minimum measuring area | ø 50 mm |
| Minimum base thickness: | 0,7 mm (F) / 0,1 mm (N) |
| Display | 4-digit screen data (11 mm) |
| Measuring units | according to model: ìm/mm or mils/inch |
| Calibration | factory calibration |
| Power supply | 3 Micro AAA batteries (for more than 10,000 readings) |
| International standards | DIN EN ISO 1461, 2178, 2360, 2808, 3882, ASTM B 244, B 499, D7091, E 376 |
| Dimensions and weight | Housing: 70 mm x 122 mm x 32 mm Sensor: Ø 15 mm x 62 mm / Ø 0.60; 225 grams |
| Ambient temperature | Gauge: 0 to 50 °C Sensor: -10 ° to 70 °C |
| Warranty | 1 year |
