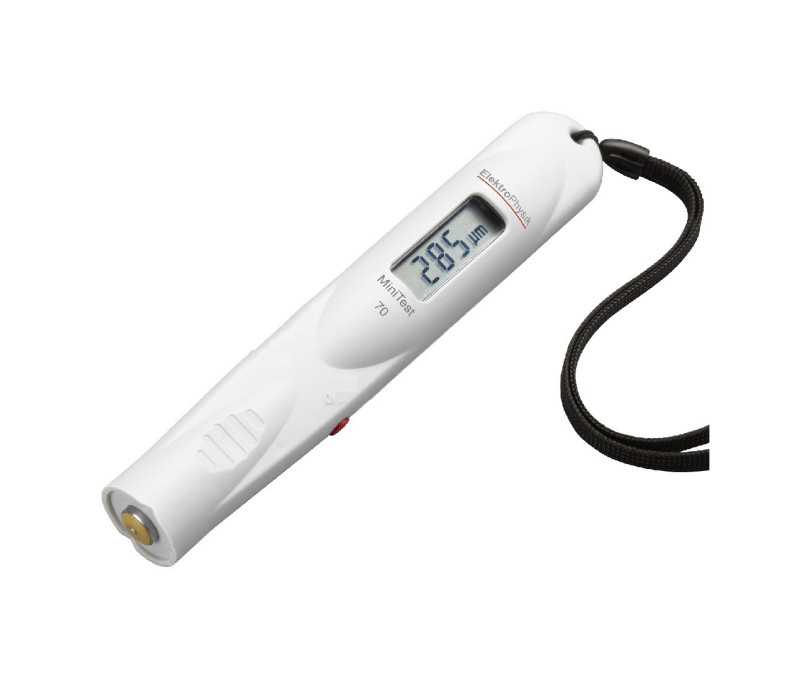

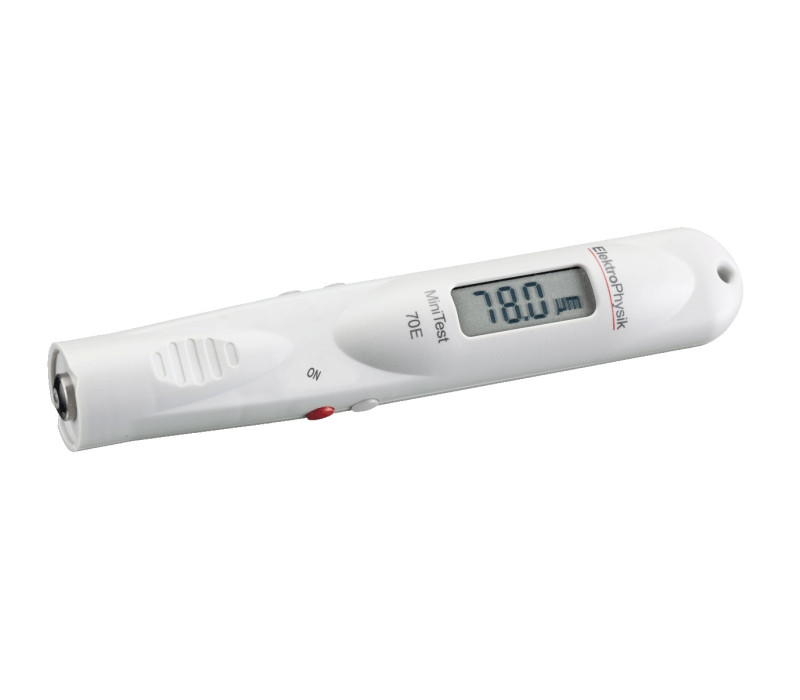

MiniTest 70E: Coating Thickness Gauge
Economical and Precise

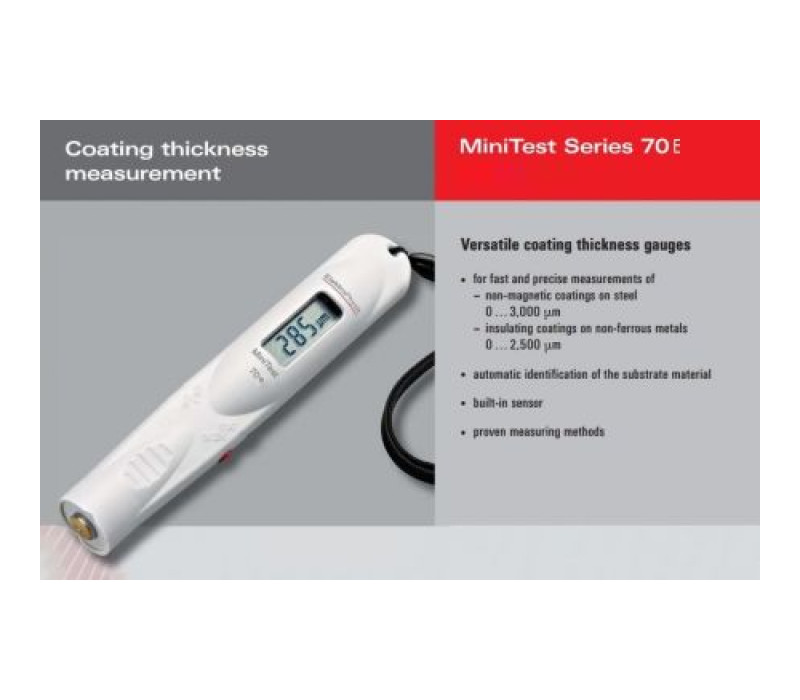

The MiniTest 70E is an economical, pocket-sized coating thickness gauge designed to be a versatile and precise tool with a built-in sensor. Ideal for measuring non-magnetic coatings on steel and insulating layers on non-ferrous metals, the MiniTest 70E meets the needs of professionals across various industries.
Key Features of the MiniTest 70E:
- Dual Model: The MiniTest 70E-FN combines functionality for both ferrous and non-ferrous metals, allowing flexible measurements across different substrates.
- Robust Construction: Equipped with spring-mounted sensors and wear-resistant sensor poles, ensuring durability and reliability even under intensive use.
- Automatic Substrate Detection: Includes a dual sensor that automatically adjusts to the appropriate measuring principle based on the detected metal type, using magnetic induction or eddy currents.
- Measurement Range: Capable of measuring from 0 to 3 mm on steel substrates and from 0 to 2.5 mm on non-ferrous metals, making it extremely versatile for various industrial applications.
Benefits of the MiniTest 70E:
- Affordable Precision: Offers excellent value for money with an accuracy of ± (2 μm + 3% of the reading), ideal for budget-conscious professionals without compromising measurement quality.

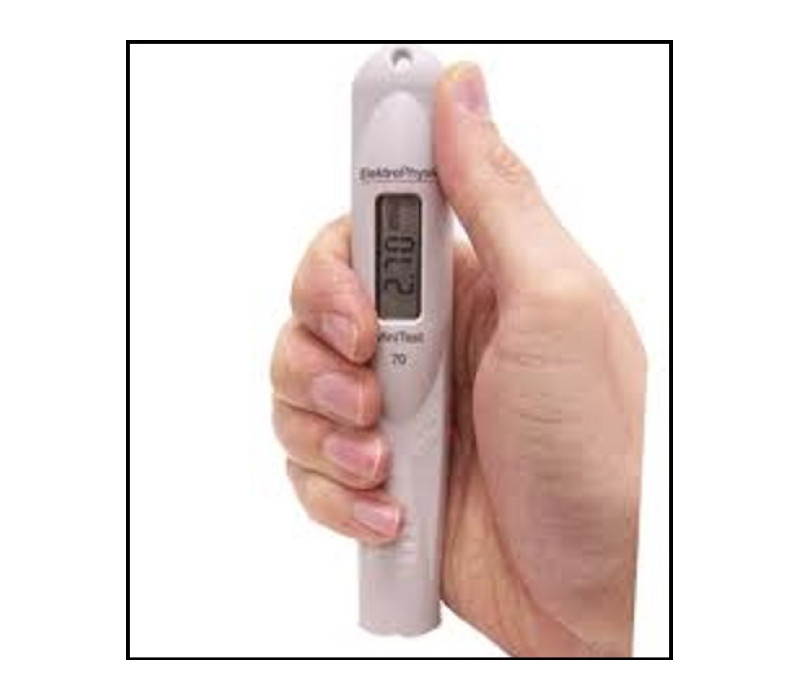

- Superior Portability: Its compact, lightweight, pencil-style design makes it easy to carry and use anywhere, essential for fieldwork and quick assessments.
- Wide Range of Applications: From the automotive industry to construction and beyond, it is the perfect tool for monitoring coating quality and uniformity across a variety of metals.
Contact us for more information or to place an order. Our team is ready to assist you in selecting the coating thickness gauge that best suits your technical and operational needs, ensuring effective and precise measurements in your most challenging projects.
Features
- Pocket sized, compact coating thickness gauge
- For fast and precise measurements of non-magnetic coatings on steel and insulating coatings on non-ferrous metals
- Lightweight: only 80 grams

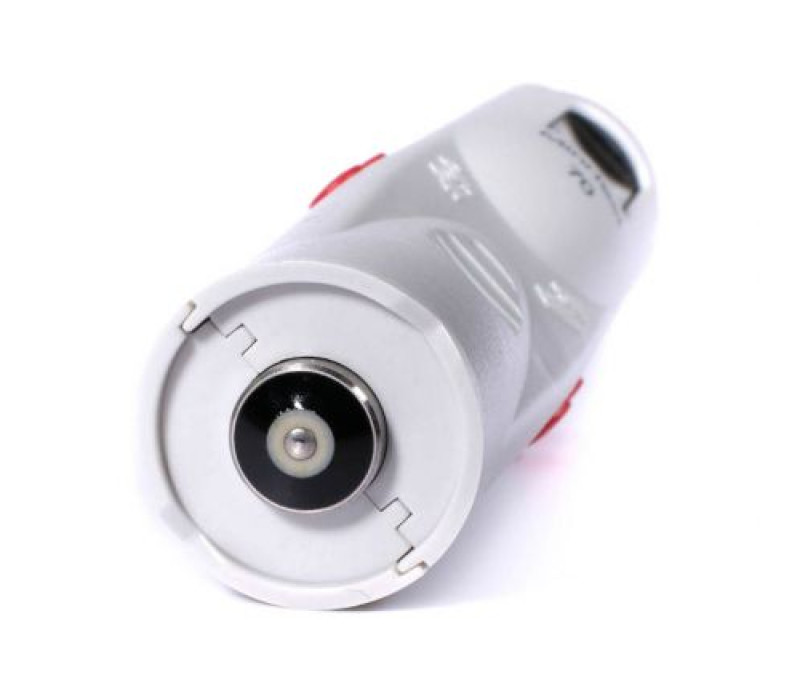

- Built-in spring-mounted sensor
- Automatic identification of the substrate material
- Measuring range on steel substrates: 0 to 3 mm
Measuring range on non-ferrous substrates: 0 to 2.5 mm - Is operated by 1 button
The MiniTest 70E Coating Thickness Gauge is delivered as a complete kit with:
- MiniTest 70E-FN
- Steel and aluminum test plates
- Calibration foils
- Operating instructions
- Gauge tether
- Belt pouch
- Works Certificate
Related Products
MiniTest 70: Coating Thickness Gauge
- Statistics function
- Enables 1-point and 2-point calibrations
More details
Accessories
Specifications
| Measuring Range | Ferro substrates: 0 to 3 mm Non-Ferrous substrates: 0 to 2.5 mm |
| Measuring Principle | Magnetic-induction/Eddy currents |
| Signal processing | Sensor integrated 32-bit signal processing (SIDSP®) |
| Accuracy | ± (3 μm + 5 % of reading) |
| Repeatability | ± (3 μm + 1 % of reading) |
| Low range resolution | 2 μm |
| Minimum curvature radius convex | 50 mm |
| Minimum curvature radius concave | 100 mm |
| Minimum measuring area | Ø 50 mm |
| Minimum substrate thickness | F: 0,7 mm / N: 0,1 mm |
| Measuring units | Metric/Imperial switchable |
| Calibration modes | Factory calibration, no calibration required |
| Operating temperature range | -10°C … +60°C |
| Storage temperature range | -20°C … +70°C |
| Power supply | 1 x AA (Mignon)-battery |
| International standards | DIN EN ISO 1461, 2064, 2178, 2360, 2808, 3882, ASTM B 244, B 499, D7091, E 376 |
| Dimensions | approx. 157 mm length, Ø 27 mm |
| Weight incl. battery | approx. 80 g |
| Warranty | 1 year |
