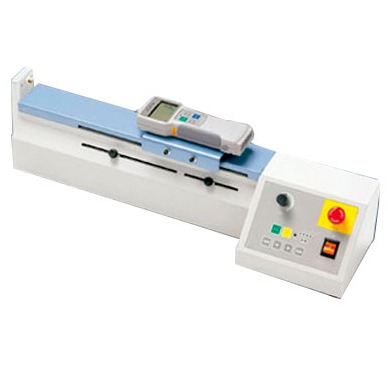

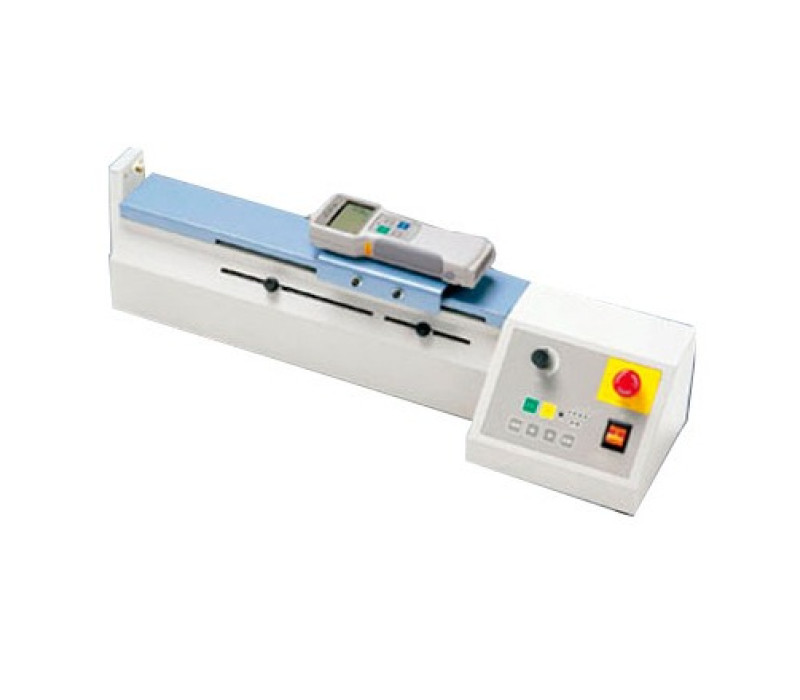

ML-275 Motorized Horizontal Test Stand
Discover the ML-275, a horizontal motorized test stand designed for demanding tension, compression, and friction testing applications. Equipped with an advanced screw system and a brushless motor, this stand offers smooth operation throughout its entire speed range, making it ideal for laboratories and industries that demand precision and repeatability.
Highlighted Features:
- Versatile Configuration: Two models available: Basic ML-275 and MH-275 with Auto Cycle and Force Control.
- Advanced Control: Includes adjustable speed, quick return, and emergency stop as standard features.
- Setpoint Force Control: Maintains force within preset values for non-destructive and creep testing.
- Force Gauge Compatibility: Compatible with IMADA DPS, Z2 & ZP gauges, providing flexibility for various measurements. *FORCE GAUGE NOT INCLUDED
Key Benefits:
- Efficient and Safe Operation: Facilitates complex tests with intuitive controls and integrated safety, ensuring a safe work environment.
- Customization for Specific Tests: Utilizes options such as a digital timer and distance meter to tailor the device to your specific testing needs.
- High Repeatability and Precision: The combination of advanced technology and rigorous process control ensures consistent and reliable results with each use.
Contact us for more information on how the ML-275 can transform your measurement processes and to receive personalized advice on the ideal solution for your application.
Features
- Dual Support: Facilitates both compression and tension tests, extending the versatility of the stand for various applications.
- Latest Generation Brushless Motor: Provides extremely smooth and powerful operation, suitable for all types of tests, from the most delicate to the most demanding.
- Optional Digital Distance Meter: Allows precise measurement of displacement during tests, ideal for applications that require detailed distance tracking.
- Intuitive Digital Controls: Adjust mode, speed, and other testing parameters with ease using a simple turn of the control dial.
- Optional Digital Timer: Set force hold duration up to 100 minutes in one-second increments, allowing for prolonged testing with exact temporal precision.
- Quick Return and Emergency Stop Function: Ensures safe and efficient operation, allowing immediate stopping of the equipment if necessary to protect the user and samples.
- No Complex Programming Required: Designed to be easily operated without complicated setups, facilitating use in environments where time and ease of use are critical.
| Standard Speed | 0.3 – 7 in/min (10 - 292 mm/min) |
| Low Speed | 0.2 - 4.2 in/min (18 - 584 mm/min) |
| High Speed | 0.6 - 15.7 in/min (38 - 1194 mm/min) |
Dimensions
Related Products
DS2 Digital Force Gauge
- Real time and peak mode (selectable)
- lb, kg, and Newton units are push-button selectable
More details
Specifications
| Capacity | 275 lbs / 125 Kg / 1250 N |
| Stroke | 11.8" / 300 mm |
| Travel Rate | Refer to Speed Ranges above |
| Dimensions | Refer to dimensions above |
| Weight | 31 lbs / 14 kg |
| Compatible Gauges | DS2, Z2 and ZP |
| Warranty | 2 years |
