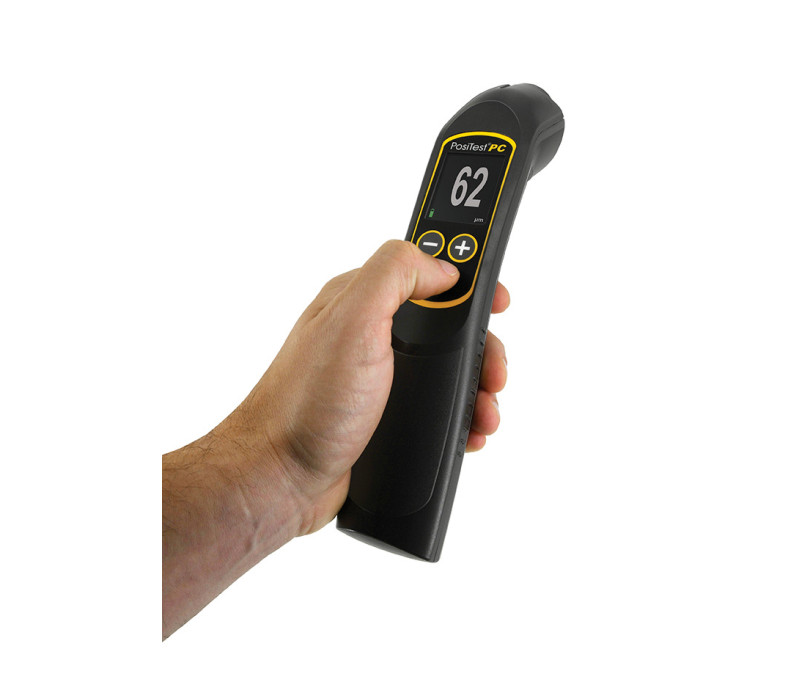

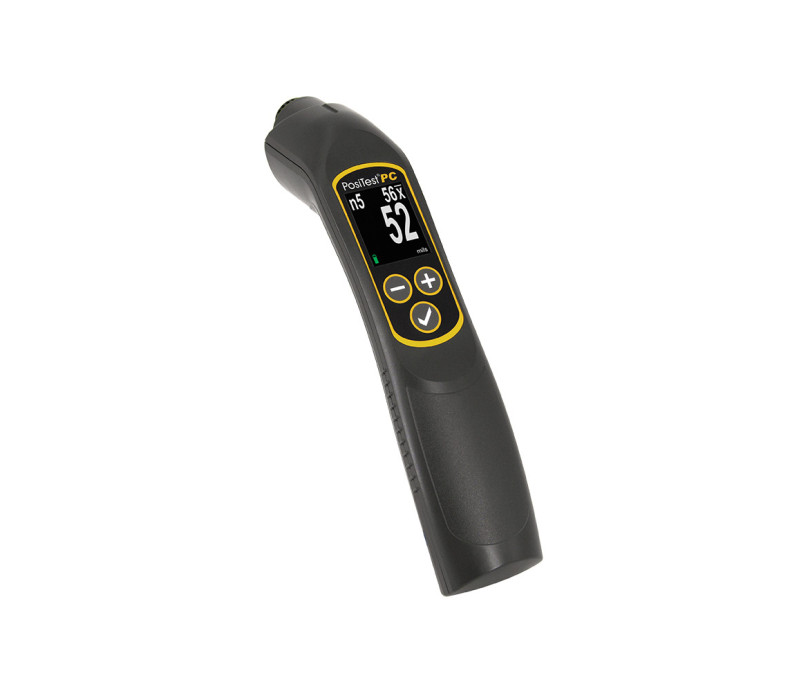

PosiTest-PC Uncured Powder Thickness Gauge
Non-Contact Ultrasonic Technology
The PosiTest-PC is the next generation of coating thickness gauges for uncured powder, designed to deliver rapid and accurate non-contact measurements. By evaluating the film thickness before curing, this device enables immediate detection and correction of potential application errors, thereby preventing adhesion and coating integrity issues and reducing time and costs in the production process.
Key Features:
- Standalone Unit: Exclusively designed for measuring the thickness of uncured powder.
- Non-Contact Measurement: Utilises ultrasonic technology to obtain precise readings without damaging the coating surface.
- High Speed: Performs measurements up to four times faster than previous generations, ideal for moving lines and oscillating parts.
- Ready to Use: Requires no calibration adjustments for most powders, allowing immediate measurement upon unpacking.
- Continuous Scan Mode: Facilitates uninterrupted analysis of large surfaces, optimising quality control.
Key Benefits:
- Immediate Correction: Pre-curing measurement enables instant adjustments, ensuring coating quality and adhesion.
- Operational Efficiency: Its high measurement speed and ease of use boost productivity by reducing inspection times in the manufacturing process.
- Seamless Integration: Its standalone design and no need for calibration make it ideal for integration into production lines, enabling continuous, real-time quality control.
Contact us for more information or to place an order. Our team of experts is ready to assist you in selecting the uncured powder thickness gauge that best meets your operational and technical needs, ensuring precise and reliable results in your production processes.

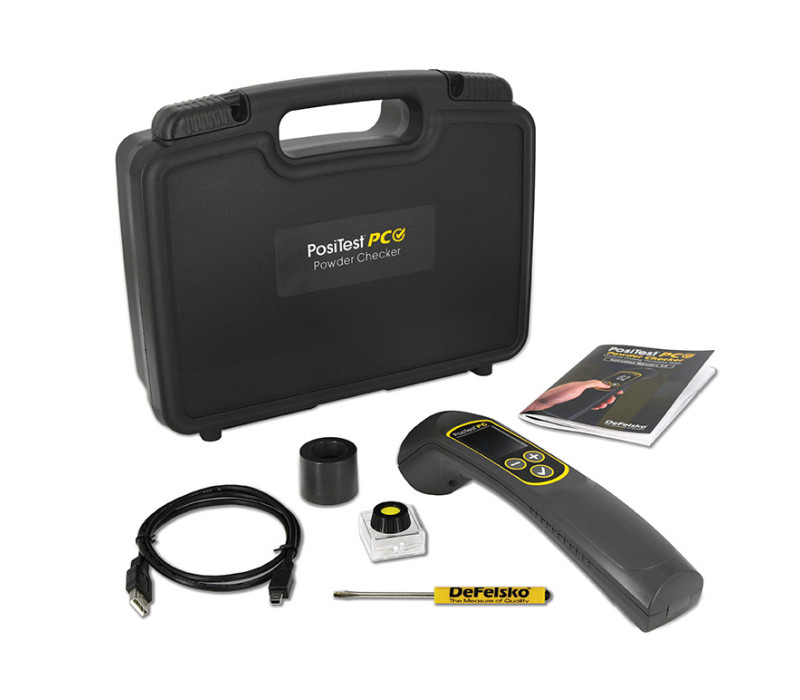

The PosiTest-PC is delivered as a complete kit including:
- PosiTest-PC powder checker
- Probe zero fixture
- 4 AAA batteries (display unit)
- User manual
- Instruction video
- Flat-head screwdriver
- USB cable
- Replacement probe screen
- Foam filled hard shell plastic carrying case
Simple
- Dedicated stand-alone unit is ready to measure right out of the box

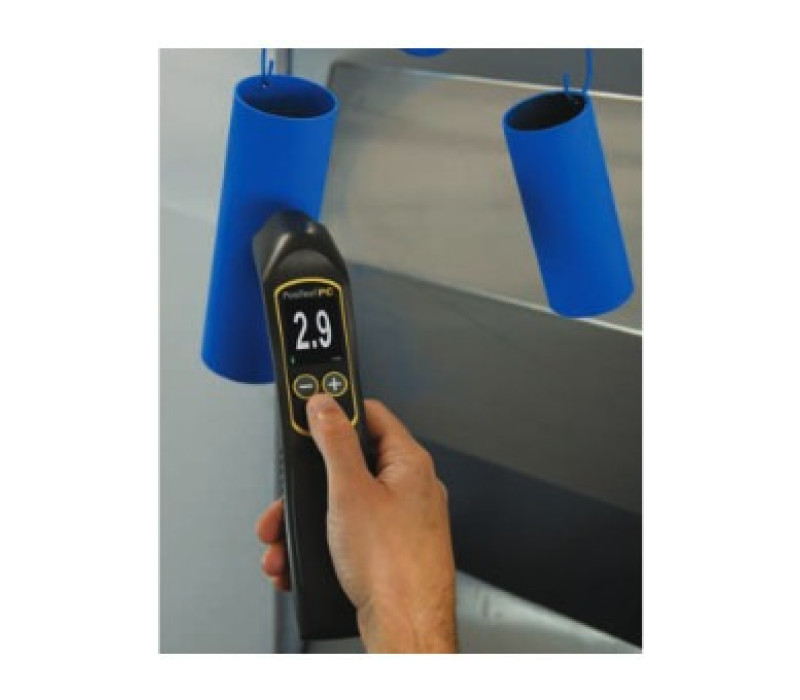

- Up to 4x faster measurement speed* — ideal for moving lines and swinging parts
- Easy-to-read digital display with a simple icon based menu
- Hand-held battery operated
- Ergonomic and lightweight
- No calibration adjustment required for most powders

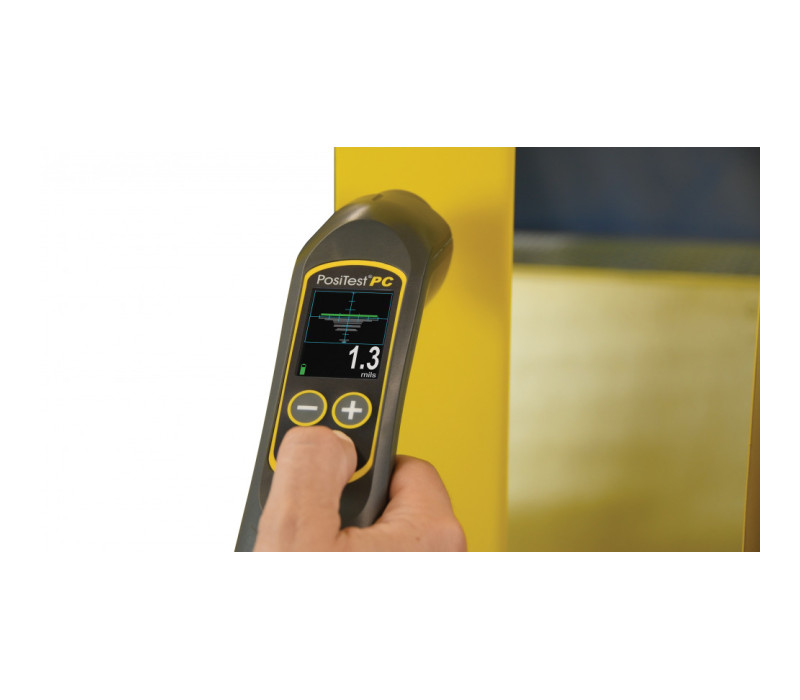

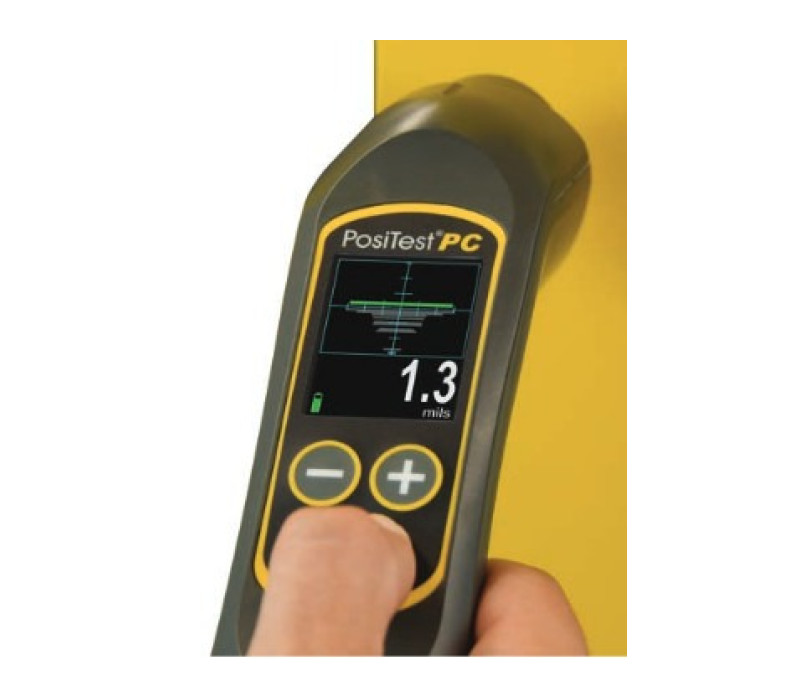

- Target Grid simultaneously displays distance to the part and alignment making measurements easy
- RESET features instantly restores factory settings
Durable
- Solvent, acid, oil, water and dust resistant — ideal for harsh powder coating environments
- Hard-shell carrying case included
- Replaceable screen protects the sensor
- Two year warranty
Accurate
- Improved sensor technology allows easier measurement on small tubes, odd shapes and moving parts
- Easy 1 and 2 point calibration adjustment options with Cal Reset to improve accuracy on unusual powders or substrates
- Conforms to ASTM D7378
Versatile
- No cable to risk disturbing the applied powder
- Mils/microns switchable
- High contrast color display
- Adjustable display brightness for optimal visibility in any environment
- Toggle sound On and Off
- Uses alkaline or rechargeable batteries
Powerful
- Storage of 999 readings with onscreen averaging. Stored readings can be downloaded to PosiSoft Desktop software
- Scan Mode continuously takes measurements - ideal for analyzing large areas
- USB Keyboard Mode emulates keystrokes to easily stream readings to a PC or PLC
- USB port for fast simple connection to a PC and to supply continuous power
- Software updates keep your instrument current
Related Products
Cic-Coating Calibration Coating Thickness Gauge
- Easy planning of calibration
- Short turnaround
- Possibility to adjust and repair
- In accordance with DIN EN ISO 2178, 2360, 2808 and meets or exceeds the indicated accuracy.
More details
PosiTector-PC Powder Checker
- Wireless probe communicates with base unit up to 10m away. (30 feet)
- Advanced new technology allows measurement on small tubes, odd shapes and moving parts
- Continually displays/updates basic statistics including min/max and average
More details
Specifications
| Measurement range*: | 20 to 100 microns (0.8 to 4.0 mils) * Based on TGIC-Free polyester powder. |
| Resolution: | 1 µm (0.1 mil) |
| Accuracy: | ± 5 µm (0,2 mil) |
| Measurement Time: | 1 - 3 seconds |
| Warranty: | 2 years |
| Dimensions: | 241 x 64 x 51 mm |
| Weight: | 180 g without batteries |
