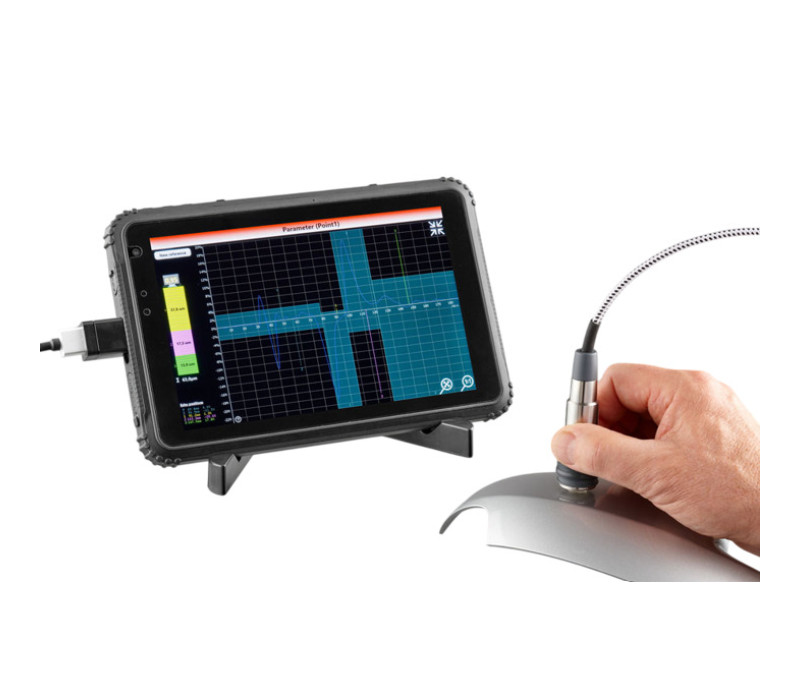

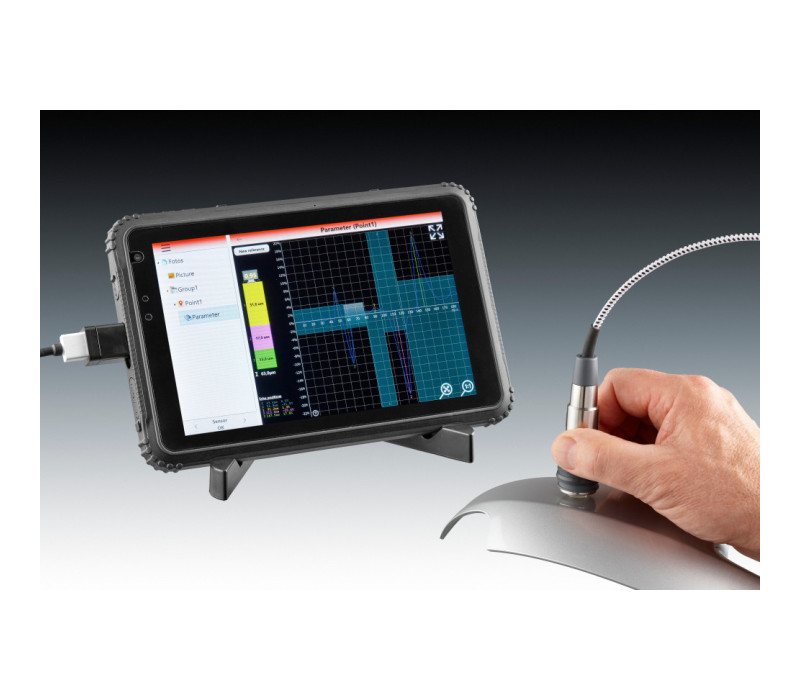

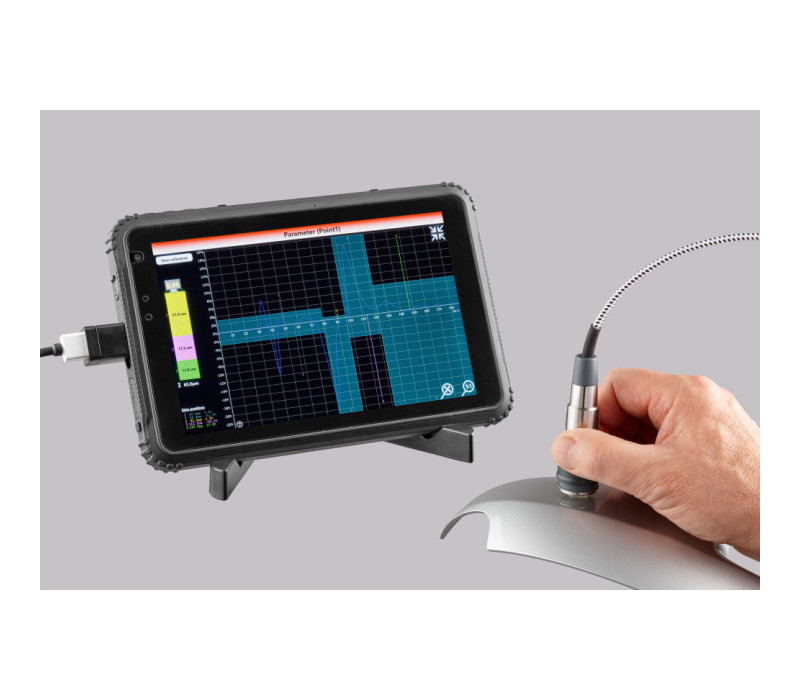

QuintSonic-T Coating Thickness Gauge
The QuintSonic Thickness Gauge is no longer available and has been replaced by Quintsonic-T. This new model offers significant improvements in functionality and performance.
The QuintSonic-T redefines coating thickness measurement by combining precision, ease of use, and cutting-edge technology. This portable device is designed to deliver exceptional versatility and performance across a wide range of environments, from laboratories to production workshops.
Key Features:
- Efficient Data Storage: Incorporates built-in data storage for measurements and results, with easy USB export.
- Advanced Connectivity: Offers modern options such as Bluetooth for real-time data transfer to mobile devices or cloud systems.
- High-Precision Calibration: Features an advanced calibration system that guarantees consistent and reliable measurements.
- Portable and Ergonomic Design: Compact and user-friendly with an intuitive interface, ideal for on-site measurements in industrial environments.
Key Benefits:
- High Durability: Built to withstand harsh conditions with an IP65 rating that makes it resistant to water and dust.
- Cost-Effective Compatibility and Upgradability: Allows integration with sensors from previous models, offering an economical solution to modernise your measurement equipment.
- Customisation for Specific Applications: Adjustable configurations adapt to various types of materials and measurement requirements, facilitating optimal quality control.
Contact us for more information or to place an order. Our team of specialists is ready to advise you and help you select the coating thickness gauge that best meets your operational and technical needs, ensuring precise and reliable results for your projects.
Features
- Non-destructive coating thickness measurement.
- Measurement capability up to 7.5 mm (0.29 inches), depending on the material.
- Includes a large, rugged tablet display.
- Enables measurement of both total thickness and individual layer thickness in multi-layer systems in a single operation.
- Storage of measurements, statistics, and material calibrations.

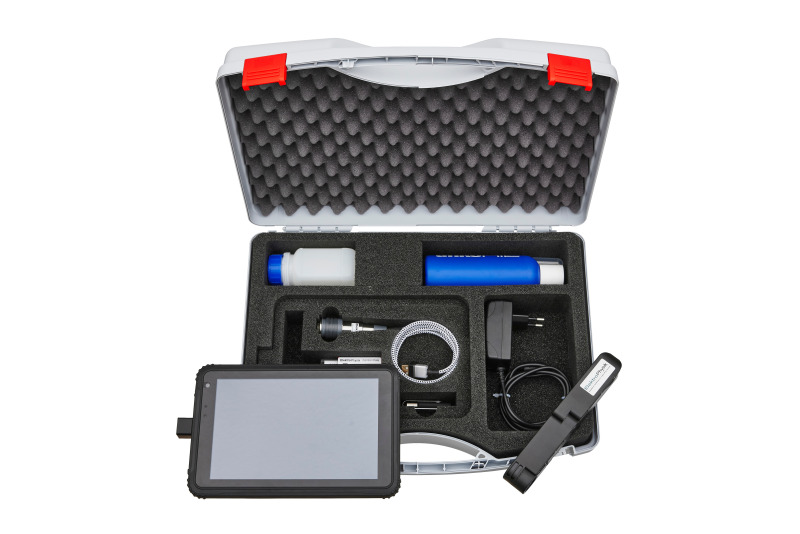

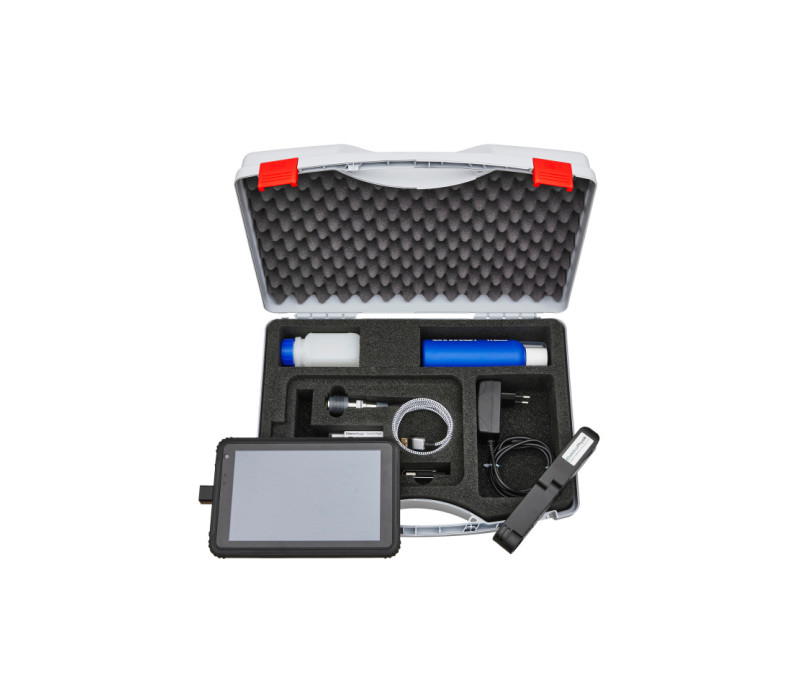

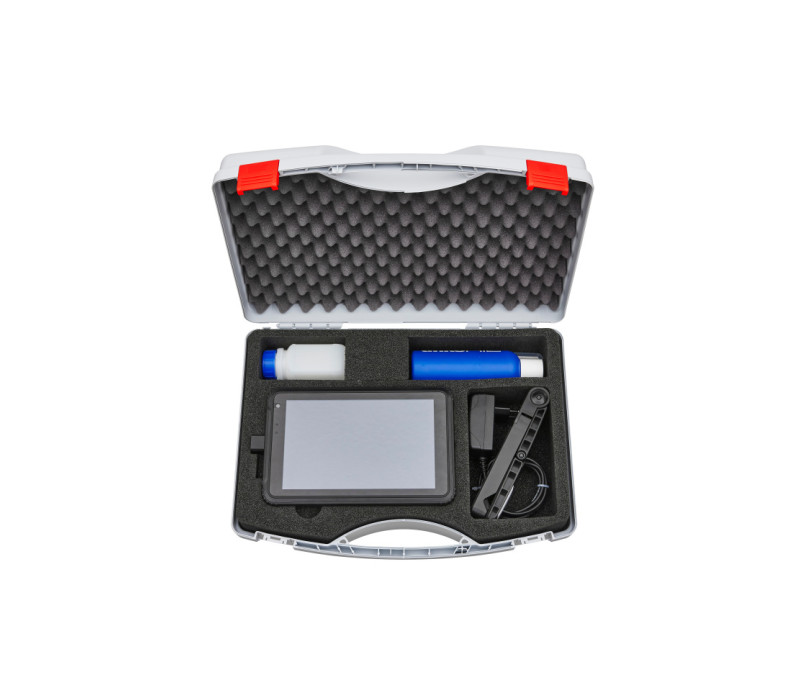

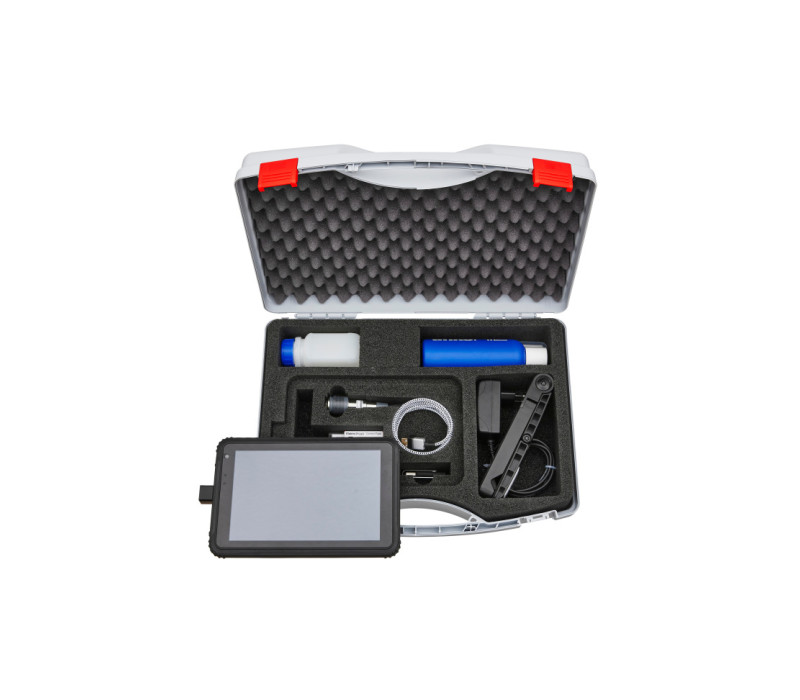

The QuintSonic-T ultrasonic coating thickness gauge is provided as a complete kit, which includes:
- QuintSonic-T coating thickness gauge
- Industrial display tablet
- Tablet stand
- Probe with 1 m (39") cable
- User manual in German and English
- Bottle of distilled water
- Bottle of coupling gel
- Plastic carrying case
Related Products

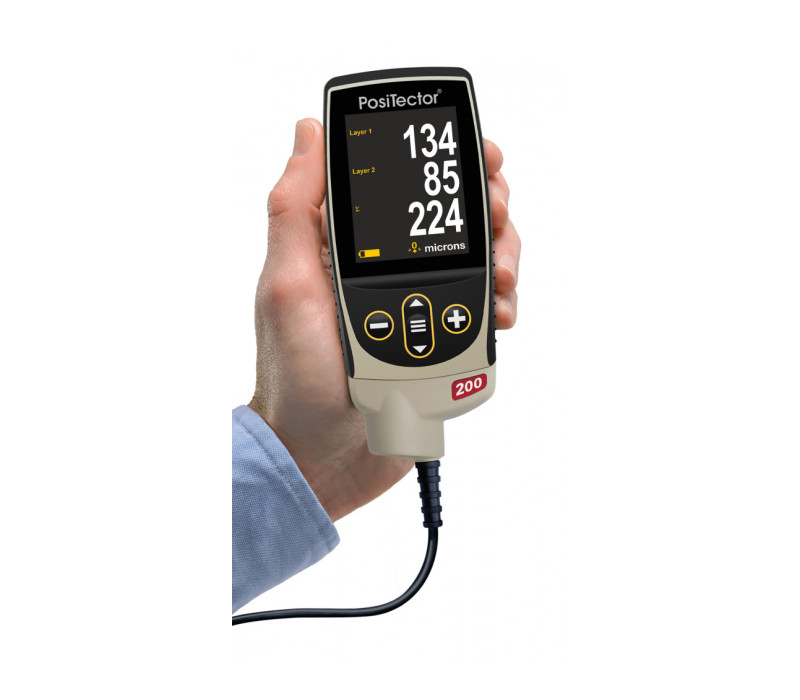

Positector 200 Coating Thickness Gauge
- USB/Serial/IR Ports for downloading to a PC, printer or data collector
- Solvent, acid, oil, water and dust resistant - meets or exceeds IP5X
More details
Specifications
| Measurement Range / Resolution / Accuracy | Layer 1: Measurement range of 356 µm, resolution of 0.25 µm, accuracy of 0.25 µm. Layer 2: Measurement range of 890 µm, resolution of 0.5 µm, accuracy of 0.5 µm. Layer 3: Measurement range of 1,900 µm, resolution of 1 µm, accuracy of 1 µm. Layer 4: Measurement range of 3,900 µm, resolution of 2 µm, accuracy of 2 µm. Layer 5: Measurement range of 7,500 µm, resolution of 4 µm, accuracy of 4 µm. (Values calculated at an ultrasonic speed of 2375 m/s across all layers). |
| Minimum Layer Thickness: | Approximately 10 µm / 0.3 mils (variable depending on the ultrasonic speed in the layer). |
| Minimum Measurement Area: | 5 mm Ø / 0.2" Ø. |
| Measurement Time: | Approximately 1 second. |
| Statistical Functions (per batch): | Number of measurements, minimum and maximum values, mean, standard deviation, coefficient of variation. Block Statistics (user-adjustable or as per standards). Graphical Representations: Histogram and trend chart. |
| Minimum Radius of Curvature | Convex: 50 mm / 2". Concave: Not applicable. |
| Measurement Units: | µm, mm, mils, inches. |
| Operating Temperature: | +5 to +50 °C. |
| Storage Temperature: | -10 to +50 °C. |
| Data Ports: | IrDA 1.0, USB, and RS232 (via optional adapter cable). |
| Power Supply: | 4 AA batteries or optional power adapter. |
| Display: | 160 x 160 pixel backlit LCD. |
| Interface: | Bluetooth, WiFi, SD card. |
| Dimensions | Base unit: 153 mm × 89 mm × 32 mm. Sensor: Diameter 25 mm × Length 60 mm. |
| Weight | Base unit with batteries: 310 g. Sensor: 80 g. |
| Shipping Weight: | 4 kg (8 lbs). |
| Packaging Dimensions: | 46 × 38 × 13 cm (18 × 15 × 5 inches). |
