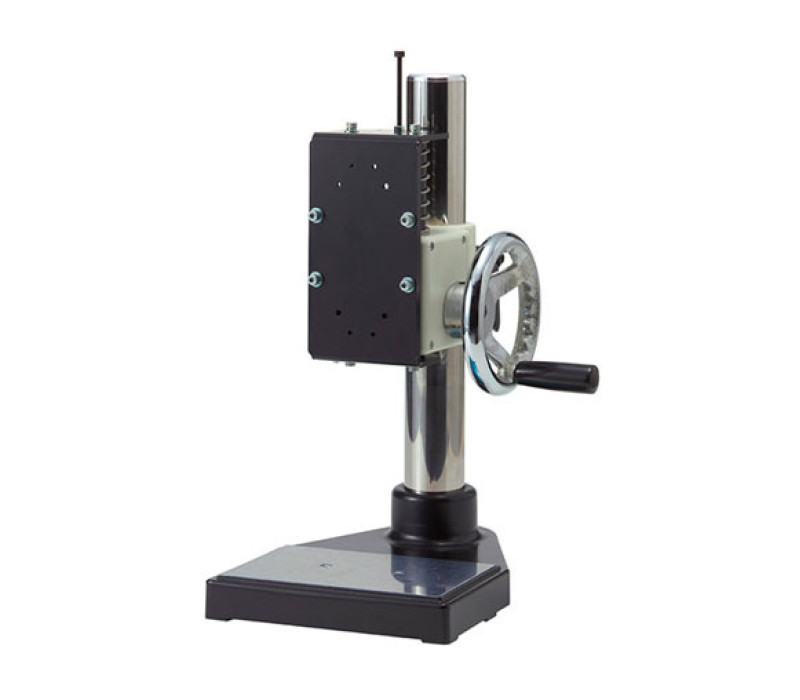

SVH-1000N Vertical Hand Wheel Test Stand
Discover the SVH-1000N from Checkline, a vertical hand wheel test stand that offers precise control for tension and compression tests. This model is ideal for applications requiring a consistent operational speed and maximum gauge control, perfect for repeatable and accurate tests.
Key Features:
- Precise Control: The hand wheel design allows for detailed and consistent control, crucial for tests that require fine and precise adjustments.
- Dual Functionality: Capable of performing both tension and compression tests, enhancing the versatility of the equipment.
- Digital Distance Meter: Equipped with an optional digital distance meter for more precise and detailed measurements.
Key Benefits:
- Measurement Versatility: Its ability to adapt to various types of tests makes the SVH-1000N an invaluable tool in any testing environment.
- Ease of Use: The design allows for easy sample changes between tests, optimising operation times and improving productivity.
- Rugged Design: Built to last, the SVH-1000N is perfect for continuous use in demanding industrial environments.
Contact us for more information on how the SVH-1000N can facilitate your force measurement processes and enhance your testing operations.
Features
- Hand wheel Movement: Each rotation of the handwheel moves the gauge approximately 3 mm, allowing for fine adjustments during testing.
- Rotation Capability: The unique column design allows the base to rotate 180 degrees, offering an unrestricted workspace when mounting the stand on the edge of a workbench.
- Adaptability: Compatible with a wide range of dynamometers, and can be adapted with the AP-002 adapter plate to mount other models of dynamometers.
SVH-1000N can be rotated 180 degrees around the column axis so for use without the base interfering on the underside. When located at the edge of workbench, the available working area is unlimited
Dimensions
SVH-1000N Dimensions
All dimensions are in mm and (inch)
Related Products
PS Mechanical force gauge for accurate measurements
- High accuracy mechanical gauge with ± 0.1 % full scale
- Easy to use
- Peak Force Hold function captures transient values and peaks
More details
DST Digital Force Gauge with 30,000 / sec sampling rate
- Ergonomic, durable, heavy-duty metal construction
- 30,000/sec sampling rate
- Backlit LCD reversible display with user-friendly menus
More details
ZT Digital Force Gauge with Luminescent EL Display
- Luminescent display is highly visible in dark locations
- Capacity up to 5000 N/Kg (push/pull)
- kgf, lbf, and N units are selectable
More details
Accessories
Category Force Gauge Accessories
Large assortment of grips, attachments and other accessories for analog and digital force gauges.
More details
Specifications
| Capacity: | 1000 N |
| Stroke: | 60 mm |
| Travel: | 3 mm per wheel rotation |
| Resolution: | 0.01 mm |
| Accuracy: | 0.1% or 0,1 mm whichever is greater |
| Display: | Push button for inch/mm, zero set and on/off |
