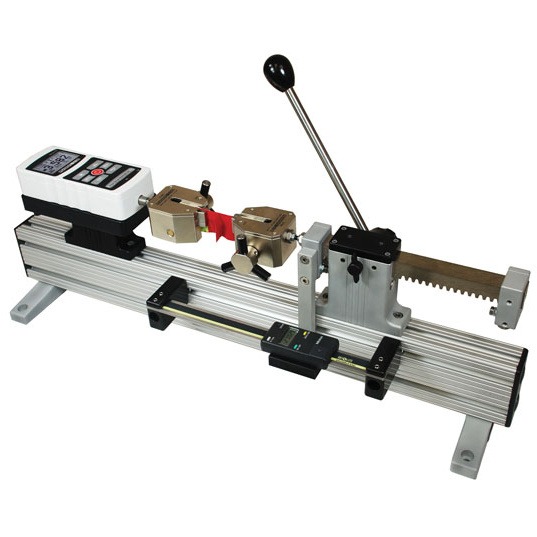

TSA750H Manual test stand
The TSA750H from Checkline is a manual force test stand notable for its capacity to handle up to 3.3 kN (3300 N), ideal for rapid tensile and compression tests. With robust aluminium components, this stand is perfect for both production floor and laboratory environments.
Key Features:
- Efficient Design: Equipped with a large handwheel for precise movement adjustment, ensuring accurate and repeatable tests.
- Durable Construction: Built to withstand heavy use without compromising precision.
Special Features:
- Flexible Configuration: Available in both horizontal and vertical versions, adaptable to various testing needs.
- Compatible Accessories: Uses Mark-10 force gauges and other clamping devices, allowing for complete customization of the testing system.
If you need more information on how the TSA750H can enhance your testing processes, contact us.
Features
- Compatible with all Mark-10 force gauges, accessories and grips
- Loading lever can be positioned in 30° increments for ease of operation
- Mounting holes for bench or wall mounting
- Adjustable travel stops
- Precision ground rack and pinion mechanism
- Adjustable wear plates for smooth, precise motion
- Optional digital travel display
- Friction brake

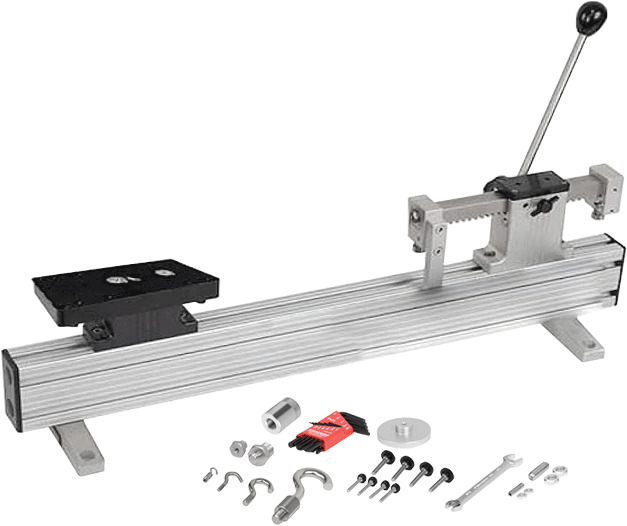

Included accessories:
- G1009 compression plate, 2” dia.
- G1028 small hook
- G1030 thread adapter, 5/16-18M to #10-32F
- G1035 large hook
- G1038 medium hook
- G1041 thread adapter, 5/16-18M to #1/2-20M
- G1042 extra large hook
- G1091 thread coupler, 1/2-20F, 1/2-20F
- 5/16-18 Stud with jam nuts
- #10-32 stud with jam nuts
- Wrench 5/16-3/8
- 2 Mounting legs with hardware
- Additional column cap with hardware
- 4 Thumb screw for force gauges with 0.12 - 500 lbF capacities
- 4 Thumb screw for force gauges with 1,000 - 2,000 lbF capacities
- Allen wrench set
Optional available
- Digital travel display for TSA/TSAH
- Horizontal/wall mounting kit for TSA/TSC
| Model | Force capacity | Maximum test travel | Loading method | Travel rate | Maximum, sample clearance |
|---|---|---|---|---|---|
| ES05 | 50N | 229mm | Spring lever | 25.4mm per lever turn | 229mm |
| ES10 | 500N | 229mm | Spring lever | 26.7mm per lever turn | 229mm |
| ES20 | 500N | 229mm | Upper manual wheel | 1.5mm per wheel turn | 229mm |
| ES30 | 1000N | 330mm | Side manual wheel | 1.3mm per wheel turn | 356mm |
| TSA750(H) | 3750N | 95mm (with travel stops) 152mm (without travel stops) | Rack and pinion lever, adjustable in 30° increments | 76.2mm per lever turn | Vertical: 267mm Horizontal: 368mm |
| TSB100 | 500N | 95mm (with travel stops) 152mm (without travel stops) | Rack and pinion lever, adjustable in 30° increments | 76.2mm per lever turn | 330mm |
| TSC1000(H) | 5000N | 89mm | Inline manual wheel | 2.5mm per wheel turn | Vertical: 254mm Horizontal: 330mm |
| TSF(H) | 5000N | 102mm | Side manual wheel | 0.34mm per wheel turn | Vertical: 356mm Horizontal: 459mm |
| - Maximum test travel and/or free space depend on the grips or accessories used during testing. The dimensions specified are without grips or accessories. - Column extensions available for all models except ES05, ES10, and ES20. - Models marked with (H) are available in both vertical and horizontal versions. |
|||||
Dimensions
Related Products
TSA750 hand lever operated horizontal or vertical force test stand
- Precision ground rack and pinion mechanism
- Adjustable wear plates for smooth, precise motion
More details
Series-3 Digital Force Gauge
- High-speed 2.000 Hz sampling rate
- USB data output of continuous or individual data points
More details
Series-4 Advanced Digital Force Gauges
- High-speed 3.000 Hz sampling rate
- USB, RS-232, Mitutoyo, and analog outputs
More details
Series-5 Advanced Digital Force Gauge
- ±0,1% accuracy
- High-speed 7.000 Hz peak sampling rate
- 1.000-point data memory with statistics and outputs
More details
Accessories
AC1004 Mounting Kit for 5I, 3I or TT03 to TS-Series Test Stands
- Mounting Kit for 5I, 3I or TT03 to TS-Series Test Stands
More details
Specifications
| Load capacity: | 3.3 kN |
| Maximum travel: | 152 mm, 69.85 with stops |
| Dimensions: | 622 mm x 152 mm x 178 mm |
| Travel display: | Optional |
| Loading method/rate: | Rack & pinion / 76mm per rev. |
| Horizontal mount: | Yes |
| Weight: | 5.9 kg |
