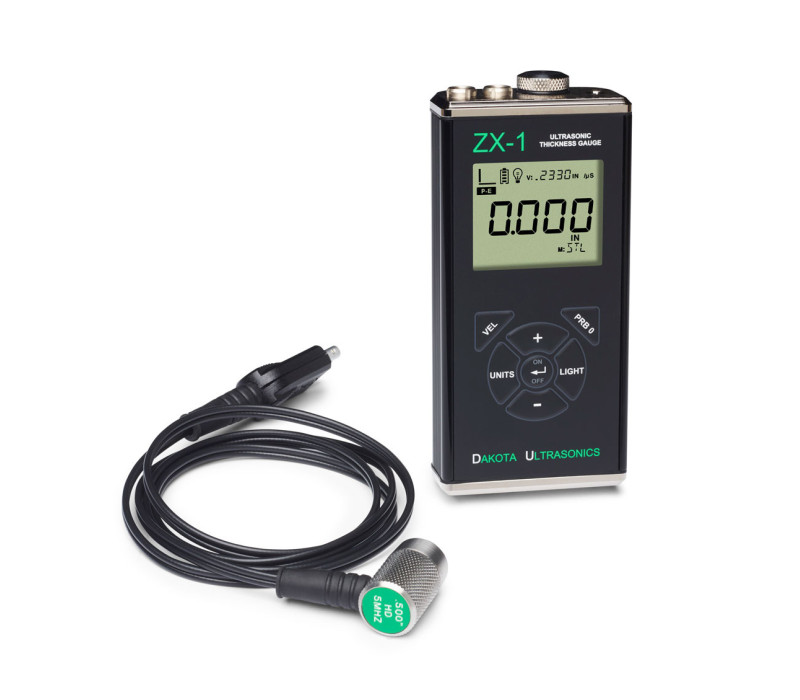

Dakota ZX-1 Ultrasonic Thickness Gauge
Precision and Durability
Discover the Dakota ZX-1 at Checkline, an ultrasonic thickness gauge that combines cutting-edge technology with ease of use, ideal for measuring the thickness of materials in industrial environments. Its robust design and ability to adjust sound speed make it perfect for daily use across a wide range of materials.
Key Features:
- Extensive Measuring Range: From 0.63 mm to 914.4 mm, with a resolution of 0.01 mm, it allows measurements from steel to hard plastics, making this gauge an essential tool in any work environment.
- Flexible Calibration: Adjusts the sound speed from 305 to 18,542 meters per second to suit different materials and achieve precise measurements.
- Rugged Construction: Its extruded aluminium housing and impact-resistant design are built for the toughest environments.
- Ease of Use: Thanks to its intuitive interface and high-visibility LCD screen, setting and reading measurements is simple and quick, even in low-light conditions.
Benefits of the ZX-1:
- Guaranteed Precision: Includes a NIST-traceable calibration certificate, ensuring accurate and reliable measurements.
- Proven Durability: With a limited warranty of 5 years, it offers peace of mind and confidence in its long-term performance.
- Adaptability: Capable of measuring in various environments and surfaces thanks to its optional specialised probes, from hard-to-reach areas to materials with complex shapes.
Ideal for professionals who require a reliable tool for the inspection of pipes, tanks, and various structures, the ZX-1 from Dakota Ultrasonics ensures that your materials meet safety and quality standards.
For more information on how the Dakota ZX-1 can be an essential part of your measuring tools, do not hesitate to contact us. We are here to help you select the best configuration for your specific needs.
Features
- Measuring range:
1.00 - 199.9 mm (with standard probe) - 0.63 - 914,4 mm (depending on probe and material) - Resolution of 0.01 mm
- Measuring unit switchable between mm and inch
- High visibility LCD Display is readable in all lighting conditions and temps as low -30 °C
- Selectable Backlight ON/OFF/AUTO
- Includes NIST Traceable Calibration Certificate
- The probe is waterproof and can be submerged in water
- Impact-resistant and environmentally sealed (IP 65) extruded aluminum housing
- 5 Year Warranty
Zeroing:
Automatic or manual zeroing of the probe.
Probe diameter:
Specify the probe diameter for increased linearity.
Differential mode:
Returns the ± difference from an entered nominal value.
Velocity Settings:
Adjustable on keypad
Alarm Mode:
Adjustable maximum and minimum limits. Exceeding the limit warns a visual and audible alarm.
 | Minimum Radius for Convex Surfaces | 8.89 mm |
| Minimum Radius for Concave Surfaces | 76.2 mm | |
 | Minimum Headroom | 25.0 mm |
 | Minimum Sample Diameter | 3.8 mm |
 | Minimum Substrate Thickness - F | - |
| Minimum Substrate Thickness - NFe | - |
Complete Kit
The ZX-1 is delivered in a complete kit in a foam-fitted carrying case with the measurement gauge, probe, 120ml bottle of coupling fluid, 2 AA batteries, NIST-Traceable calibration certificate and operating instruction manual.
Accessories
CF-AN Coupling Fluid
- Used to create an ultrasonic coupling between the probe and material to be measured
- Available in different volumes - 125ml / 250ml / 500ml / 1ltr / 5ltr / 25ltr
More details
Category Ultrasonic Thickness Gauge Accessories
Explore essential accessories to boost the functionality and versatility of ultrasonic thickness gauges in various settings.
More details
Specifications
| Total Measuring Range (steel): | 0.63 - 914.4 mm (depending on material and probe type) |
| Measuring Range (Steel): | 1.00-199.9 mm (with standard probe T-102-2000) |
| Resolution: | 0.01 mm |
| Measuring Mode: | Pulse-Echo (P-E) |
| Velocity: | 305 to 18,542 meters/sec |
| Probe (standard): | 1/4", 5 MHz Dual Element Transducer, actual wearface is 5/8" (17mm), p/n T-102-2000 |
| Probes (optional): | 1 to 10 MHz, 3/16" up to 1 inch (custom probes available) |
| Cable: | 1.2m (4ft.) waterproof cable with non-polarized, quick-disconnect connectors |
| Display: | Large LCD display with 4.5 digits each 1.3 cm high -Adjustable backlight -Division into individual segments to ensure clear reproduction of advanced information |
| Display refresh rate: | 10 Hz (10 updates/sec) |
| Temp. Limits: | Ambient: -30 to 75°C Material: -20 to 100°C High temperature probes available |
| Battery Type: | 2x AA batteries (rechargeable batteries can be used) |
| Battery Life: | 45 hours continuous use |
| Housing: | Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed) |
| Housing Rating: | IP65 |
| Weight: | 308 grams |
| Pulse Repetition Frequency (PRF): | 200 Hz (200 pulses/sec) |
| Dimensions: | 63.5 x 131.3 x 31.5 mm |
| Certifications: | NIST Traceable |
| Warranty: | Device: 5 Years Probes: 90 Days |
