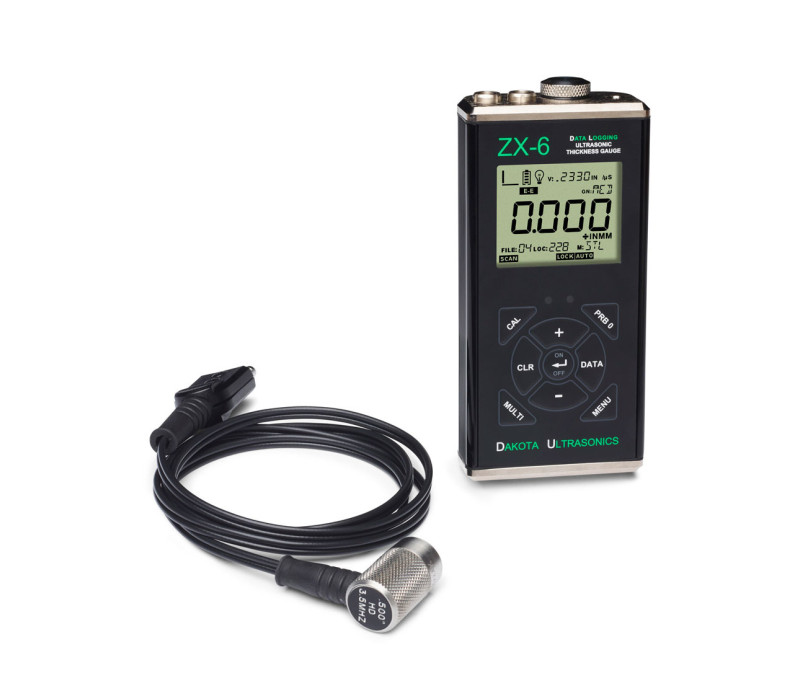

Dakota ZX-6DL Ultrasonic Wall Thickness Gauge
Thru-Paint Ultrasonic Wall Thickness Gauge with Data Memory and USB Output
Discover the advanced Dakota ZX-6DL, an ultrasonic wall thickness gauge that allows you to accurately assess the wall thickness and degree of corrosion across a wide range of materials. This equipment is specially designed for use in industrial environments, where accuracy and efficiency in measurement are crucial.
Main Features:
- High Performance: Capable of measuring from one side all metals, ceramics, glass, and most hard plastics.
- Integrated Memory: Stores up to 10,000 measurement values and allows for up to 250 measurements per record, divided into up to 40 independent batches, facilitating the management of large data volumes.
Advanced Features:
- USB Output: Data can easily be exported in ".csv" format for analysis and reporting, or viewed using the free DakVIEW4 software.
- Robust Design: With a waterproof probe and an impact-resistant and sealed (IP65) gauge, the ZX-6DL is built to withstand the harshest conditions.
Technical Specifications:
- Thru-Paint Mode: Allows measurements through coatings without the need to remove the surface layer.
- Wide Range of Transducers: Available with several hi-damped dual-element transducers to suit different applications and materials.
- Hi-Damped Transmitters:
- 3/16" diameter, 5.0 MHz (T-101-2700): Ideal for measurements through paint on thinner materials.
- 3/16" diameter, 7.5 MHz (T-101-3700): Suitable for accurate measurements through thick layers of paint.
- 1/4" diameter, 5.0 MHz (T-102-2700): Standard probe that balances penetration and resolution for most painting applications.
- 1/4" diameter, 7.5 MHz (T-102-3700): Enhances accuracy in complex or multi-layer coatings.
- 1/2" diameter, 5.0 MHz (T-104-2700) and 3.5 MHz (T-104-9700): These transmitters are excellent for applications requiring measurements through heavy coatings or on large surfaces.
- Hi-Damped Transmitters:
Diverse Measurement Modes:
- Pulse-Echo Mode (PE): Ideal for detecting pits and flaws with a range from 0.63 to 914.4 mm.
- Echo-Echo Mode (EE): Perfect for working through paint and coatings, with a range from 2.54 to 25.40 mm.
The ZX-6DL is the ideal tool for professionals who require reliable and accurate equipment for critical inspection and maintenance tasks.
Contact us to discover how the Dakota ZX-6DL ultrasonic thickness gauge can transform your measurement operations, offering precision and efficiency with every use.
Features
- Total Measuring Range: PE Mode 0.63 to 914.4 mm/EE Mode 2.54 to 25.40 mm
- Resolution of 0.01 mm
- Measuring unit switchable between mm and inch
- Using the standard probe T-102-2700, the gauge will read thru 0.040" coating thickness (1 mm)
- The probe is waterproof and can be immersed in water
- Selectable Backlight ON/OFF/AUTO
- Using the standard probe T-102-2700, the gauge will read thru 0.040" coating thickness (1 mm)
- High visibility LCD Display is readable in all lighting conditions and temps as low -30 °C
- Impact-resistant and environmentally sealed (IP 65) extruded aluminum housing
- 5 Year Warranty, CE-Certified and Made in USA
 | Minimum Radius for Convex Surfaces | 8.89 mm |
| Minimum Radius for Concave Surfaces | 76.2 mm | |
 | Minimum Headroom | 25.0 mm |
 | Minimum Sample Diameter | 3.8 mm |
 | Minimum Substrate Thickness - F | na |
| Minimum Substrate Thickness - NFe | na |
Complete Kit
The ZX-6DL is delivered in complete kit in a foam-fitted suitcase including:
- gauge
- probe
- 120 ml bottle of coupling fluid
- 2 AA batteries
- NIST-Traceable Calibration Certificate
- Operating Instruction Manual
Accessories
Category Ultrasonic Thickness Gauge Accessories
Explore essential accessories to boost the functionality and versatility of ultrasonic thickness gauges in various settings.
More details
Specifications
| Total measuring range : | Pulse-Echo Mode (Pit & Flaw Detection) - PE Mode 0.63 to 914.4 mm Echo-Echo Mode (Through Paint & Coatings) - EE Mode2.54 to 25.40 mm (Acutal range depends upon probe selected) - five probes to choose from |
| Measuring range on steel: | Measuring Range on Steel (with standard T-102-2700 probe) Pulse-Echo Mode (Pit & Flaw Detection) - PE Mode 1.00 to 199.9mm Echo-Echo Mode (Through Paint & Coatings) - EE Mode 2.54 to 25.40 mm |
| Resolution: | 0.01 mm |
| Measuring Mode: | Pulse-Echo (P-E), Echo-Echo (E-E, Thru-Paint Mode), Scan, Differential, Alarm and VX-velocity |
| Velocity Range: | 305 to 18,542 meters/sec |
| Probe (standard): | 1/4" 5 MHz Hi-Damp dual element transmitter, actual wear surface is 17 mm (5/8"), part no. T-102-2700 |
| Probes (optional): | 1 to 10 MHz, 3/16" up to 1 inch (custom probes available) |
| LCD Display: | Multi-function 7 segment 4.5 digit liquid crystal display with 0.500" digit height. Two 0.125 in14 segment fields for labels and values, and one 7 segment field for labels and values. Additional icons to indicate features and modes |
| Display Update Rate: | 10 Hz (10 updates/sec) |
| Pulse Repetition Frequency (PRF): | 200 Hz (200 pulses/sec) |
| Temperature Limits: | Ambient: -30 to 75° C Material: -20 to 100° C |
| Housing Rating: | IP65 |
| Housing: | Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed) |
| Certification: | NIST Traceable |
| Dimensions: | 63.5 x 131.3 x 31.5 mm |
| Battery Type: | 2x AA batteries (rechargeable batteries can be used) |
| Battery Life: | 45h continuous use |
| Data output: | USB-C (plug-n-play, view files on PC which can be dragged and dropped) |
| Weight: | 308 grams |
| Guarantee: | Gauge: 5 Years Probes: 90 Days |
