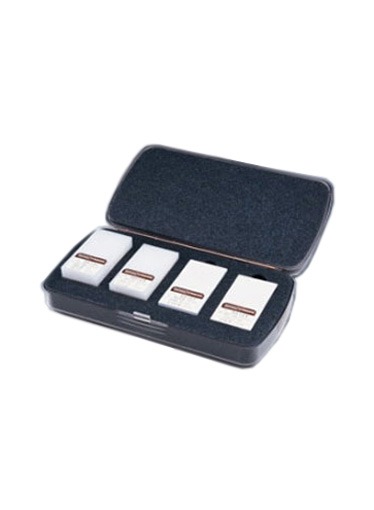

Certified polystyrene blocks are ideal for verifying the accuracy and operation of coating thickness gages and are an important component in fulfilling both ISO and in-house quality control requirements.
| Order Code | Ideal for | Approximate Thickness | Accuracy | |||
|---|---|---|---|---|---|---|
| Block 1 | Block 2 | Block 3 | Block 4 | |||
| STD-P1 | PosiTector 6000 FT, FTS, NTS, FNTS |
375 um 15mils |
2 mm 80 mils |
4.5 mm 185 mils |
6.5 mm 250 mils |
±(2.5 um + 0.05% of thickness) ± {0.1 mil + 0.05% of thickness) |
| STD-P2 | PosiTector 6000 FHS, NHS, EOC |
2.5 mm 100mils |
6.5 mm 250 mils |
13 mm 500 mils |
19 mm 750 mils |
|
| STD-P3 | PosiTector 100 C | 375 mm 15mils |
1.5 mm 60 mils |
2.5 mm 100 mils |
4.5 mm 185 mils |
|
| STD-P4 | PosiTector 100 D | 1.5 mm 60mils |
2.5 mm 100 mils |
4.5 mm 185 mils |
6.5 mm 250 mils |
|
| STD-P5 | PosiTector 6000 FKS, NKS |
1.5 mm 60 mils |
2.5 mm 100 mils |
6.5 mm 250 mils |
12 mm 480 mils |
|
| STD-P6 | PosiTector 200 C | 375 um 15 mils |
1.5 mm 60 mils |
2.5 mm 100 mils |
3 mm 125 mils |
|
