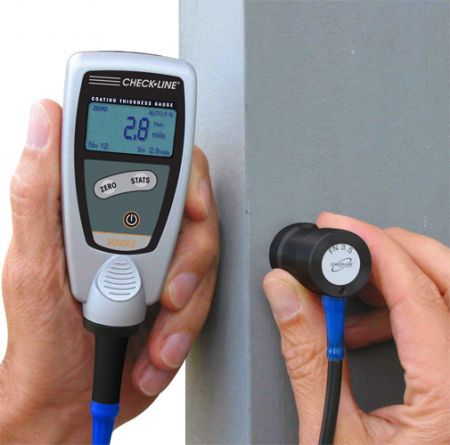

3000EZ-E Series Coating Thickness Gauge with External Probe


Made in Germany2 Models Available:
DCF-3000EZ-E - Ferrous Only Model
DCFN-3000EZ-E - Combination Ferrous & Non-Ferrous Model

Range Ferrous: 0-3500 µm (0-140 mils)
Range Non-Ferrous: 0-3000 µm (0-120 mils)

With coating thickness gauges designed for measurement on ferrous metals, non-magnetic coatings such as varnish, paint, enamel, chrome, copper, zinc, etc. can be measured on steel and iron (magnetic induction method).

Coating thickness gauges designed for measurement on non-ferrous metals can measure all electrically insulated coatings such as varnish, paint, anodizing coatings on non-ferrous metals & stainless steel (eddy-current method).

The 3000EZ-E Series Coating Thickness Gauge provides fast, non-destructive, accurate coating measurements on steel and non-ferrous metals. Designed to accommodate a wide range of laboratory and field applications and manufactured to international quality standards, the 3000EZ-E Series will provide years of trouble-free use.


Features
  • Equipped with External Probe
  • External dual sensor with hard metal pole tip
  • Manufacturer's Certificate Included
  • Large back-lit display
  • Live statistics display for up to 99 readings
  • Keypad-selectable English or metric units

Accessories

Cps Certified Shim Set


  • Calibration Foils for Coating Thickness Gauges

More details

Cps Certified Shim Set 126033

Measuring Limits
Minimum Radius for Convex Surfaces Minimum Radius for Convex Surfaces 0.2" (5 mm)
Minimum Radius for Concave Surfaces 2" (50mm)
Minimum Radius for Concave Surfaces Minimum Headroom 2" (50 mm)
Minimum Sample Diameter Minimum Sample Diameter 0.4" (10 mm)
Minimum Substrate Thickness - F Minimum Substrate Thickness - F 20 mils (0.5 mm)
Minimum Substrate Thickness - NFe 2 mils (50 µm)

Resolution Table
Microns (µm)
0 - 999 µm 1 µm
1.000 - 2.498 mm 0.002 mm
2.500 - 3.500 mm 0.005 mm

Mils
0 - 99.9 mils 0.1 mils
100.0 - 140.0 mils 0.2 mils

Specifications
Gauge versions:DCF-3000EZ-E
Coating thickness on ferrous metals
DCFN-3000EZ-E
Coating thickness on ferrous & non-ferrous metals
Range:Ferrous: 0 - 3500 µm (0 - 140.00 mils)
Non-Ferrous: 0 - 3000 µm (0 - 120.00 mils)
Accuracy:3 µm (±0.1 mils) or 3% of reading, whichever is greater
Resolution:Refer to table above
Display:Back-lit, 4-digit alphanumeric
Min. Measuring Area:10 mm x 10 mm (0,4" x 0,4")
Min. Curvature Radius:concave: 50 mm (2")
convex: 5 mm (0.2")
Calibration:Factory calibration, zero calibration
Statistics Program:Number of readings, mean value, standard deviation, maximum and minimum reading of max. 99 readings
Operating Temp:0 °C to 50 °C (32 °F to 122 °F)
Surface Temp:-15 °C to 60 °C (5 °F to 140 °F)
Memory Temp:-20°C to 60 °C
Power:2 AAA, 1.5 V
Dimensions:110 mm x 50 mm x 25 mm (4.3" x 2" x 1")
Weight:90 g (3.2 oz)
Protection Class:IP 52 (proof against dust and dripping water)
Standards:DIN, ISO, ASTM, BS
Warranty:1 year
Calibration CertificateIncluded

Complete Kit
The 3000EZ-E Series is supplied as a complete kit with:
- 3000EZ-E coating thickness gauge
- zero-plate
- plastic test shim
- 2 AA batteries
- soft carrying pouch
- instruction manual
- manufacturer´s certificate

The DCF-3000EZ-E is supplied with a
ferrous zero-plate
The DCFN-3000EZ-E is supplied with a
ferrous and a non-ferrous zero-plate


Related Products

Cic-Coating Calibration Coating Thickness Gauge


  • Easy planning of calibration
  • Short turnaround
  • Possibility to adjust and repair
  • In accordance with DIN EN ISO 2178, 2360, 2808 and meets or exceeds the indicated accuracy.

More details

Cic-Coating Calibration Coating Thickness Gauge

Buy Now
Products

Product
Price
Quantity
126879
DCF-3000EZ-E Coating Thickness Gauge
€ 649,00
126880
DCFN-3000EZ-E Coating Thickness Gauge
€ 795,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
